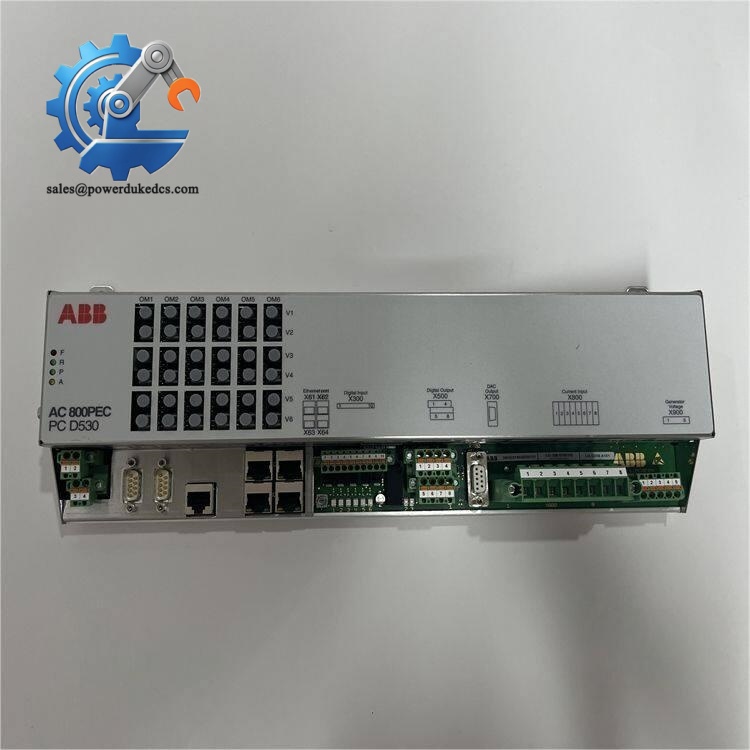

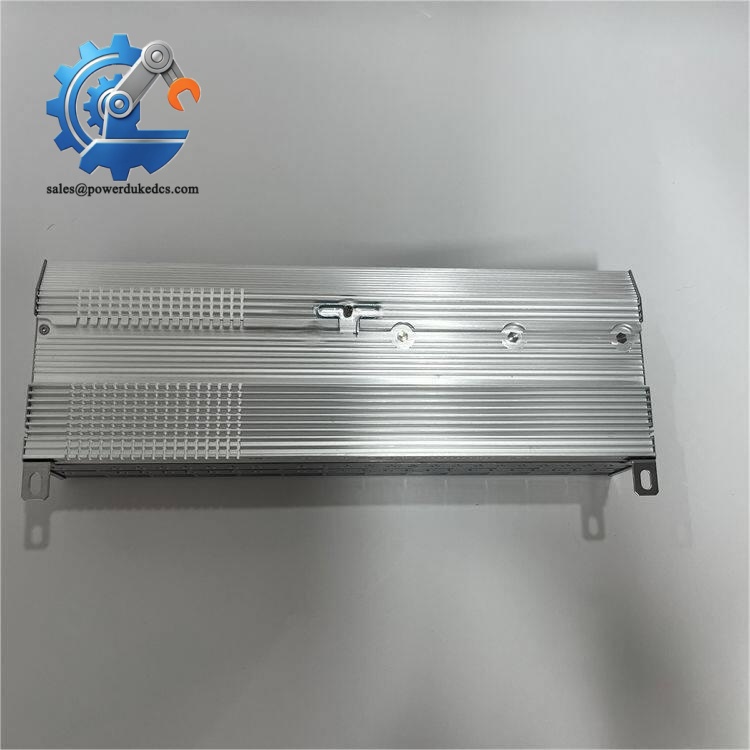

- ABB 3BHE041343R0102 | Genuine PCD530A102 Communication Measurement Control Board
Meta Description
Product Core Brief
- Model: PCD530A102, Order Code: 3BHE041343R0102
- Brand: ABB
- Series: PC D530 Series CCM Unit
- Core Function: Process measurement signals and manage internal & external communication for excitation control systems
- Type: Communication Control & Measurement (CCM) Controller Board
- Key Specs: 24 V DC supply; Multiple terminal I/O; Built-in Ethernet communication port; Dimensions 380 × 73.5 × 142 mm; Net weight 1.54 kg
- Condition: New surplus available; tested used units optional; ⚠️ Original production discontinued, limited inventory
Product Introduction
Key Technical Specifications
| Parameter | Details |
|---|---|
| Full Order Code | 3BHE041343R0102 |
| Type Name | PC D530 A102 CCM (Communication Control & Measurement) |
| Supply Voltage | 24 V DC |
| Communication Interfaces | Ethernet port, terminal block hardwired interfaces |
| Mechanical Size | 380 mm × 73.5 mm × 142 mm |
| Net Weight | 1.54 kg |
| Installation | Cabinet rack mounting |
| Main Application | ABB generator excitation control systems |
| Environmental Range | Standard industrial indoor cabinet environment (-25 °C ~ +60 °C) |
QC Testing Standard (Transparent Inspection Flow)
- Incoming Receiving Check
Verify serial number traceability; inspect enclosure for corrosion, scratches or discoloration; cross-check terminal connectors for integrity.
- Live Bench Functional Test
Mount module on matching ABB excitation test rack; power on to confirm indicator light status; complete communication handshake test; simulate measurement input signals to verify sampling accuracy. Full test records can be provided as photos or video upon request.
- Electrical Safety Test
Insulation resistance test at 500 V DC; check ground continuity.
- Firmware Recording
Read and archive original firmware revision; record DIP switch / jumper positions before packaging.
- Final Packing & QC Label
Seal with anti-static bag, protected by bubble wrap. Attach QC Passed sticker with test date.
Field Pitfall Guide for Replacement
❗ Firmware revision mismatch is the most frequent failure cause.
We met one case where maintenance staff installed a module with newer firmware. The excitation system kept triggering communication faults for over 36 hours until firmware rollback was completed. Always record firmware version from your original module before ordering.
❗ Photograph all DIP switches and terminal wiring before disassembly.
Default factory settings do not match most on-site excitation parameter configurations. Missing the original switch layout leads to repeated debugging.
❗ Confirm terminal connector compatibility.
Some variant batches use slightly different pin definitions. Cross-check the official wiring diagram instead of relying on experience.
❗ Strict ESD protection required.
This board carries sensitive measurement circuits. Static discharge can damage sampling channels without obvious visual damage. Wear anti-static wristband during handling.
Quick Conclusion
- Ideal spare part for maintenance of ABB generator excitation equipment
- Suitable for power plant, co-generation and industrial power generation projects
- Not recommended for new project design (original production discontinued)
- Confirm firmware version and hardware revision before placing purchase orders
ABB 3BHE041343R0102
FAQ
Q1: Can PCD530A102 directly replace other PC D530 variants?
A: Hardware outline is similar, but firmware and internal logic differ. Confirm part number suffix and firmware version before replacement.
Q2: What warranty can be offered for stocked modules?
A: All tested units carry standard 12-month warranty, based on successful power-on acceptance.
Q3: Can you provide test reports before shipment?
A: Yes. We can share test photos, indicator status records and communication test screenshots for verification.
