Name: ABB 216VC62a-P1000 HESG324442R112 | ABB Power Syste..
SKU: ABB 216VC62a-P1000 HESG324442R112
Price: 7209.00 USD
Availability: InStock

Description

Meta Description

ABB 216VC62a-P1000 (HESG324442R112) is a high-speed DSP processor unit built for ABB generator excitation and power protection systems. It handles real-time signal sampling, protection logic and bus communication. New surplus units available, complete functional testing performed before shipment.

Product Core Brief

Model: 216VC62a-P1000 (HESG324442R112)
Brand: ABB
Series: Power System Protection & Excitation Control Boards
Core Function: Real-time digital signal processing and protection logic execution
Type: DSP Processor Unit
Key Specs: High-speed sampling, supports SPA Bus / IBB interbay bus, VME form factor
Condition: New Surplus, non-refurbished

⚠️ Original production discontinued, available stock quantity limited

Product Introduction

Fast signal response stands as the core requirement for generator protection and excitation control, and this processor unit delivers the needed computing capacity. The 216VC62a-P1000 HESG324442R112 serves as the main computing core inside ABB UNITROL excitation systems and substation protection assemblies. It samples analog signals, executes protection algorithms and exchanges data with other racks via system bus.

Its onboard DSP enables rapid fault judgment within millisecond ranges. Compared with older processor variants, this P1000 version expands usable logic capacity for complex generator control schemes. It operates widely on thermal power plants, hydropower units and industrial synchronous generator sets.

Key Technical Specifications

Parameter	Value
Full Part Number	216VC62a-P1000 / HESG324442R112
Hardware Form Factor	VME Standard Board
Core Function	Real-time DSP computing, protection logic, interbay bus communication
Supported Buses	SPA Bus, IBB Interbay Bus
Operating Temperature	-10 °C ~ +60 °C
Mounting Method	Rack chassis plug-in installation
Primary Compatible Systems	ABB UNITROL Generator Excitation Equipment, Power Protection Cabinets
Power Consumption	Approx. 12.5 W

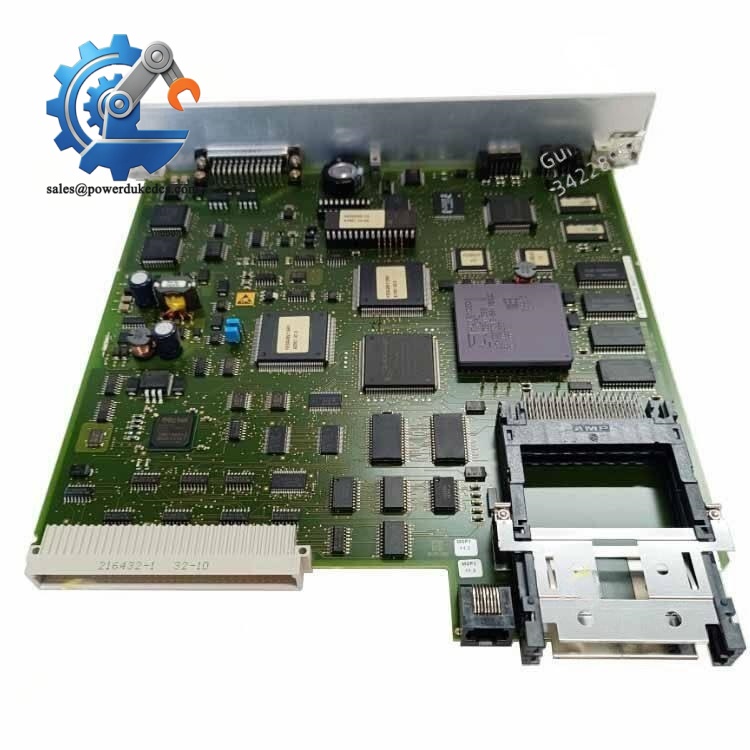

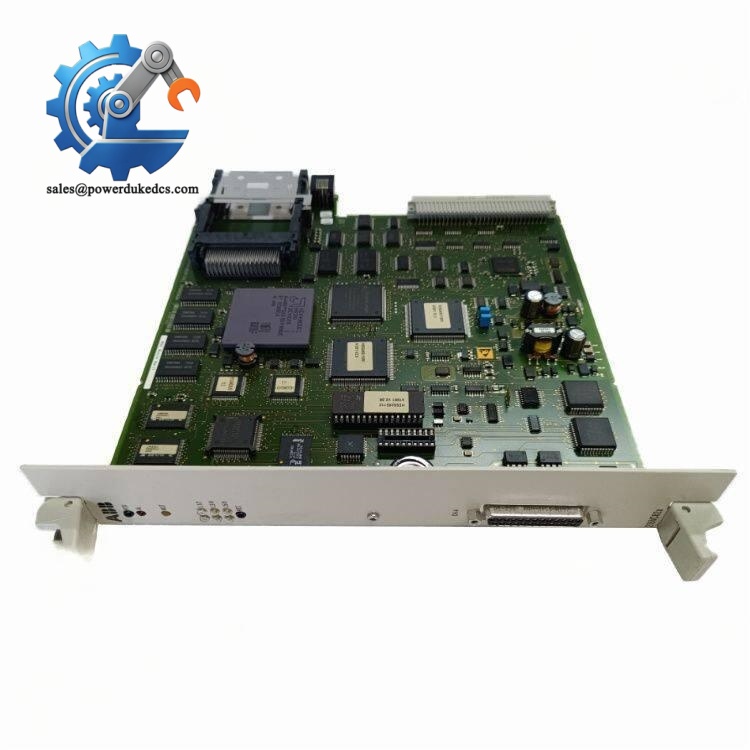

ABB 216VC62a-P1000 HESG324442R112

Quality Control Testing Procedure

Incoming Inspection & Trace Verification

Check serial labels and PCB surface thoroughly. Inspect for scratches, component discoloration, solder repair traces or corrosion. All original factory labels are recorded for traceability.
Live Functional Bench Test

Install the board onto dedicated power system simulation racks. Complete power-on self-test, bus communication handshake and continuous stability testing. Test photos and logs can be provided upon request.
Electrical Parameter Measurement

Use Fluke test instruments to carry out continuity check and insulation resistance testing. Confirm no hidden short-circuit risks on circuit tracks.
Hardware Configuration Record

Document hardware variant P1000. Capture photos of onboard jumpers and DIP switch layout as reference for field commissioning.
Final QC & Packing

Qualified boards are sealed inside anti-static bags, wrapped with bubble film and packed into export cartons. Each unit carries a signed QC Passed label marked with test date.

Field Installation Pitfall Guide

❗ Variant mismatch triggers commissioning failures.

The suffix P1000 represents a specific hardware variant. Generic 216VC62a without P1000 marking may have different firmware and computing capacity. Always copy the full part number from the faulty unit before ordering.

❗ Bus terminal resistor configuration error.

The interbay communication bus only requires terminating resistors at the two physical endpoints. Misplacing resistors leads to signal reflection and intermittent communication dropouts.

❗ Save original configuration before replacement.

All protection setpoints and logic mapping reside on this processor board. Back up parameter files before removing the old module to avoid lengthy reconfiguration work.

❗ Strict ESD protection during handling.

High-density surface-mount chips on the PCB are sensitive to static discharge. Wear anti-static wristbands and work on an anti-static mat, especially in low-humidity environments.

Quick Conclusions

216VC62a-P1000 HESG324442R112 acts as the main DSP processor for ABB generator excitation and power protection systems.
The P1000 variant must be matched exactly; plain 216VC62a versions cannot guarantee direct plug-and-play replacement.
This board undertakes real-time signal processing and protection logic for synchronous generator control loops.
OEM manufacturing stopped; stock is limited new surplus inventory.
Pre-shipment full bench testing and supporting test documentation are available for every unit.

FAQ

Q1: Can standard 216VC62a replace the P1000 version directly?

A1: Direct replacement is not guaranteed. Hardware resource and default firmware differ. Modification or parameter rework may be necessary. Confirm full part number consistency.

Q2: Do you supply refurbished boards for this model?

A2: We prioritize new surplus stock. Refurbished units can be sourced separately and will be clearly labelled for transparency.

Q3: How long is the warranty period?

A3: Standard 12-month warranty starting from shipment date, subject to compliant installation and normal operating environment.
