Product Core Brief
- Model: 5SHY3545L0014, 3BHB013085R0001, 3BHE039203R0101, GVC736CE101
- Brand: ABB
- Series: 5SHY IGCT Power Semiconductor Series / GVC7 Gate Driver Series
- Core Function: Integrated power stack combining IGCT chip and gate driver for medium voltage power conversion
- Type: Complete IGCT Stack Assembly (IGCT Device + Gate Driver PCB)
- Key Specs: 4500V blocking voltage; Fiber-optic gate signal interface; Designed for liquid cooling
- Condition: New Surplus, non-refurbished
⚠️ Discontinued Original Production, limited inventory available
Product Introduction
Key Technical Specifications
| Parameter | Details |
|---|---|
| Full Part Codes | 5SHY3545L0014 / 3BHB013085R0001 (IGCT Device); 3BHE039203R0101 / GVC736CE101 (Gate Driver PCB) |
| Device Type | Asymmetric IGCT (Integrated Gate Commutated Thyristor) Stack Assembly |
| Rated Blocking Voltage | 4500 V |
| Control Interface | Fiber optic communication for gate trigger & fault feedback |
| Auxiliary Supply | 24 VDC for gate driver logic circuit |
| Cooling Requirement | Liquid cooling (water/glycol circuit) |
| Operating Junction Temp | -40°C ~ +125°C |
| Application Platform | ABB ACS6000 Medium Voltage Drives |
| Protection Features | Gate under-voltage monitoring, overcurrent detection, thermal fault reporting |
| Mounting Form | Integrated stack assembly, direct plug-in replacement |
| Weight | Approx. 2.6 kg per complete assembly |

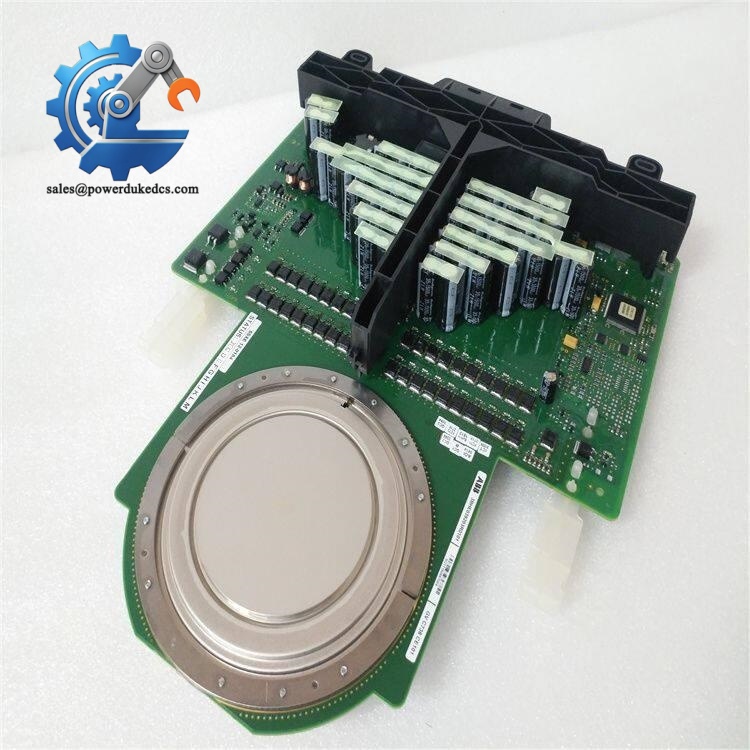

ABB 5SHY3545L0014 (3BHB013085R0001)
Applicable Industry & Equipment
- Medium voltage variable frequency drives: ABB ACS6000 series
- Mining main conveyors, large process compressors
- Cement plant kiln and grinding mill drives
- Metallurgy heavy rolling mill power converters
- Water pumping station large MV motor drives
- Static power conversion & FACTS auxiliary equipment
Advantages & Limitations
Advantages
- Pre-matched IGCT and gate driver, no on-site parameter calibration required
- Fiber-optic isolation eliminates high-voltage interference on control signals
- Low conduction loss cuts long-term energy consumption for 24/7 continuous operation
- Full assembly reduces spare part management workload compared to separate component procurement
Limitations
- Requires liquid cooling system; air cooling cannot meet thermal limits under full load
- Strict firmware/revision matching is mandatory for GVC736CE101; mismatched revisions cause communication failures
- Original manufacturing discontinued, lead time for new factory builds is extremely long
- ESD-sensitive; strict anti-static operation must be followed during installation
Common Replacement Pitfalls (Field Engineer Notes)
-
Revision mismatch risk
Many engineers only check the short model GVC736CE101 and ignore suffix R0101. Installing a different hardware revision will trigger persistent gate communication timeout faults. Always record the full part number from the existing stack before ordering.
I have witnessed one ACS6000 overhaul project that lost 36 hours of production because the replacement driver board carried a different hardware revision.
-
Cooling surface contamination
The IGCT base plate relies on uniform thermal contact. Dust, old thermal compound residue or scratches will create hotspots and trigger over-temperature trips within weeks after replacement. Clean the cooling base thoroughly before installation.
-
Fiber cable routing errors
Fiber-optic lines cannot bend below minimum bend radius. Sharp bending causes signal attenuation, random gate misfire alarms. Separate power wiring and fiber channels to avoid mechanical stress.
-
ESD damage risk
IGCT gate circuits are extremely sensitive to static electricity. Wear certified anti-static wristband connected to grounded chassis. One ungrounded technician can permanently damage the driver PCB during simple visual inspection.

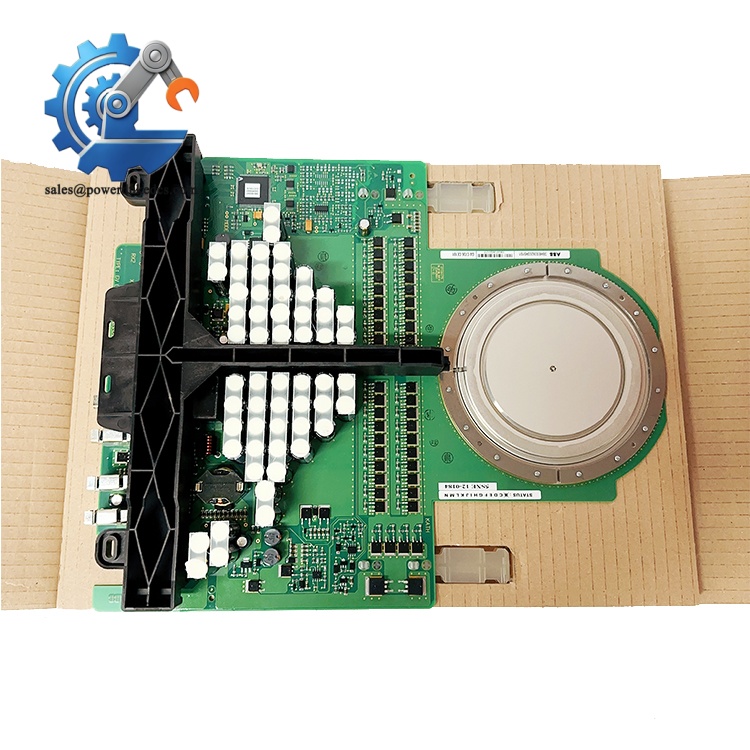

ABB 5SHY3545L0014 (3BHB013085R0001)
Quality Inspection Procedure Before Shipment
-
Inbound Verification
Cross-check all four part numbers against original labels; verify serial number traceability. Full visual inspection: no PCB corrosion, no crack on IGCT ceramic package, no swollen capacitors, complete original mounting hardware.
-
Live Bench Testing
Test platform: ABB ACS6000 simulation rack.
- 24V auxiliary power energization; verify all status LED indicators
- Fiber communication handshake test with main control unit
- Gate trigger pulse waveform capture
- Continuous 24-hour powered aging test, monitor PCB temperature stability
-
Electrical Parameter Testing
Insulation resistance test @ 500V DC; continuity check for all power terminals and signal terminals. All test data saved into a formal test report, photos or short test video can be provided upon client request.
-
Pre-delivery Packaging
Sealed inside anti-static shielding bag, wrapped with bubble foam, packed into export carton. QC Passed label with test date attached externally.
FAQ
Q: Can I install the GVC736CE101 driver separately without replacing the IGCT chip?
A: Technically possible, but not recommended. The stack is calibrated as one assembly. If only the driver fails, inspect IGCT gate leakage strictly before reuse.
Q: Does this assembly fit ACS800MV drives?
A: No. This stack targets ACS6000 platform only. Confirm your converter model number before purchase.
Q: What warranty coverage is offered?
A: 12-month functional warranty after delivery, valid when installed following official ABB maintenance guidelines. Damage caused by improper cooling, surge voltage or ESD is excluded.
Q: Is refurbished stock available besides new surplus?
A: We maintain limited new surplus inventory. Refurbished units are available on request, with separate test standards and shorter warranty terms.
