Name: ABB PP877 3BSE069272R2 | IP65 Front Industrial Touch...
SKU: ABB PP877 3BSE069272R2
Price: 9223.00 USD
Availability: InStock

Description

ABB PP877 3BSE069272R2 | IP65 Front Industrial Touch Panel for Process Automation

Meta Description

ABB PP877 (3BSE069272R2) is a 10.4-inch resistive touch operator panel from ABB Panel 800 series, compatible with System 800xA and Compact Product Suite. Equipped with Ethernet and multiple serial communication ports, every stocked unit undergoes complete functional testing for on-site maintenance and equipment retrofit.

Product Core Brief

Model: PP877 / 3BSE069272R2
Brand: ABB
Series: Panel 800
Core Function: Provide local monitoring and manual operation interface for DCS and automation control systems
Type: Industrial Touch HMI (Human Machine Interface)
Key Specs: 10.4″ 640×480 TFT; Resistive touch; 1 Ethernet + 4 serial communication channels

⚠️ Original production discontinued, limited surplus inventory

Condition: Tested surplus, non-refurbished, no repair traces

Product Introduction

Many mid-sized control cabinets require compact, reliable operator interfaces, and the ABB PP877 3BSE069272R2 fills this position within the Panel 800 lineup. This 10.4-inch touch panel works seamlessly with ABB System 800xA and Compact Product Suite, designed for panel mounting in process industry control rooms.

It adopts die-cast aluminum housing and LED-backlit TFT screen, supporting alarm management, trend curves and recipe storage. Compared with smaller 7-inch HMIs, it holds more process data on a single page. The abundant serial ports allow direct connection to field instruments and secondary drives without extra communication converters.

Key Technical Specifications

Parameter	Details
Full Part Number	PP877 / 3BSE069272R2
Display	10.4 inch TFT LED, 640 × 480 (4:3)
Touch Type	Resistive touch screen
Brightness	450 cd/m²
Processor	ARM9 400 MHz
Memory	128 MB RAM, 128 MB Flash storage
Communication	1 × Ethernet 10/100 Base-T; 2 × RS232; 2 × RS422/485
Power Input	24 VDC (18–32 VDC), typical power consumption 22 W
Protection Grade	Front IP65 / Rear IP20
Operating Temperature	-10 °C ~ +55 °C
Storage Temperature	-20 °C ~ +70 °C
Overall Dimensions	280 × 228 × 51 mm
Panel Cutout Size	262 × 209 mm
Programming Software	Panel Builder 800 V6.0 or newer
Mounting Method	Panel mount, VESA 75×75 bracket support

Quality Control Procedure

Incoming Source Verification

Check serial number records and exterior condition. Inspect screen surface, touch foil, housing and connectors for scratches, discoloration or impact damage. Confirm no signs of prior repair work.
Live Bench Function Test

We build a dedicated test environment matched with AC 800M controller. Every unit runs power-on inspection, touch calibration, Ethernet and serial communication test, and continuous 24-hour aging test. A formal test report will be generated after testing.
Electrical Characteristic Inspection

Check power input stability and ground continuity. All measurement work uses calibrated Fluke 115 multimeters. We complete 500V insulation resistance testing to confirm electrical safety.
Firmware & Configuration Backup

Read and record the installed system firmware version. We photograph default communication parameter settings for reference before shipment.
Final QC & Packaging

Qualified panels are wrapped with anti-static foam and packed into export cartons. Each unit attaches a dated QC Passed sticker. We can share test photos or video records upon request.

Field Pitfall Guide for Replacement

❗ Software project compatibility risk

I supported a water treatment plant HMI replacement case. Engineers imported projects developed for PP877K directly to PP877, triggering display layout disorder. Always verify panel model selection inside Panel Builder before downloading projects.

❗ Serial communication wiring error

This panel contains multiple RS485 channels. The 120 Ω terminal resistor must only be enabled at the two endpoints of each bus segment. Improper resistor setup leads to unstable signal transmission and intermittent communication dropouts.

❗ Touch calibration after installation

Transport vibration will shift touch coordinates. Never skip touch calibration after power-on. Operators will encounter inaccurate click feedback without this step.

❗ Power supply load evaluation

Calculate total power consumption of the cabinet before replacement. Leave a minimum 20% power margin to avoid undervoltage faults during peak operation.

❗ Strict ESD protection

Internal control chips are sensitive to electrostatic discharge. I have witnessed unprotected operation causing permanent hardware damage. Wear anti-static wristbands during installation, especially in low humidity workshops.

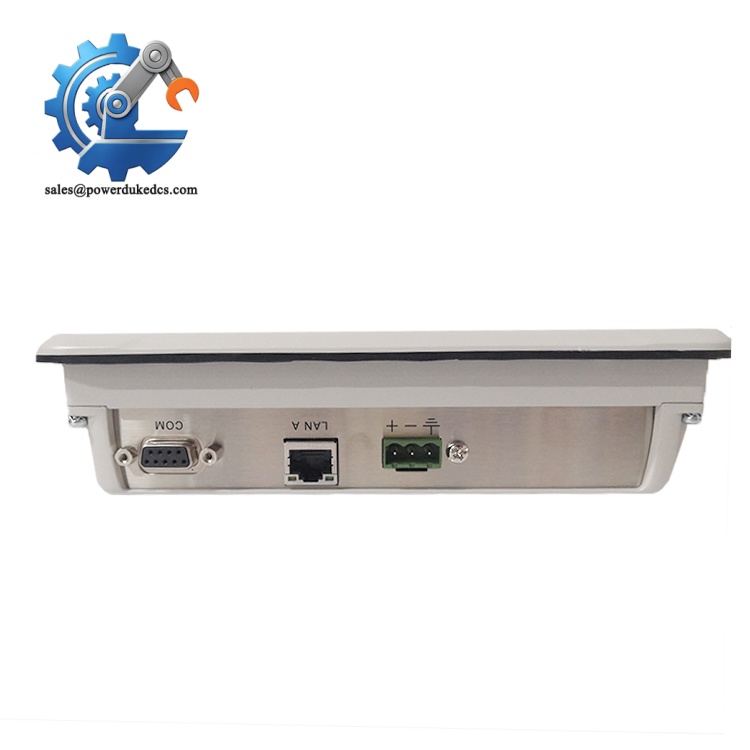

ABB PP877 3BSE0692ABB PP877 3BSE069272R272R2

Quick Conclusion

This HMI mainly matches ABB System 800xA and Compact Product Suite. It is not recommended to connect with third-party controllers without driver verification.
Factory sealed new units are no longer available via official ABB channels; stock quantity changes frequently.
Request pre-shipment communication function test records to reduce on-site commissioning risks.
Do not mix projects written for PP877 and PP877K; their hardware layout and driver resources are not fully interchangeable.

FAQ

Q1: Can PP877 directly replace PP877K without cabinet modification?

A1: Cutout dimensions are identical, but project files must be re-compiled for the exact model. Direct file copying usually causes display abnormality.

Q2: Is this unit factory new sealed?

A2: We supply fully tested surplus hardware. Original factory sealed new stock is out of production.

Q3: What is the warranty term?

A3: 12-month warranty starts from shipment date, covering confirmed inherent hardware defects.

Q4: Can you provide project conversion support?

A4: We provide hardware test documentation. Project editing and migration work relies on your system integrator.
