Product Core Brief
- Model: AO2040
- Brand: ABB
- Series: Advance Optima AO2000
- Core Function: Wall-mounted cabinet to host gas analyzer modules, control unit and I/O boards
- Type: Gas Analyzer System Enclosure
- Key Specs: Wall mounting structure; support up to multiple analyzer modules; built-in I/O slot space; compatible with AO2000 series measurement units
- Condition: ⚠️ Original production discontinued; limited tested surplus stock available
Product Introduction
Key Technical Specifications
| Parameter | Details |
|---|---|
| Model Designation | AO2040 (Advance Optima AO2000) |
| Installation Type | Wall-mounted |
| Sibling Model Reference | AO2020 (19-inch rack version) |
| Supported Modules | CALDOS, LIMAS, FIDAS, UV photometer and other AO2000 analyzer inserts |
| Integrated Slots | Controller unit, display, power supply, digital & analog I/O modules |
| Operating Ambient | +5 °C ~ +50 °C (indoor analyzer cabinet environment) |
| Power Input Support | 115 V AC / 230 V AC variants |
| Primary Application | Flue gas analysis, process gas monitoring, emission compliance measurement |

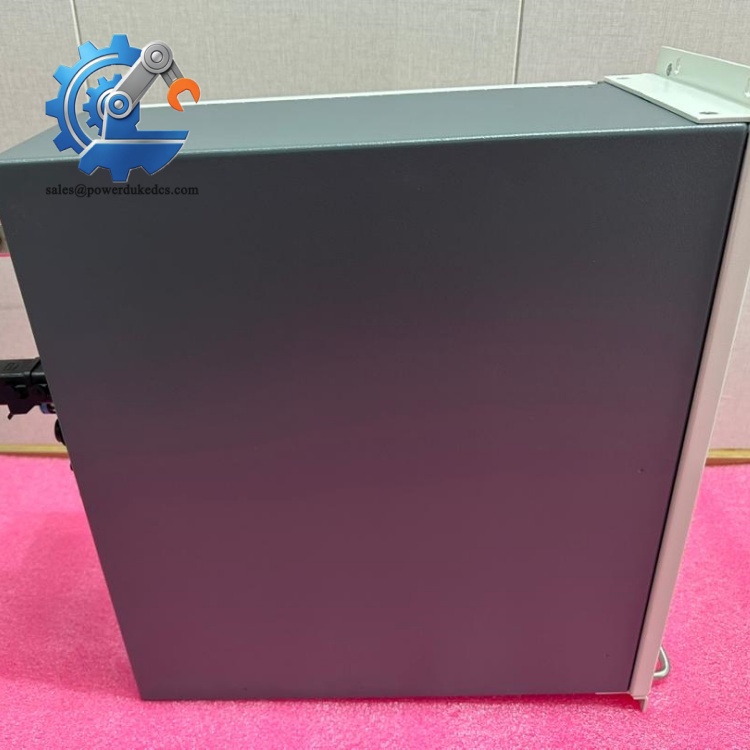

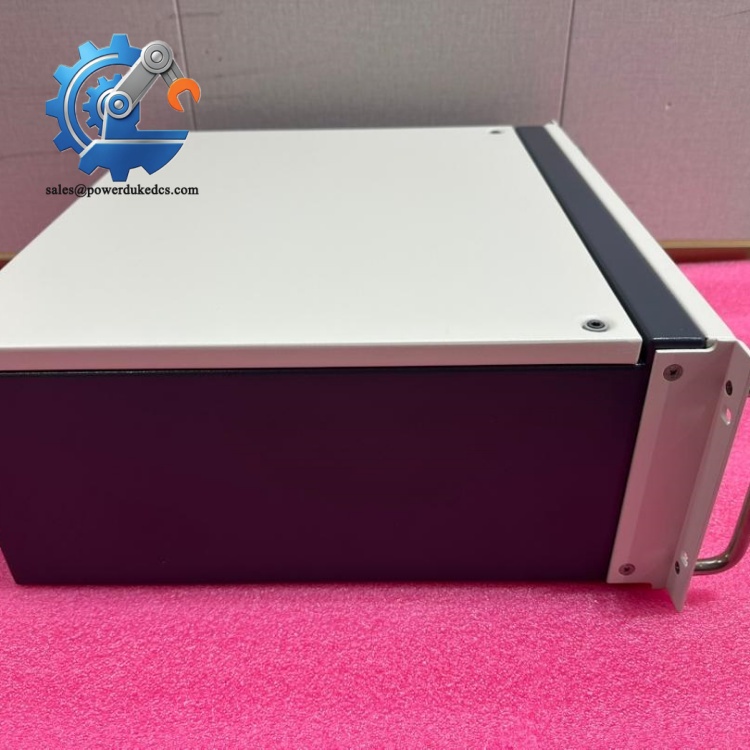

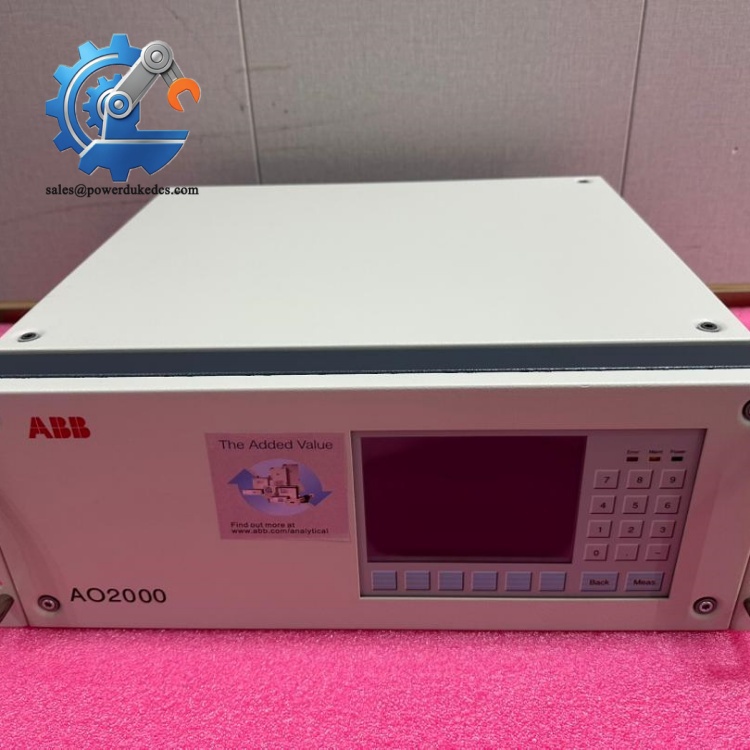

ABB AO2040
QC Testing Standard (Transparent Inspection Flow)
- Incoming Receiving Check
Check enclosure integrity; inspect door lock, cable glands and internal bus backplane for corrosion or damage; verify serial marking legibility.
- Live Bench Functional Test
Install matching control unit and I/O modules inside the housing; power on to confirm bus communication; test display interaction and signal terminal connectivity. Test photos or videos can be provided upon request.
- Electrical Safety Test
Carry out insulation resistance and ground continuity inspection for internal wiring bus.
- Configuration Record
Document internal slot layout and connector pin status before packaging.
- Final Packing & QC Label
Wrap with bubble protection; attach QC Passed sticker marked with test date.
Field Pitfall Guide for Replacement
AO2040 is wall-mounted, while AO2020 is 19-inch rack-mounted. Internal backplane structure differs, modules cannot be directly transferred between the two housings. We encountered a case where maintenance teams ordered AO2040 mistakenly, and all existing analyzer modules failed to fit.
Early AO2040 backplane does not support the latest revision of certain FIDAS modules. Confirm module hardware revision before procurement.
These small accessories are rarely stocked separately. Take photos during disassembly for reference.
Long-term operation above 50 °C accelerates aging of internal electronics and gas cell components.
Quick Conclusion
- Suitable for overhaul and spare replacement of existing AO2000 wall-mounted gas analysis systems
- Widely deployed in flue gas monitoring, chemical process gas measurement
- Not recommended for new engineering projects (product discontinued)
- Verify module compatibility and physical installation type before placing orders
FAQ
A: No. AO2020 is rack-mounted, AO2040 is wall-mounted. Internal frame and mounting dimensions differ; modules cannot be freely migrated.
A: It supports standard AO2000 series inserts such as CALDOS, LIMAS, FIDAS24, subject to backplane hardware version matching.
A: Yes. We can provide photos of power-on testing, backplane communication verification and internal structure inspection.
