- ABB GFD563A102 3BHE046836R0102 | Industrial Controller Optimized for SVG, STATCOM & Drive Applications
Meta Description
Product Core Brief
- Model: GFD563A102 / 3BHE046836R0102
- Brand: ABB
- Series: AC 800PEC
- Core Function: Executes high-speed real-time control algorithms for power electronic equipment
- Type: Processor Unit (Main Controller)
- Key Specs: Built-in 62 combined I/O; Supports dual redundant operation; Programmable via MATLAB/Simulink
⚠️ Discontinued original production, limited stock available
Condition: Tested surplus, non-refurbished
Product Introduction
Key Technical Specifications
| Parameter | Details |
|---|---|
| Full Order Code | GFD563A102 / 3BHE046836R0102 |
| Platform Compatibility | ABB AC 800PEC |
| Built-in I/O Resources | 30 Digital Input (2 encoder channels), 2 Analog Input, 28 Digital Output, 2 High-Speed Digital Output |
| Max Expandable I/O | 1024 points via extension modules |
| Operation Temperature | +5 °C ~ +55 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Power Supply | 24 VDC, typical consumption 200 mA |
| Redundancy Support | Dual controller hot standby configuration |
| Programming Environment | MATLAB/Simulink, ABB Control Builder |
| Maximum Remote I/O Distance | 1000 m |
| Protection Standards | ISA 71.04 G3 anti-corrosion compliance |

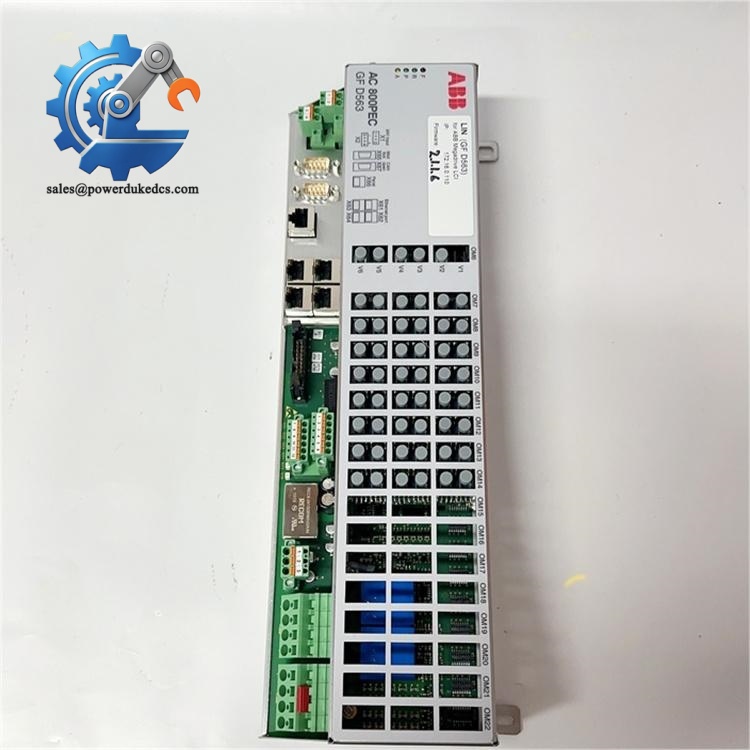

ABB GFD563A102 3BHE046836R0102
Quality Control Procedure
- Incoming Source Verification
Check original packing documents and serial number records. Complete visual inspection to confirm no corrosion, PCB scratches or prior repair traces. Cross-check all factory accessories.
- Live Bench Function Test
We deploy a complete ABB AC 800PEC test rack. Every unit undergoes power-on self-test, Ethernet communication handshake, full-range I/O simulation, and continuous 24-hour runtime aging. A formal test report is generated after testing.
- Electrical Characteristic Inspection
Insulation resistance test at 500 V, ground continuity check, and transient voltage resistance verification. We use Fluke 115 multimeters for all measurement work.
- Firmware & Configuration Backup
Read and record the exact firmware revision. Photograph DIP switch and jumper positions for reference. Configuration files are stored separately for customer delivery upon request.
- Final QC & Packaging
Qualified modules are sealed inside anti-static bags, wrapped with bubble film and packed into rigid export cartons. Each unit carries a dated QC Passed sticker. We can share test photos or video records on demand.
Field Pitfall Guide for Replacement
❗ Firmware version mismatch creates the most frequent site failures.
I once supported a STATCOM retrofit project where technicians swapped the controller without matching firmware. The system kept throwing communication timeout alarms for two days. Always record the firmware version from your existing unit before ordering. Confirm version compatibility with your supplier.
❗ DIP switch and terminal resistor settings cannot be ignored.
Take clear photos of the old module’s switch layout before removal. The 120 Ω bus terminal resistor must only be enabled at the two physical ends of the I/O chain. Many engineers skip this step and face unstable signal communication.
❗ Confirm cabinet power load margin.
The controller plus attached I/O modules will add fixed power draw. Reserve at least 20% spare capacity on your 24 VDC power supply to avoid under-voltage shutdown under peak load.
❗ Strict ESD protection during installation.
Dry workshop environments build static charge easily. Always wear anti-static wristbands and operate on anti-static mats. Static discharge can damage internal DSP chips without visible burn marks.
Quick Conclusion
- This controller targets power electronics control: SVG, STATCOM, medium-voltage drive systems. It is not recommended for conventional factory DCS logic tasks.
- Stock is limited because original manufacturing has stopped. Lead time for alternative new-generation controllers is usually longer.
- Request test documentation before shipment to reduce commissioning risks on site.
- If you need redundant configuration, confirm both units carry matching firmware revisions.
FAQ
Q1: Can GFD563A102 directly replace other AC 800PEC processor models?
A1: Physical mounting is compatible, but you must verify firmware versions and I/O mapping. Some variants have different onboard channel definitions.
Q2: Is this unit brand new factory sealed?
A2: It is tested surplus stock. Original factory sealed new units are no longer available from ABB official channels.
Q3: Can I get technical support for programming?
A3: We supply hardware test data. Control logic programming work needs to rely on your system integrator or ABB authorized service.
Q4: What is the standard warranty period?
A4: 12-month warranty starts from the shipment date, covering confirmed hardware defects from our pre-shipment testing.
