Honeywell CC-PUIO01 51454205-175 | Genuine OEM Universal Process I/O Module

Product Core Brief

Model: CC-PUIO01, Part Code: 51454205-175
Brand: Honeywell
Series: Experion PKS Series C I/O, matched with C300 Controller
Core Function: Channel-programmable universal I/O module to connect field transmitters and actuators
Type: Universal Process I/O Module
Key Specs: Software configurable channels | HART 7 compatible | Electronic short-circuit protection

⚠️ Original factory production discontinued, limited surplus inventory available

Key Technical Specifications

Parameter	Specification
Full Part Number	CC-PUIO01 / 51454205-175
Compatible Controller	Honeywell C300 Controller (Experion PKS DCS)
Supported Channel Types	Analog Input, Analog Output, Digital Input, Digital Output, Pulse Input (Channel 15–18)
Signal Range	4–20 mA / 0–20 mA analog loop
Communication	Built-in HART 7 protocol support
ADC Resolution	16 bit
Protection	Per-channel electronic short-circuit protection, open wire detection
Safe State Function	Independent failopt configuration for each output channel
Operating Temperature	-40 °C ~ +70 °C, non-condensing environment
Matching Termination Unit	CC-TUIO01 (non-redundant), CC-TUIO11 (redundant)
Installation Form	Standard Series C rack hot-swappable IOM module
Approximate Weight	0.35 kg
Compliance	CE industrial EMC standard

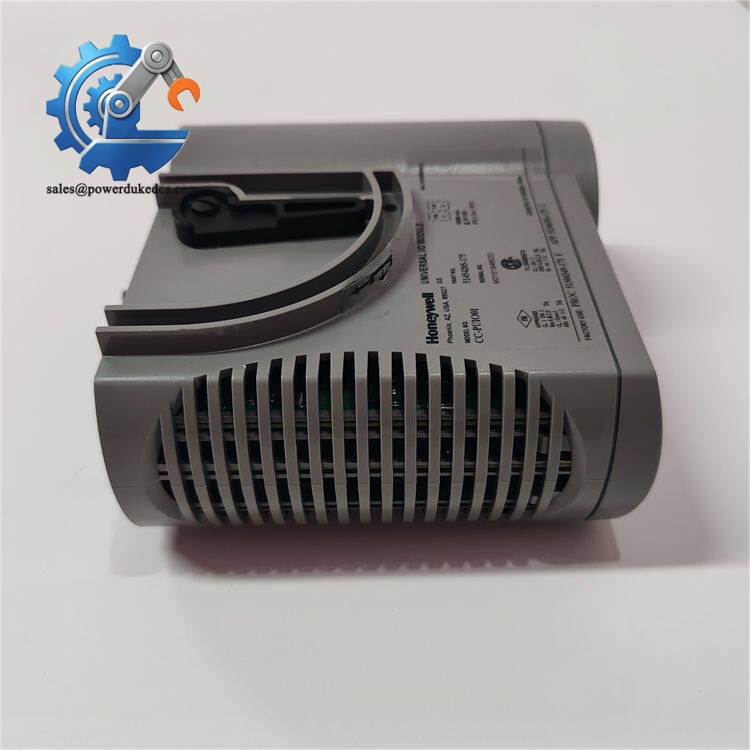

Honeywell CC-PUIO01 51454205-175

Product Introduction

Honeywell CC-PUIO01 (51454205-175) is a universal process I/O module belonging to the Experion PKS Series C platform, designed for C300 DCS controllers. All channels can be redefined by software without hardware modification, supporting analog, digital and pulse signal acquisition & output.

This module supports HART 7 communication, enabling bidirectional parameter reading for smart field instruments. Integrated short-circuit isolation prevents single-channel field faults from affecting the whole module. For petrochemical, power and energy plants running legacy Experion PKS systems, this flexible I/O module reduces spare part varieties. As original manufacturing has been phased out, surplus stock serves as critical maintenance spares for plant lifecycle extension.

Application Scenarios & Pain Points

Numerous process plants still operate Experion PKS C300 DCS systems deployed over 15 years. A hardware fault on CC-PUIO01 will disconnect field sensor and actuator signals, causing loss of monitoring or control capability for process loops. Long OEM lead times increase risks of unit derating or unplanned shutdown.

Typical Application Scenarios:

Oil & Gas Refineries – Process Monitoring & Control

Connect flow, pressure, temperature transmitters and control valves; HART function supports remote instrument calibration and diagnosis.
Thermal & Combined Cycle Power Plants – Boiler & Turbine Control

Process analog and digital interlock signals for BMS, turbine auxiliary systems and feedwater control loops.
Chemical Processing Plants – Continuous Production Units

Flexible channel configuration adapts to mixed AI/AO/DI/DO field points, lowering cabinet layout transformation cost.
LNG & Energy Storage Facilities – Hazardous Area Control Interface

Wide temperature range design fits outdoor and auxiliary control room rack environments.

Case Reference

A large petrochemical complex in East China encountered unstable HART communication on its C300 control rack last summer. Site troubleshooting confirmed hardware degradation of existing CC-PUIO01 51454205-175. Official Honeywell delivery lead time exceeded 12 weeks. Any long-term restriction on production load brought massive revenue losses.

We supplied fully bench-tested surplus stock within 4 working days. After module replacement and downloading channel configuration, all field signals and HART communication recovered stably. The maintenance team ordered an additional spare module to avoid emergency downtime risks.

Compatibility & Replacement Matrix

CC-PUIO01 51454205-175 → CC-PUIO01 different revision: Verify firmware compatibility with C300 controller before power-up; channel configuration needs re-download.

CC-PUIO01 51454205-175 → CC-PUIO31: Not plug-and-play; different channel quantity and termination hardware, full system reconfiguration required.

CC-PUIO01 51454205-175: No cross-brand equivalent substitute; identical part number is recommended for direct replacement.

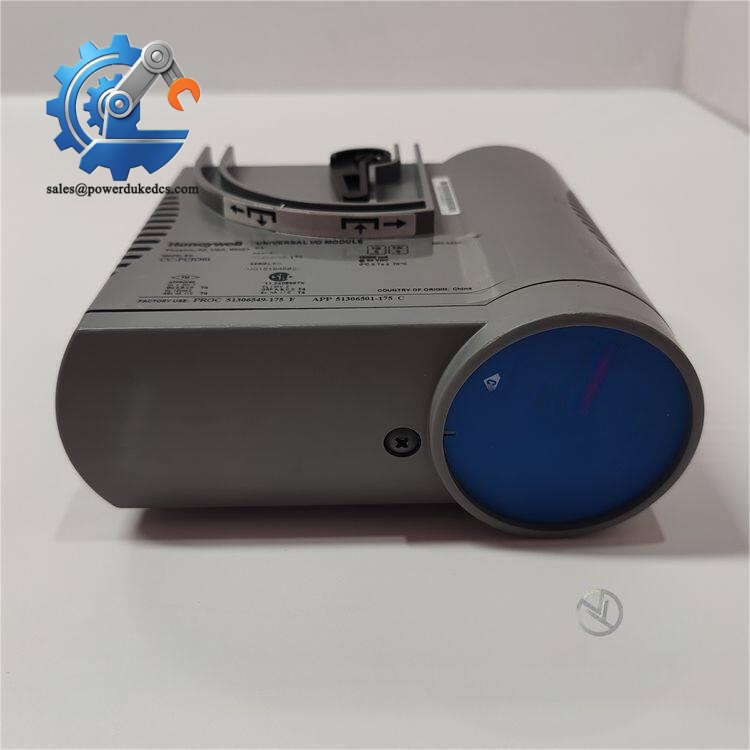

Honeywell CC-PUIO01 51454205-175

Quality Control Test Procedure

Incoming Visual Inspection

Inspect PCB for corrosion, burnt traces, damaged edge connectors and unauthorized repair solder joints. Record serial number for traceability.
Hardware Continuity Check

Use Fluke 115 multimeter to test power and signal circuits, confirm no internal short circuits.
Power-Up Live Bench Test

Install module on dedicated C300 test rack. Supply specified rack power, check LED status indicators. Simulate multiple signal types to verify input/output response and HART communication handshake.
Continuous Aging Test

24-hour powered operation test. Monitor signal stability and record component temperature rise.
Insulation Resistance Test

500 VDC megohmmeter test; insulation resistance maintained above 10 MΩ between power and signal circuits.
Final QC & Packaging

Generate formal test report. Seal module inside anti-static bag, attach QC passed label. Protected with bubble wrap for transit. Test photos or video can be provided upon customer request.

Field Installation Pitfall Guide

❗ 1. Configuration Backup

Export and save all channel definitions, signal types and safe-state parameters of the faulty module before removal. Missing configuration will cause loop abnormal after replacement.

❗ 2. C300 Firmware Matching

Older C300 controller firmware versions may have compatibility issues with newer module hardware revisions. Confirm firmware version before procurement.

❗ 3. ESD Protection Mandatory

All PCB handling must use anti-static wristbands and anti-static mats. Static discharge can damage onboard signal processing chips. Risks rise significantly in dry seasons.

❗ 4. Hot Swap Precondition

Hot swap is supported only under normal system running status. Avoid hot swapping during critical process peak periods.

❗ 5. Termination Unit Matching

Must use matched CC-TUIO01 / CC-TUIO11 IOTA termination base. Mismatched terminal assembly leads to wiring signal disorder.

❗ 6. Cabinet Environment Control

Avoid installation near vibration sources or locations with chemical vapor and condensation. Long-term high humidity accelerates electrolytic capacitor aging.
