ABB D674A906U01 Self-Diagnostic HART Interface Module For Process Automation

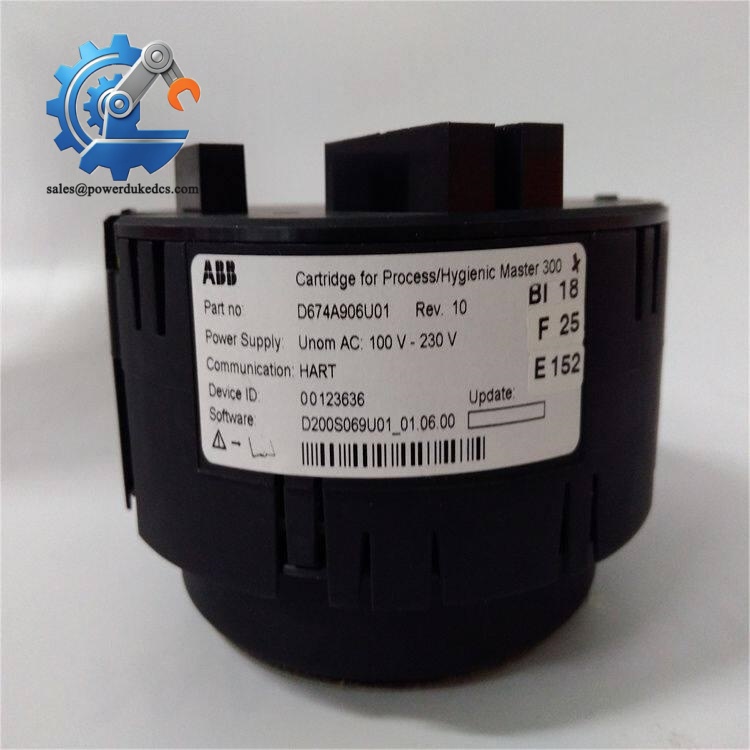

Unstable HART handshake often causes delayed instrument data transmission and unplanned process control deviations. The ABB D674A906U01 is a dedicated U-High HART communication cartridge designed for ABB FEP300 field device systems.

This compact module bridges smart field sensors and upper automation hosts. It standardizes HART protocol signal conversion and maintains consistent data transmission in high-interference industrial environments. Integrated diagnostic circuits continuously track connection integrity and device operating status. It has supported stable instrument communication across chemical, oil & gas and power process sites for years.

⚠️ Complete all replacement work during process shutdown. Isolate field device power and confirm full circuit discharge to avoid signal surge damage.

Prepare ESD protective tools, insulated screwdrivers and a digital multimeter. Take clear photos of the original cartridge insertion position and wiring layout. Record existing HART communication parameters for post-replacement matching. Back up device configuration data to prevent parameter loss.

Locate the cartridge slot on the FEP300 field device. Release the locking tab gently.

Pull the old D674A906U01 cartridge straight out. Clean slot contacts with dry compressed air. Inspect for oxidation, dust buildup or pin deformation. Keep all original wiring intact to avoid rework errors.

Discharge static electricity before unpacking the new unit. Confirm full part number matches site requirements.

Insert the new cartridge vertically into the dedicated slot until the locking tab clicks firmly. Verify full contact engagement with no loose gaps. Restore all wiring according to recorded photos. No extra terminal modification is required for standard plug-in installation.

Double-check cartridge locking status and wiring correctness before power restore.

Re-energize the field device and observe module operating status. Connect engineering software to verify HART communication handshake. Check real-time instrument data upload stability. Run continuous signal monitoring for 30 minutes with no communication dropout or fault alarms. Update plant maintenance logs with new module information.

All stocked D674A906U01 cartridges undergo strict industrial-level quality verification.

Full source traceability inspection proceeds first. Verify factory labels, serial numbers and packaging integrity. Visual check confirms no scratches, aging discoloration or manual repair traces on the cartridge housing and circuit board.

Professional bench testing uses a matched ABB FEP300 simulation setup. Complete power-on self-test, HART protocol communication verification and signal stability testing. A 24-hour continuous powered aging test screens intermittent hidden faults.

Electrical tests include insulation resistance checking and contact continuity verification. All test data and configuration states are fully recorded.

Qualified units are sealed in anti-static packaging with official QC Pass labels. Test records and inspection photos are available upon request.

❗ Incomplete Slot Engagement

Partial cartridge insertion leads to intermittent HART disconnection. I have seen process plants face fluctuating instrument data due to unlocked cartridge tabs. Always confirm the locking tab clicks completely.

❗ Unrestored Communication Parameters

New cartridges load factory default configurations. Simply swapping hardware without parameter synchronization causes protocol mismatch. Match original site HART baud rate and device address settings after installation.

❗ Environmental Humidity Interference

Condensed moisture in field device cabinets corrodes cartridge contacts. Keep cabinet ventilation intact to maintain stable long-term operation.

❗ ESD Static Damage

Internal protocol processing chips are highly static-sensitive. Dry field environments raise invisible damage risks. ESD protection must be applied during all handling procedures.

❗ Model Variant Confusion

Multiple HART cartridge variants exist for FEP series devices. Only D674A906U01 matches U-High specification. Mixing different variants triggers permanent communication failure.

Adhering to these checks eliminates most post-replacement communication faults and process downtime.

1. What devices is ABB D674A906U01 compatible with?

It exclusively matches ABB FEP300 series field devices. It serves as the standard plug-in HART communication cartridge for this platform.

2. Can I perform hot-swap replacement during system operation?

Physical hot plug is possible, yet temporary communication interruption will disrupt instrument data acquisition. Replace only during planned equipment shutdown for process safety.

3. Will device configuration be lost after cartridge replacement?

Core device parameters remain stored in the field device. Only temporary communication calibration settings need re-verification after swapping.

4. What symptoms indicate cartridge failure?

Typical faults include frequent HART communication timeout, unstable instrument data display, unresponsive field device handshake and continuous diagnostic alarms.

5. Is this part still in mass production?

No, official production has been discontinued. We maintain 1–2 units of buffer stock for emergency MRO demands. Long-term users need to arrange last-time-buy inventory planning.

6. What warranty and technical support are provided?

All units come with a 12-month industrial warranty. Our technical team provides remote guidance for installation, communication debugging and parameter matching.

This discontinued HART cartridge falls into ABC Class A critical spare due to its direct impact on field instrument communication and process monitoring stability.

We recommend Min 1 / Max 2 on-site buffer stock per production site. Lead time variability is high for obsolete ABB field device accessories. JIT ordering cannot support emergency breakdown recovery.

Slow-moving but critical by nature, this part applies strategic last-time-buy stocking rules to avoid stock-out risks. Cross-site inventory sharing is available to reduce overall carrying costs and prevent obsolescence write-offs.
