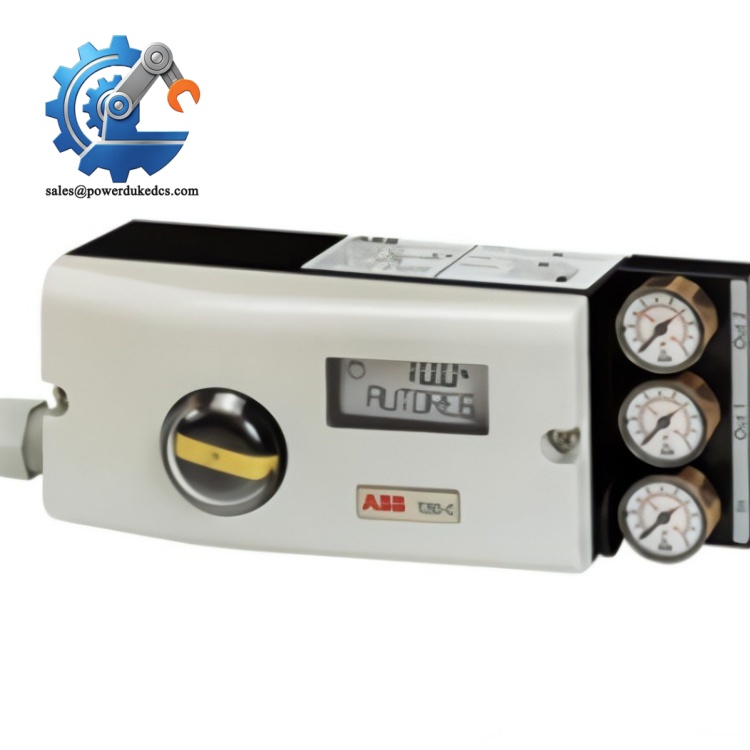

ABB V18345-1010521001 | High-Stability Intelligent Positioner with Auto-Calibration Function

Product Core Brief

Model: V18345-1010521001
Brand: ABB
Series: V18345 Intelligent Valve Positioner Series
Core Function: Convert analog control signals to pneumatic valve stroke positioning for process regulation
Type: Electro-pneumatic intelligent valve positioner
Key Specs: 4–20 mA input, HART protocol, double-acting, intrinsically safe explosion-proof
Condition: New Surplus, non-refurbished, full factory integrity
Stock Strategy: Critical B-class spare; maintain 1 unit minimum buffer stock, JIT bulk replenishment for multiple plant sharing; low obsolescence risk

Product Introduction

Process valve drift and inaccurate stroke positioning often cause loop instability in continuous production lines. This ABB V18345-1010521001 solves such deviations via closed-loop intelligent regulation.

It receives standard 4–20 mA control signals and precisely adjusts pneumatic actuator output. Built-in HART communication enables remote parameter modification and real-time fault diagnosis. Auto-calibration eliminates manual stroke tuning, cutting on-site commissioning time significantly. Field data shows its positioning accuracy reaches ±0.5% full scale under stable working conditions.

Most chemical and power plants deploy this positioner on regulating valves for gas, liquid and steam media. Its compact structure supports vertical and horizontal mounting, adapting to diverse field installation spaces.

Key Technical Specifications

Parameter	Specification
Model	V18345-1010521001
Signal Input	4–20 mA DC two-wire
Communication Protocol	HART 7
Actuator Type	Double-acting
Explosion-Proof Grade	Intrinsically safe
Positioning Accuracy	±0.5% FS
Repeatability	≤0.3%
Working Air Pressure	1.4–7 bar
Ambient Temperature	-40 ℃ ~ +85 ℃
Protection Class	IP66
Calibration Mode	Full auto / semi-auto / manual
Fail-Safe Mode	Fail open / fail close / lock on loss of signal
Max Input Current	50 mA

ABB V18345-1010521001

Strict Quality Inspection SOP (Full Transparency)

1. Warehouse Incoming Verification

We verify original factory packing lists and batch traceability records for every unit. Serial numbers are logged in our inventory system for full lifecycle tracking.

Visual inspection covers housing integrity, zero corrosion, zero scratch marks, and no aging discoloration. Standard accessories including factory certificates and instruction manuals are fully matched.

2. Live Bench Functional Testing

Testing is completed on a dedicated ABB valve positioner simulation bench.

Power-on self-test: All indicator lights operate normally with no startup faults
HART communication handshake: Stable connection with handheld communicator
Full-stroke analog test: 0–100% stroke response verified without lag or jitter
Continuous 24-hour aging test: No temperature rise or intermittent signal dropout
Complete test report generated for each unit, available for customer review

3. Electrical Performance Testing

Insulation resistance tested via 500V megohmmeter, with values stably above 10 MΩ.

Ground continuity and circuit anti-interference performance fully comply with IEC 61508 standards. No short-circuit or leakage points detected in internal circuits.

4. Firmware & Configuration Verification

Official factory default firmware version is recorded and archived.

All default parameters including signal range and fail-safe logic are backed up. No modified or third-party rewritten programs exist inside the device.

5. Final QC & Packaging

Professional inspectors confirm all test items pass. Units are sealed in anti-static bags, wrapped with bubble film, and packed in standard cartons. Each package carries a QC Passed label with inspection date.

Field Replacement Pitfall Guide (Engineer Practical Experience)

1. Mismatched Firmware & HART Version

Old field positioners may run early HART 5 versions, while new stock units adopt HART 7.

Version inconsistency causes unreadable remote parameters and failed remote calibration.

Fix: Confirm on-site HART version before replacement; downgrade firmware if needed.

Real case: One chemical site suffered 1-day downtime after replacement due to unrecognized device addresses from version mismatch.

2. Incorrect Single/Double-Acting Parameter Settings

This model defaults to double-acting mode. Direct installation on single-acting actuators leads to stroke dead zones.

Fix: Manually switch actuator type via local menu before power-on commissioning.

Never rely on factory default configurations for on-site matching.

3. Air Source Pressure Deviation

Many field teams use universal 0.4–0.8 MPa air sources without verification.

Excess pressure accelerates internal valve aging; insufficient pressure causes incomplete stroke travel.

Fix: Calibrate air pressure to 1.4–7 bar strictly per factory specs before commissioning.

4. Ignored ESD Protection

Positioner internal signal chips are highly static-sensitive.

Dry winter environments easily generate static electricity, causing latent circuit damage.

Fix: Wear ESD wristbands and operate on anti-static mats.

I have seen on-site units with normal startup but random trip faults one month after unprotected installation.

5. Wrong Fail-Safe Logic Configuration

Improper fail-safe setup leads to valve full-open or full-close misoperation during signal loss, triggering process risks.

Fix: Match fail-safe mode strictly to process safety requirements before putting into service.

Installation & Configuration Guide

Phase 1: Pre-Installation Preparation (12 min)

⚠️ Safety Reminders

Apply process shutdown and lockout-tagout procedures
Cut off instrument air source and control signal power
Reserve 3 minutes for internal pressure relief
Complete ESD protection before device contact

Tools Needed: Flat screwdriver, Fluke 115 multimeter, HART handheld communicator, camera, cable labels

Backup Work: Photograph original wiring, air pipe connection and parameter settings for configuration replication.

Phase 2: Old Positioner Removal (10 min)

Close front-end air source valve and confirm pressure release
Disconnect 4–20 mA signal wires one by one and label each terminal
Loosen air pipe joints slowly to avoid residual pressure ejection
Remove mounting bolts and take down the old unit
Clean mounting bracket and air pipe interfaces of dust and oil stains

⚠️ Do not twist air pipes during removal; deformed threads cause air leakage after reinstallation.

Phase 3: New Unit Installation (15 min)

Take the new ABB V18345-1010521001 from anti-static packaging
Fix the positioner firmly on the valve bracket with horizontal/vertical mounting optional
Reconnect air pipes and signal wires strictly per photographed records
Check air-tightness of all pipe joints
Replicate original parameter settings including address and signal range

Pre-Power-On Checklist

[ ] Air pipe connections leak-tight

[ ] Signal wiring polarity correct

[ ] Mounting bolts fully tightened

[ ] No residual tools near valve stroke range

Phase 4: Power-On & Commissioning (20 min)

Restore instrument air source and stabilize pressure within standard range
Switch on 4–20 mA control signal power
Initiate auto-calibration to match valve full-stroke travel
Verify 0%, 50%, 100% stroke response accuracy
Connect HART communicator to read device status and fault codes
Simulate signal loss to confirm fail-safe action validity
Run 30-minute continuous monitoring with no abnormal fluctuations

Common Troubleshooting

Slow valve response: Adjust pneumatic gain parameters and check air source purity
HART communication failure: Verify wiring shielding grounding and device address
Stroke deviation: Re-execute auto-calibration after confirming mechanical valve no jamming

Frequently Asked Questions (FAQ)

Can ABB V18345-1010521001 replace old V18345 series models directly?

Physical mounting and wiring are compatible. You must recalibrate stroke parameters and match HART versions. Direct replacement without calibration will cause positioning errors.
Does this positioner support hot swap during operation?

Hot swap is not recommended. Signal interruption triggers valve fail-safe action and process fluctuation. Replace only during planned shutdown.
What air source quality is required for long-term stable operation?

Dry, oil-free compressed air is mandatory. Oil and water accumulation inside the cavity will block pneumatic channels and cause drift faults.
Can it work for both linear and rotary valves?

Yes. It supports configuration for linear and rotary actuator types via local menu or HART remote setup.
What is the warranty scope for stocked units?

We provide 12-month industrial warranty. Damage from wrong wiring, overpressure air source, mechanical collision or unqualified working environments voids warranty coverage.
Is on-site manual calibration necessary after installation?

Auto-calibration covers most scenarios. Manual fine-tuning is only needed for valves with severe mechanical aging or nonlinear stroke characteristics.
What is the optimal stocking strategy for this part?

It belongs to process-critical B-class spare parts. Adopt 1 unit on-site buffer stock + cross-site shared inventory to lower carrying costs while eliminating stock-out risks.
