Description

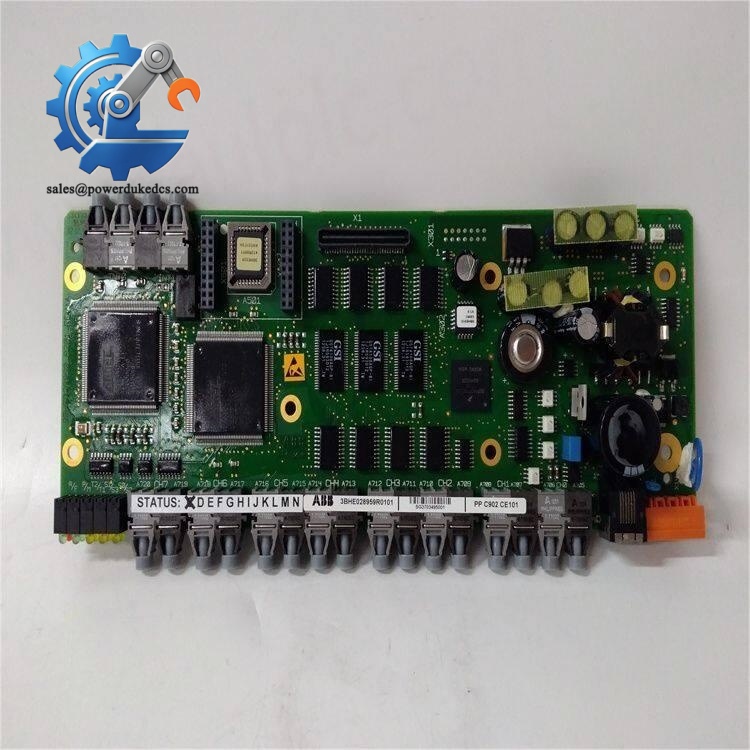

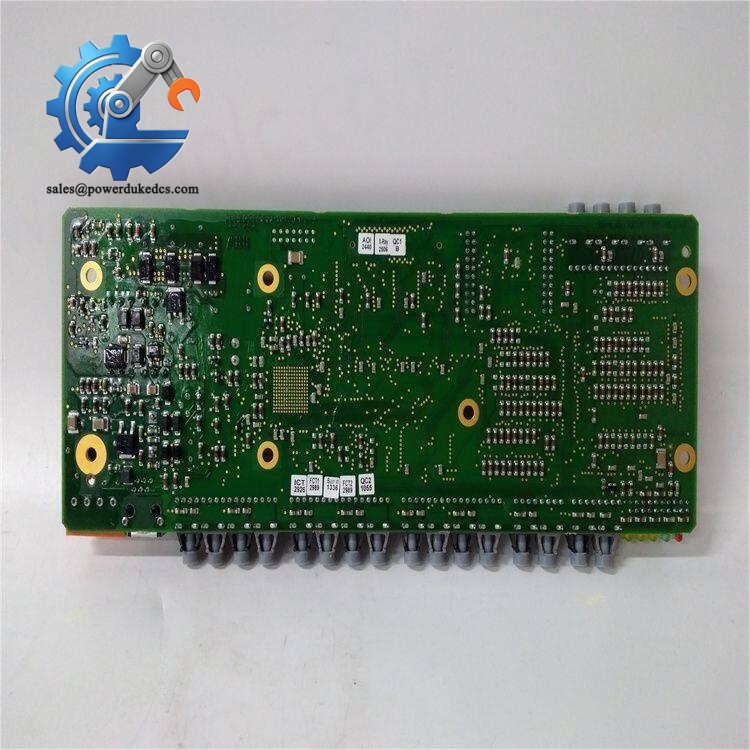

- ABB PPC902CE101 (3BHE028959R0101) | Factory Tested Spare Part With 12 Month Warranty
Product Core Brief
- Model: PPC902CE101, Code No. 3BHE028959R0101
- Brand: ABB
- Series: UNITROL Generator Excitation Control Platform
- Core Function: Executes main voltage regulation algorithm and all signal processing for synchronous generator excitation equipment
- Type: Main Excitation Processor Board
- Key Specs: High-speed DSP processing; fiber-optic communication; multi-loop AVR control; built-in fault diagnosis
- Condition: New Original, factory sealed, non-refurbished
Product Introduction
Unpredictable voltage swings and excitation system trips can force generator shutdown and create heavy economic losses for power stations. The ABB PPC902CE101 acts as the core computing unit inside UNITROL excitation cabinets.It samples generator voltage, stator current and rotor feedback signals continuously, and operates closed-loop automatic voltage regulation logic. Fiber interfaces support noise-resistant data exchange between the main processor and power unit. All limit functions, protection algorithms and event logging run locally on this board.The hardware is widely deployed on hydro, steam and gas turbine generator sets. Site maintenance teams commonly maintain this module as critical buffer stock to shorten outage duration during mainboard failure.
Key Technical Specifications
| Parameter Item | Technical Data |
|---|---|
| Full Part Number | PPC902CE101 / 3BHE028959R0101 |
| Application Platform | ABB UNITROL Excitation System |
| Processing Unit | High-speed Digital Signal Processor |
| Signal Processing | Generator terminal voltage, stator and rotor current sampling |
| Communication | Onboard fiber optical links, internal backplane bus |
| Core Control Functions | AVR regulation, V/Hz limitation, under-excitation & over-excitation protection, fault recording |
| System Configuration | Supports simplex and redundant excitation architecture |
| Rack Power Supply | Powered through rack backplane |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation Method | Plug-in card inside UNITROL cabinet rack |
| EMC Compliance | Designed for power plant substation electromagnetic environments |
ABB PPC902CE101 3BHE028959R0101
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (15 mins)
Coordinate operation staff to switch the generator unit into maintenance status. Cut off full power to the excitation cabinet, then wait 5 minutes for capacitor discharge.Prepare tools: ESD wrist strap, insulated screwdriver, digital camera. Export all excitation parameter files to secure storage. Capture clear photos of DIP switch settings, fiber cable routing and backplane layout.⚠️ Critical reminder: Generator excitation modification must comply with plant safety work permit procedures.
Stage 2: Old Module Removal (12 mins)
Label all fiber cables before disconnection. Unlock front panel latch and pull PPC902CE101 horizontally outward. Avoid tilting the circuit board to prevent bending backplane pins.Check rack gold fingers for oxidation or dust; clean gently with anti-static cloth. Inspect for burn marks or signs of overheating.
Stage 3: New Module Installation (20 mins)
Complete anti-static protection before unpacking. Confirm part number PPC902CE101 (3BHE028959R0101) matches the required replacement unit.Duplicate all switch configurations strictly following saved photos. Align the board with rack guide rails and push steadily until the front latch locks firmly. Reconnect fiber cables according to original labeling.Pre-power-on inspection: Confirm full insertion, correct TX/RX fiber direction, no loose connectors, no stray debris left inside the rack.
Stage 4: Power-On & Excitation Commissioning (40 mins)
Restore cabinet power and monitor module front LED indicators. Steady green RUN light signals normal initialization.Launch UNITROL engineering software to verify hardware identification and firmware revision. Import the saved excitation parameter backup file.Run no-load excitation test and observe voltage adjustment response. Check all protection thresholds and alarm functions.Keep continuous stable operation monitoring for minimum 30 minutes without abnormal alarms before returning the unit to automatic service.
ABB PPC902CE101 3BHE028959R0101
Frequently Asked Questions (FAQ)
1. Is hot-swap operation allowed for ?Hot removal is strictly forbidden. Live extraction will trigger generator protection trips and may damage rack backplane circuits. Full rack power disconnection is mandatory before replacement.
2. What risk comes with mismatched firmware versions?If firmware revision differs between the new board and power unit, persistent communication alarms will appear. Record the firmware version from the original module before purchasing. Firmware upgrade requires offline parameter re-verification.
3. Can I reuse old parameters directly after board replacement?Factory default settings load automatically on new hardware. You must manually import the site parameter backup. Always save configuration data before removing the original processor board.
4. Communication faults occur after installation, which items should I check first?Inspect fiber cleanliness and confirm transmit/receive cables are not reversed. Next, verify DIP switch configuration. Firmware incompatibility is another common root cause for unstable fiber communication.
5. Which generator types support this control board?It fits synchronous generators equipped with UNITROL excitation cabinets, including steam turbine, hydro turbine and gas turbine generator units.
6. What testing and warranty support can be provided?We provide 12-month warranty. Every unit passes power-on initialization and signal simulation testing before shipment. Test photos or inspection records can be shared upon request.
