YOKOGAWA AAI141-H50 S2 | Hot-Swappable Analog Input Card for Petrochemical DCS Systems

Product Core Brief

Model: AAI141-H50 S2
Brand: YOKOGAWA
Series: CENTUM CS3000 / CENTUM VP Field I/O (FIO)
Core Function: Collect 4–20mA field transmitter signals and deliver HART communication for smart instrument diagnostics
Type: Analog Input Module
Key Specs: 16 non-isolated channels; Built-in HART pass-through; Hot-swap capable; ESB bus communication
Condition: New surplus, fully bench tested before shipment

⚠️ Original manufacturer lead time is long; limited spare inventory available

Product Introduction

Smart 4–20mA transmitters need both signal acquisition and digital diagnostic access, and that is exactly what the YOKOGAWA AAI141-H50 S2 delivers. It belongs to Yokogawa’s FIO I/O series, widely deployed in refineries, chemical plants, power stations and water treatment facilities running CENTUM DCS platforms.

Unlike basic analog input modules without HART support, this variant enables operators to read secondary variables, calibrate transmitters and view device faults remotely. The 16-channel high-density layout reduces cabinet space consumption. It operates reliably within 0 °C to +55 °C and supports online hot swapping, so maintenance can proceed without shutting down the entire control node.

Key Technical Specifications

Item	Parameter
Full Part Number	AAI141-H50 S2
Official Name	Analog Input Module with HART Function
Compatible System	CENTUM CS3000, CENTUM VP FIO Nodes (ANB10S, ANB11S, ANB10D, ANB11D)
Input Channels	16 channels, non-isolated
Supported Signal	4–20 mA DC current loop
Communication Feature	HART pass-through for smart field instruments
Data Update Cycle	10 ms typical
Accuracy	±0.1% of full scale
Bus Interface	ESB bus for communication with FCS control station
Function Support	Hot swap; supports dual redundant configuration
Operating Temperature	0 °C ~ +55 °C
Relative Humidity	5% – 95%, non-condensing
Mounting	Standard FIO rack slot installation
Weight	Approx. 0.2 kg

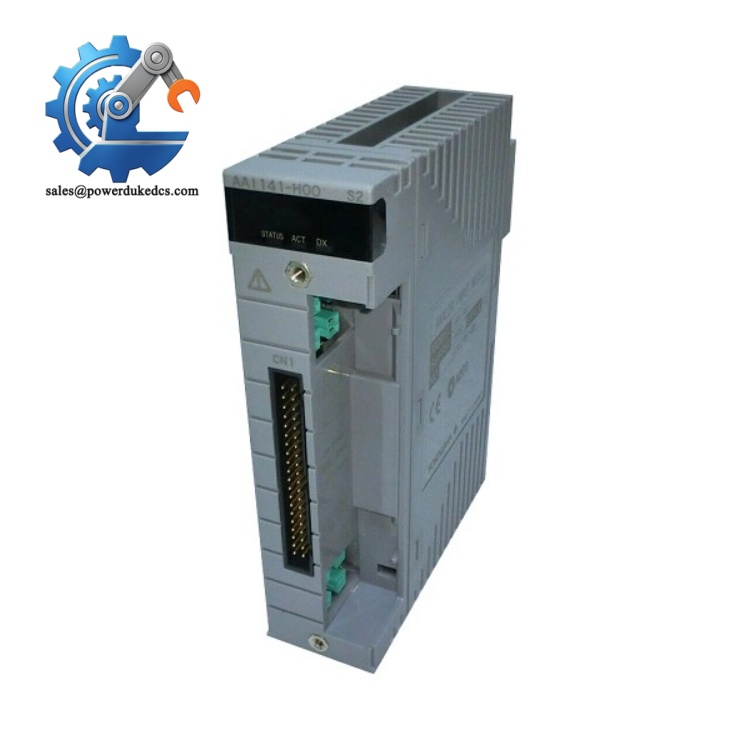

YOKOGAWA AAI141-H50 S2

Product Quality Control Process

All incoming AAI141-H50 S2 modules follow standardized inspection workflows before delivery.

Incoming Inspection

Check serial number traceability and physical condition. Inspect PCB for corrosion, scratch damage or disassembly traces. Verify front panel indicator LEDs and edge connectors remain intact.
Live Bench Test

Install the module on a complete Yokogawa FIO test rack. Run power-on self-test, LED status verification, channel signal simulation and HART communication handshake testing. Continuous 24-hour ageing test monitors thermal stability. Test photos or video can be provided upon request.
Electrical Performance Test

Insulation resistance test with a 500 V megohmmeter. Verify ground continuity and check for abnormal leakage current.
Hardware & Firmware Record

Document hardware style S2 revision. Back up default module configuration parameters.
Final Packaging & QC Sign-off

Passed modules are sealed inside anti-static bags, wrapped with bubble film and packed into cartons. Each unit carries a QC Passed label printed with inspection date.

Field Pitfall Guide for Replacement

Model & Suffix Matching Risk

The suffix H50 stands for HART enabled. Do not substitute with AAI141-H00 without HART capability. One site case: maintenance staff used non-HART model replacement, losing remote transmitter diagnostic functions.
Non-Isolated Wiring Precautions

This module uses non-isolated channel design. Group grounding must follow Yokogawa wiring guidelines. Mixed grounding potentials will cause signal drift and unstable readings.
Configuration Backup Before Removal

Save all channel range and alarm settings from the engineering station. Direct hardware replacement will require re-downloading configuration.
Hot Swap Operation Rules

Confirm the corresponding ESB node allows hot swap before pulling the card out. Abrupt removal may trigger brief communication alarms on the control station.
ESD Protection

Always wear an anti-static wristband during handling. Signal conditioning circuits are sensitive to electrostatic discharge. Risks rise sharply in low-humidity environments.

Frequently Asked Questions

Q1: Can AAI141-H50 S2 work on standalone PLC systems?

A1: No. It is designed exclusively for CENTUM FIO ESB bus architecture and cannot be used on third-party PLC racks.

Q2: Is this factory sealed brand new original unit?

A2: OEM factory lead time is lengthy. Available stock is new surplus and fully bench tested. Complete test documentation can be supplied.

Q3: What does the warranty cover?

A3: 12-month warranty starting from delivery date. The warranty excludes damage caused by incorrect wiring, surge voltage and static damage on site.

Q4: Can I use this module for thermocouple or RTD signals?

A4: No. It only accepts 4–20mA current signals. Temperature measurement requires dedicated Yokogawa TC/RTD input modules.
