Name: ABB PM511V16 3BSE011181R1 | Real-Time Processing Unit with Multi-Communication Interfaces - ABB DCS HEAVY EQUIPMENT
SKU: ABB PM511V16 3BSE011181R1
Price: 9415.00 USD
Availability: InStock

Description

Meta Description

ABB PM511V16 (3BSE011181R1) is the core processor module for ABB Advant Controller 450 / Advant OCS DCS systems. Available as tested surplus stock, used for process control retrofits and emergency spare replacement in power, chemical and metallurgy plants.

Product Core Brief

Model: PM511V16
Part Number: 3BSE011181R1
Brand: ABB
Series: Advant Controller 450 / Advant OCS
Core Function: Main processing unit executing real-time control logic for distributed automation systems
Type: DCS Processor / CPU Module
Key Specs: 8 MB ECC DRAM; PCMCIA flash card slot; Onboard Ethernet & serial communication ports
Condition: Tested Surplus, inspected before shipment

⚠️ Original production discontinued, limited available inventory

Product Introduction

When legacy Advant OCS control racks lose their main processing unit, unplanned shutdowns create costly production interruptions — the PM511V16 3BSE011181R1 serves as the direct OEM replacement controller for these ageing DCS platforms. It works as the central computing core of Advant Controller 450 racks, handling signal acquisition, closed-loop regulation and system communication tasks.

Compared to older PM511 variants, this V16 revision brings improved memory stability and extended temperature tolerance for continuous field operation. Built-in ECC memory lowers data corruption risks under industrial electrical noise. The PCMCIA card slot supports offline program backup and quick commissioning, which cuts configuration time during on-site module swap. Typical working temperature ranges from -20°C to +60°C for fixed cabinet installations.

Key Technical Specifications

Parameter	Details
Full Part Code	PM511V16, 3BSE011181R1
Platform Compatibility	Advant Controller 450, Advant OCS System
Memory	8 MB ECC DRAM; PCMCIA flash memory card slot
Interfaces	10/100 Mbps Ethernet, RS232 serial port, VME backplane connector
Supply Voltage	24 VDC from rack backplane
Operating Temperature	-20 °C ~ +60 °C
Storage Temperature	-40 °C ~ +85 °C
Mechanical Form	VME card standard rack-mounted module
Weight	0.76 kg
Certification	CE, industrial EMC compliant
Supported Functions	Real-time multitasking, PID control, fault logging, remote diagnostics

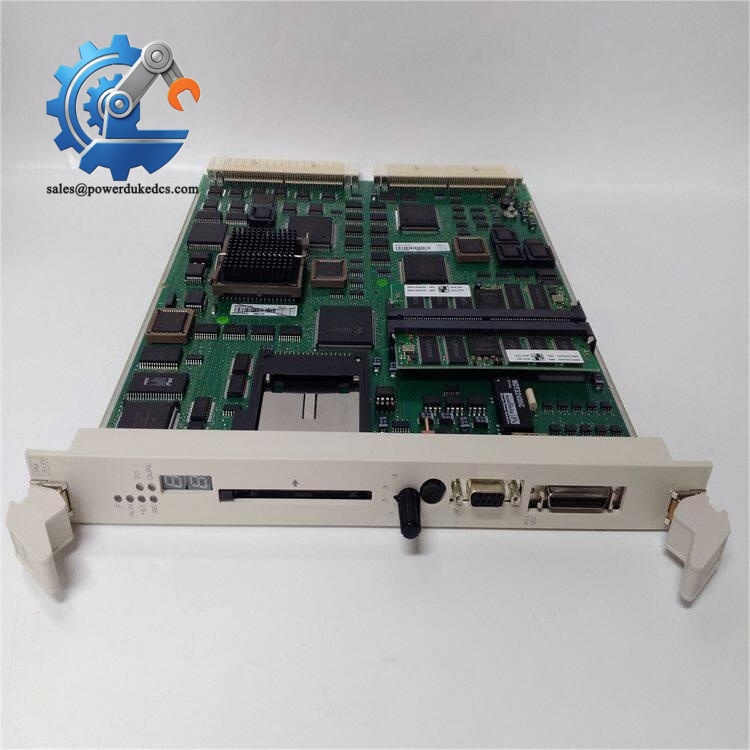

ABB PM511V16 3BSE011181R1

Typical Application Industries

Thermal power plant auxiliary control systems
Chemical continuous process DCS control racks
Metallurgy rolling mill and furnace automation
Pulp & paper production line control
Water treatment large-scale process automation

Advantages & Limitations

Advantages

Matches original Advant 450 rack backplane, direct plug-in replacement without rack modification
ECC memory design improves data reliability for long-term uninterrupted running
PCMCIA slot enables fast program loading and data backup during maintenance
Complete onboard communication interfaces, compatible with legacy plant SCADA networks

Limitations

Product line discontinued; factory new original units are extremely hard to source
Strict firmware revision matching required; mismatched firmware triggers system startup failures
Only works with Advant Controller 450 platform; cannot be used for AC800M or AC500 systems
Sensitive to ESD; improper handling can damage onboard memory and processor chip

Field Replacement Pitfalls

Firmware version mismatch

Many maintenance teams only check the hardware model PM511V16 and ignore internal firmware revision. Installing a unit with unmatched firmware will stop the entire control rack from synchronizing with upper-level SCADA. Always read and record firmware version from the faulty module before purchasing. One chemical plant spent two days troubleshooting exactly this issue during a scheduled overhaul.
Backplane connector contamination

Dust, oxidation or bent pins on the VME connector cause random communication dropouts after replacement. Clean all gold-plated contact surfaces carefully before inserting the new processor module.
Program backup oversight

The PCMCIA memory card does not always store the latest application code. Always upload the running program from the existing CPU before removal. Relying only on old card backups may lead to incorrect process parameters after swap.
ESD protection negligence

The PCB carries high-density memory chips vulnerable to static discharge. Wear grounded anti-static wristbands every time you handle the module. Static damage often does not show immediately, but leads to intermittent crashes weeks after installation.

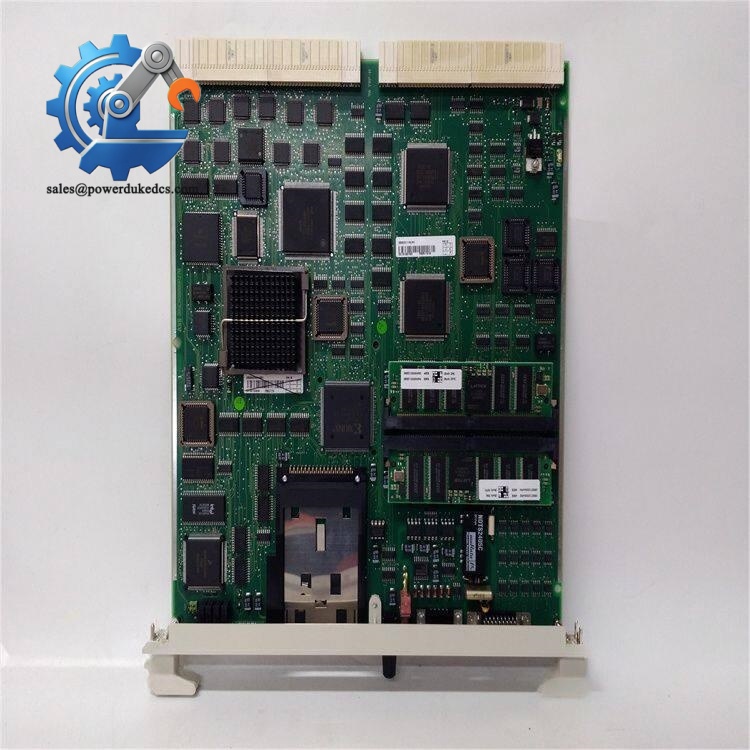

ABB PM511V16 3BSE011181R1

Pre-Shipment Quality Control Process

Inbound Inspection

Verify full part number 3BSE011181R1 against label records. Complete visual check: no PCB corrosion, no cracked solder joints, intact connectors, no component burn marks.
Powered Bench Testing

Test environment: Advant 450 simulation rack

24V power energization, verify all status LED indicators
Ethernet and serial communication handshake testing
Memory read/write stability test via PCMCIA slot
Continuous 20-hour powered ageing monitoring

Electrical Testing

Insulation resistance test at 500V DC; continuity check for backplane signal pins. All test results saved into formal test documentation; test photos can be provided upon client request.
Final Packaging

Unit sealed inside anti-static shielding bag, wrapped with bubble foam, packed into export carton. QC Passed label with test date attached externally.

FAQ

Q: Can PM511V16 replace older PM511V08 directly?

A: Hardware form factor fits, but firmware compatibility must be confirmed. Partial function adjustment may be required after replacement.

Q: Does this module support redundant CPU configuration?

A: Yes, it supports hot standby redundancy within Advant Controller 450 racks, subject to correct system configuration software settings.

Q: What warranty is provided?

A: 12-month functional warranty after delivery. Damage caused by surge voltage, ESD, improper installation or over-temperature operation is excluded.

Q: Can I use this processor on AC800M systems?

A: No. This unit belongs to Advant 450 platform and is not compatible with AC800M controller racks. Confirm your system model before ordering.
