Product Core Brief
- Model: PPD539A102, Order Code: 3BHE039770R0102
- Brand: ABB
- Series: PPD539 Series Excitation Power Control Board
- Core Function: Transmit drive pulses and implement hardware protection for excitation power stacks
- Type: Power Drive & Protection Control Board
- Key Specs: 24 V DC auxiliary supply; high-speed pulse signal transmission; built-in overcurrent monitoring circuits; rack mounting design
- Condition: ⚠️ Original production discontinued; limited new surplus and tested used inventory available
Product Introduction
Key Technical Specifications
| Parameter | Details |
|---|---|
| Full Order Code | 3BHE039770R0102 |
| Type Name | PPD539A102 Power Drive Protection Board |
| Auxiliary Supply | 24 V DC |
| Core Function | Thyristor trigger signal processing, hardware fault interlock protection |
| Installation | Cabinet rack mounting inside excitation cubicle |
| Main Application | ABB static generator excitation control systems |
| Operating Temperature | -25 °C ~ +60 °C (indoor industrial cabinet) |
| Signal Type | Isolated pulse drive signals for power modules |
QC Testing Standard (Transparent Inspection Flow)
- Incoming Receiving Check
Verify serial number traceability; inspect PCB surface for burnout marks, corrosion or repaired traces; check all terminal connectors for tightness and integrity.
- Live Bench Functional Test
Install the board on dedicated ABB excitation test rack; power on to confirm indicator status; run pulse signal output testing and fault simulation verification. Test photos or video records can be provided upon request.
- Electrical Safety Test
Complete 500 V DC insulation resistance test and ground continuity inspection.
- Firmware & Configuration Recording
Read and archive firmware version; record DIP switch and jumper layout before packing.
- Final Packing & QC Label
Seal inside anti-static bag, wrapped with bubble cushion. Attach QC Passed sticker printed with test date.

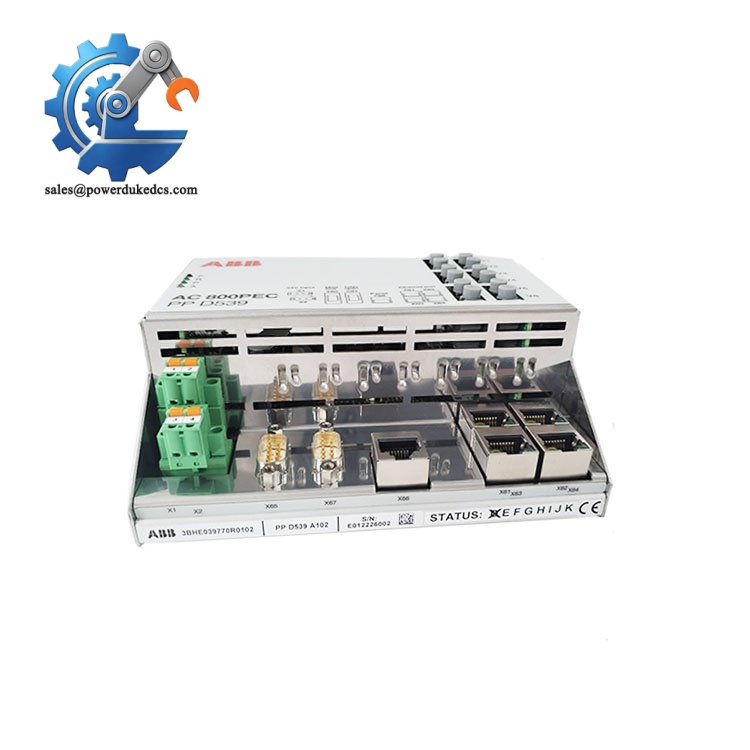

ABB PPD539A102 3BHE039770R0102
Field Pitfall Guide for Replacement
❗ Firmware revision mismatch causes unstable trigger signals.
One maintenance case showed that even with matching part number, mismatched firmware led to occasional excitation fluctuation. Always record the firmware version of your original board before placing orders.
❗ Take clear photos of all jumpers and terminal wiring before disassembly.
Factory default jumper settings rarely match site excitation parameters. Missing original configuration will lead to long debugging cycles.
❗ Strictly follow ESD protection procedures.
Onboard high-speed signal circuits are sensitive to static electricity. Hidden damage may appear weeks after installation. Wear anti-static wristband during handling.
❗ Confirm compatibility with power stack variants.
Different batches of excitation thyristor assemblies require matching drive board hardware revisions. Cross-check system serial number to avoid mismatching.
Quick Conclusion
- Critical spare component for ABB static excitation system maintenance
- Suitable for thermal power plants, biomass power stations and industrial self-generation units
- Not recommended for new project design since manufacturing has been discontinued
- Confirm full part number, firmware version and power stack compatibility before purchase
FAQ
Q1: Can PPD539A102 replace other PPD539 series variants directly?
A: Physical outline is similar, but hardware circuits and firmware differ among variants. Confirm full suffix part number before replacement.
Q2: What warranty is available for stocked units?
A: All fully tested modules come with a standard 12-month warranty, effective after successful on-site power-on acceptance.
Q3: Can you supply test documents before shipment?
A: Yes. We can share power-on test screenshots, pulse signal verification records and physical inspection photos.
