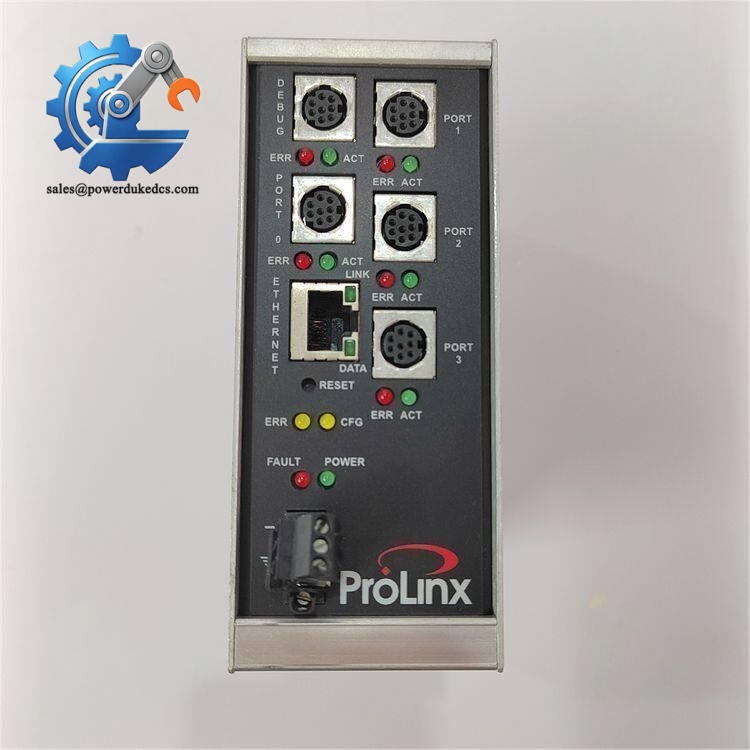

ProSoft 202-DFNT-MCM4 is a standalone DIN-rail protocol gateway from the ProLinx 202 hardware platform. It bridges Rockwell EtherNet/IP control systems and legacy Modbus serial field devices, supporting bidirectional real-time data mapping.

Four independent isolated serial ports allow engineers to split Modbus networks, reduce bus load and shorten scan cycle times. Every serial channel can be individually configured as Modbus Master or Slave. The gateway runs autonomous data exchange without occupying PLC processor resources. As original production ended, this unit serves as critical maintenance spare for factories with long-running EtherNet/IP & Modbus hybrid automation architectures.

Communication gateway failure isolates the control system from all field Modbus instruments. Many manufacturing and process plants still rely on this series to connect VFDs, flow meters, analyzers and power meters to Rockwell PLCs. OEM lead times for obsolete hardware often exceed 10 weeks, triggering production monitoring blind spots.

Typical application scenarios:

Case Reference

A water treatment plant in Jiangsu faced complete loss of Modbus instrument data last spring. Troubleshooting confirmed hardware failure on the 202-DFNT-MCM4 gateway. Official ProSoft sourcing lead time was 11 weeks. Without working communication, operators lost remote monitoring of all pumping stations.

The maintenance team purchased bench-tested spare unit from our stock. Before powering down the faulty gateway, technicians exported the full DFNT configuration file and recorded network IP settings. After hardware replacement, configuration download and full serial communication verification were completed within one shift. All field instrument data returned to the Rockwell control system.

202-DFNT-MCM4 → 202-DFNT-MCM4 : Direct plug-in replacement; match firmware version and configuration file

202-DFNT-MCM4 → 5202-DFNT-MCM4 : Hardware form factor similar, not drop-in compatible; requires wiring and configuration migration

202-DFNT-MCM4 → PLX31-EIP-MBS4 : New generation gateway; full project re-commissioning required, cannot directly swap

202-DFNT-MCM4 → MVI56E-MCM : Backplane module for ControlLogix, different hardware architecture, not interchangeable

❗ Firmware Version Inconsistency

Different firmware revisions handle register mapping and Modbus timing parameters differently. If firmware mismatch occurs, communication will run intermittently or fail entirely. Always record firmware version on the original unit before ordering. I have witnessed a site spending 3 days debugging unstable polling caused by unmatched firmware.

❗ Complete Configuration Backup Required

All port mode, baud rate, parity, register mapping and timing settings are stored inside the gateway. Always export the DFNT configuration file before replacement. Manual parameter entry easily creates communication faults.

❗ Serial Bus Termination

RS485 networks require 120 Ω termination resistor installed only at two physical endpoints. Improper termination leads to signal distortion and random Modbus timeout alarms.

❗ ESD Protection

Internal communication circuitry is static sensitive. Wear anti-static wristband during wiring in low humidity environments.

❗ Isolation & Cable Layout

Separate serial Modbus wiring from high-power inverter cables to suppress EMI noise. Crosstalk commonly causes intermittent communication dropouts.
