ProSoft PLX31-EIP-SIE | OEM PLX31 Series Gateway, EDS Profile Included for RSLogix Integration

Product Core Brief

Model: PLX31-EIP-SIE
Brand: ProSoft Technology
Series: PLX31 DIN-Rail Protocol Gateway Family
Core Function: Bidirectional protocol translator between EtherNet/IP and Siemens S7 Industrial Ethernet (ISO-on-TCP)
Type: Industrial Communication Protocol Gateway
Key Specs: DIN rail mounting | Max 10,000 16-bit data registers | Embedded EDS file | SD card configuration backup
Condition Note: Active OEM product; stocked surplus units fully bench verified before delivery

Key Technical Specifications

Parameter	Specification
Full Part Number	PLX31-EIP-SIE
Primary Function	EtherNet/IP ↔ Siemens S7 Industrial Ethernet (ISO-on-TCP) Gateway
EtherNet/IP Interface	Class1 I/O connection, Class3 explicit messaging; Min 5 ms RPI; 248 Bytes Input/Output per I/O connection
Siemens Protocol	ISO-on-TCP (RFC1006); Supports S7-200, S7-300, S7-400, S7-1200, S7-1500
Supported S7 Memory Areas	DB Blocks, Input(I), Output(Q), Memory(M), Timer(T), Counter(C)
Concurrent Connections	Up to 20 S7 client connections; 100 configurable commands per client
Power Supply	10–36 VDC, 300 mA typical @24 VDC
Network Port	Single isolated 10/100 Mbps RJ45 Ethernet (1500 V isolation)
Mounting	Standard DIN rail (vertical / horizontal installation)
Storage Medium	Onboard SD card slot for configuration backup & recovery
Operating Temperature	-25 °C ~ +70 °C
Certification	UL, CE; IP20 cabinet use only
Configuration Tool	ProSoft Configuration Builder + Embedded Web Server

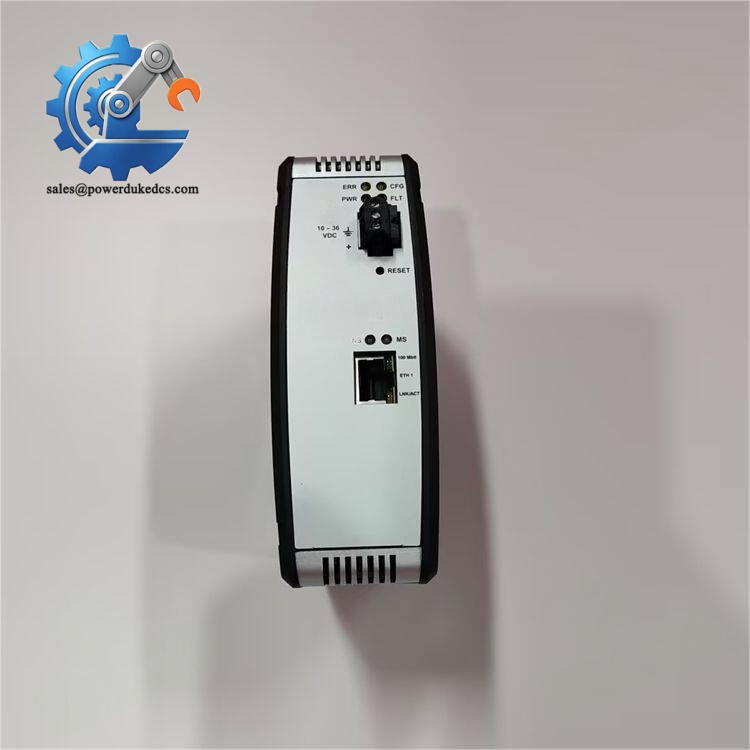

ProSoft PLX31-EIP-SIE

Product Introduction

ProSoft PLX31-EIP-SIE is a compact DIN-rail protocol gateway designed to bridge Rockwell EtherNet/IP controllers and Siemens S7-series PLCs. It eliminates the need for custom programming inside either PLC to enable cross-platform data sharing.

This unit supports real-time Class1 I/O cyclic data transfer and asynchronous explicit message communication. The embedded EDS profile simplifies direct integration into RSLogix 5000 / Logix Designer projects. The SD card slot allows one-click configuration cloning, which shortens commissioning and speeds recovery during gateway replacement. It is widely adopted for plant retrofits where Rockwell and Siemens control hardware must exchange process data.

Application Scenarios & Pain Points

Many plant modernization projects combine legacy Siemens S7 hardware with new Rockwell ControlLogix/CompactLogix systems. Without a dedicated protocol gateway, engineers face complex custom communication programming, unstable data synchronization and extended debugging cycles. Gateway failure interrupts interlock signals between production lines.

Typical Application Scenarios:

Automotive Assembly Lines – Interlock communication between Rockwell main controllers and Siemens auxiliary machine PLCs
Oil & Gas Processing Plants – Cross-platform data exchange between DCS and local S7 skid controllers
Water & Wastewater Facilities – Centralized Logix SCADA communicating with distributed Siemens pumping station PLCs
Plastics & Chemical Production – Coordination between extrusion line controllers and auxiliary thermal control systems

Case Reference

A vehicle component manufacturing plant upgraded its main control system to CompactLogix, while retaining existing Siemens S7-300 PLCs on multiple injection molding machines. Initial attempts using custom TCP programming caused frequent data loss. After deploying PLX31-EIP-SIE gateways, cyclic I/O interlocks remained stable. When one gateway failed unexpectedly, the maintenance team restored operation within 30 minutes using pre-saved configuration files stored on SD card backups. The facility ordered spare gateways to avoid unplanned downtime.

Compatibility & Replacement Matrix

PLX31-EIP-SIE → PLX31-EIP-SIE : Direct replacement; Load saved configuration file after installation

PLX31-EIP-SIE → PLX32-EIP-SIE : Hardware form factor different; Not plug-and-play, wiring and cabinet mounting modifications required

PLX31-EIP-SIE → Software-based protocol converters : Not direct hardware replacement; Requires full network architecture redesign

PLX31-EIP-SIE → Third-party generic gateways : Not recommended; Data mapping inconsistencies and timing instability risk for safety interlock signals

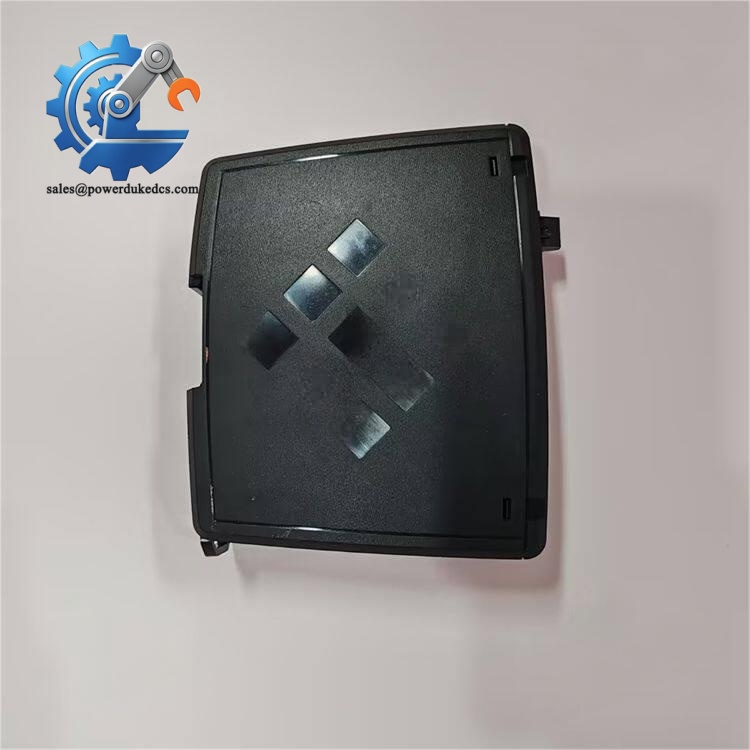

ProSoft PLX31-EIP-SIE

Quality Control Procedure (SOP)

Incoming Inspection

Serial number recording; Visual inspection of enclosure, Ethernet port, power terminals and PCB. Check for physical damage, cracked plastic and connector deformation.
Bench Functional Live Test

Test platform built with Rockwell CompactLogix and Siemens S7-1200 simulator. Power cycle testing, EtherNet/IP connection test, S7 data read/write verification, full command mapping validation. Formal test report generated.
Electrical Parameter Testing

Power supply range testing; Ethernet isolation continuity check; LED indicator functional verification.
Circuit & Configuration Recording

Record hardware status; Photograph unit front panel and ports for customer reference.
Final QC & Packing

QC engineer signs test report. Unit sealed with anti-static protection and bubble wrap. Test photos and reports can be provided upon request.

Field Installation Pitfall Guide

Missing Gateway Configuration Backup

Fault risk: Replacement gateway cannot communicate without the matching mapping file, leading to production halt.

Tip: Export configuration to SD card or PC before replacing hardware. I have witnessed multiple production stops caused by unrecovered gateway mapping.
Incorrect IP Subnet Planning

Risk: Gateway cannot reach both EtherNet/IP controller and Siemens PLC if routing or VLAN rules are incomplete.

Tip: Verify network routing; Avoid placing the gateway across unrouted network segments.
Improper RPI Configuration

Risk: Overly aggressive low RPI settings trigger communication timeouts and module faults under heavy network load.

Tip: Start commissioning with 50 ms RPI, tune downward only after verifying network stability.
ESD Damage

Risk: Static discharge damages internal Ethernet transceiver circuits during maintenance.

Tip: Wear ESD wrist strap while handling and configuring the gateway inside open cabinets.
S7 Connection Resource Exhaustion

Risk: Too many concurrent S7 client commands cause slow data refresh or dropped connections.

Tip: Optimize command list; Remove unused read/write commands to reduce gateway resource load.
