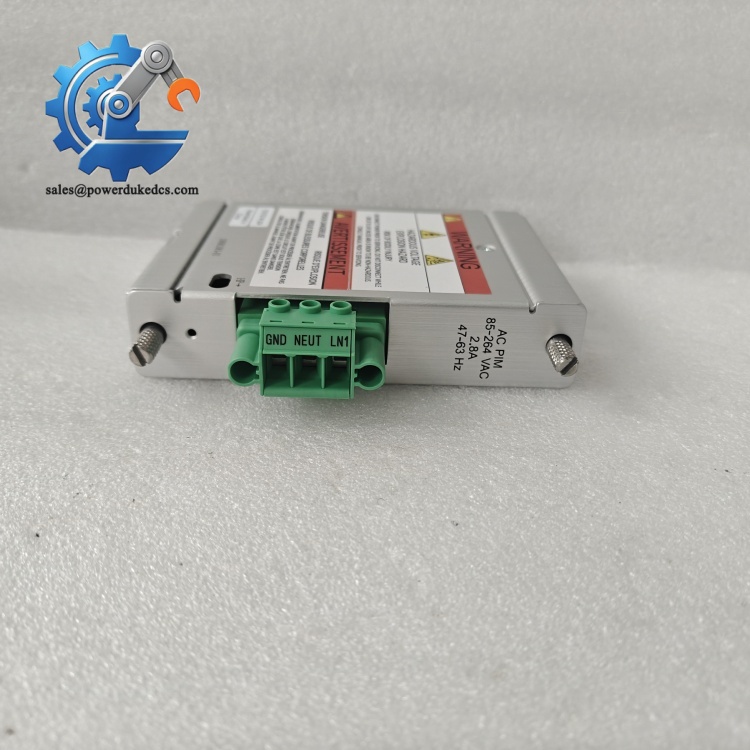

1. Bently Nevada 3500/15 125840-02 | Genuine PIM Module Suitable for Turbine Vibration Monitoring

Product Core Brief

• Model: 3500/15 125840-02
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Core Function: Delivers low voltage AC power input to the 3500 rack power supply
• Type: Power Input Module (PIM)
• Key Specs: Input range 85–132 Vac RMS, 47–63 Hz, half-height rack installation Condition: New Surplus, non-refurbished ⚠️ This series is end-of-life, limited stock available

Product Introduction

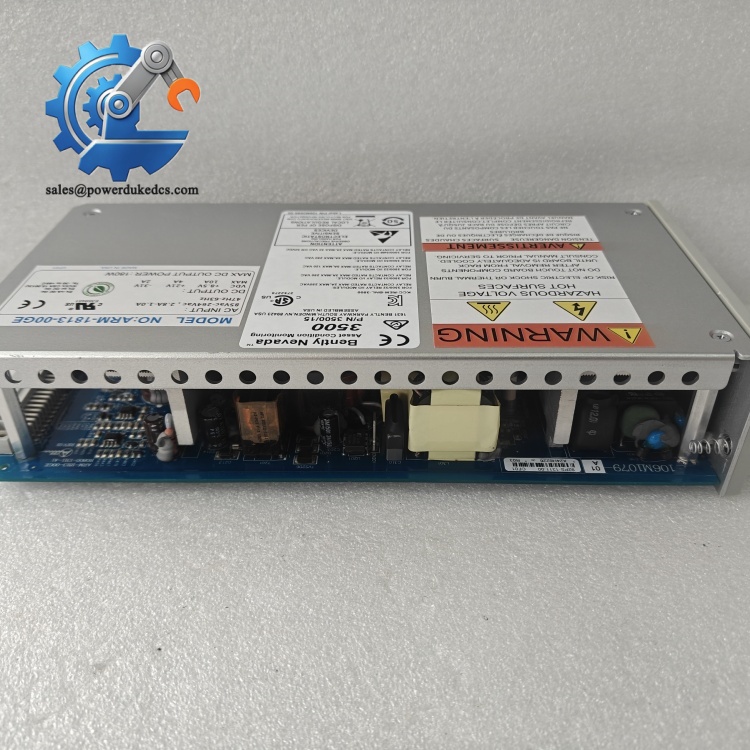

Unplanned power module failure can shut down turbine and compressor monitoring racks instantly. The Bently Nevada 3500/15 125840-02 serves as the dedicated low voltage AC power input interface for the 3500 protection rack. It mates directly with corresponding 3500/15 power supply hardware inside the left rack slots.

Compared with high voltage AC PIM variants, this unit targets sites with standard 110V AC control power. It transfers external mains power to the rack backplane with built-in overvoltage fuse protection. Field data shows the module achieves stable continuous operation within -30°C ~ +65°C ambient, matching the environmental requirements of most petrochemical and power plant control rooms.

Key Technical Specifications

Bently Nevada 3500/42M 176449-02

Installation & Configuration Guide

Pre-Installation (Estimated 12 minutes)

⚠️ Safety Reminders

1. Schedule a planned outage for the machinery protection rack. Uncontrolled power loss may trigger machine trips.
2. Isolate all AC power feeding the 3500 rack. Lock out and tag the power circuit.
3. Wait minimum 5 minutes to discharge internal rack capacitors.

Tools to prepare:

• Anti-static wrist strap and anti-static mat
• PH1 screwdriver
• Digital multimeter
• Mobile phone for photographing existing wiring and module layout
• Label tape for terminal marking

Preparation tasks: Take clear photos of existing PIM wiring, terminal sequence and module position. Record all wire labels for reference. Verify input power circuit voltage before disassembly.

Bently Nevada 3500/42M 176449-02

Removal of Old Module (Estimated 15 minutes)

1. Confirm rack power is fully disconnected.
2. Loosen terminal block screws and disconnect each AC power wire one by one. Attach pre-made labels to every conductor.
3. Locate the half-height PIM behind the power supply card on the left rack side.
4. Release the module locking tab, pull the unit straight outward. Do not twist to avoid damaging backplane connectors.
5. Inspect rack backplane pins for bending, oxidation or contamination. Clean dust with dry compressed air if needed.

New Module Installation (Estimated 18 minutes)

1. Wear anti-static gear before removing the new module from ESD packaging. Static discharge can damage internal circuits.
2. Align the module with rack guides, push vertically until the lock tab clicks firmly.
3. Route AC cables following the photo reference. Tighten terminal screws with moderate torque; avoid over-tightening to prevent terminal cracking.
4. Double-check wiring polarity and grounding connections.
5. Confirm no loose cables or stray hardware remain inside the rack enclosure.

Pre-power-on checklist: [ ] Module fully seated and locked [ ] All AC wiring matches original layout [ ] No short circuits between live and ground terminals [ ] Anti-static protection removed before closing cabinet

Power-On & Functional Testing (Estimated 25 minutes)

1. Restore power to the input circuit slowly. Measure AC voltage at module terminals with multimeter. Confirm voltage stays within 85–132 Vac range.

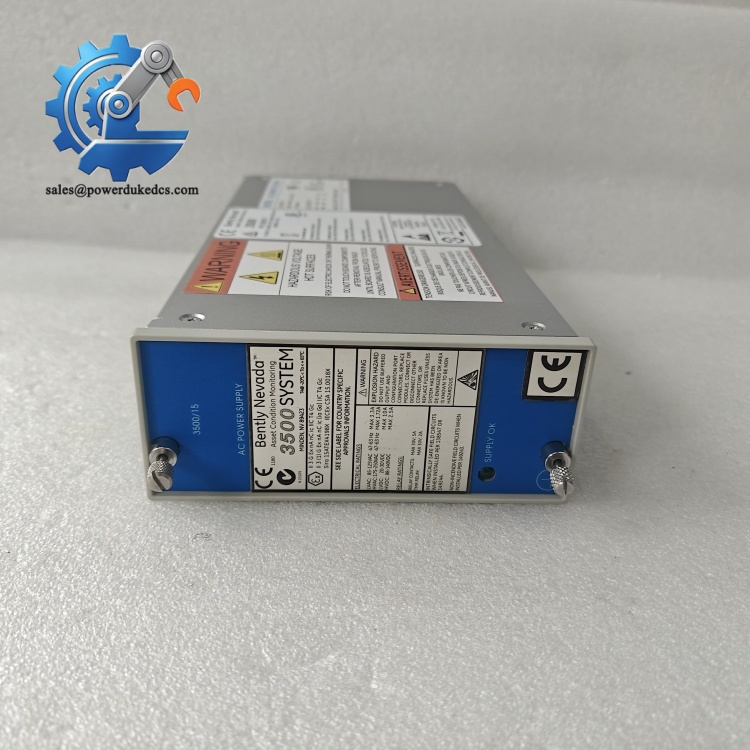

2. Observe power supply LED indicators on the front of paired 3500/15 power supply. RUN light should illuminate steadily.
3. Launch 3500 Rack Configuration Software. Scan the rack and confirm the system recognises the power input hardware.
4. Keep the rack running continuously for at least 30 minutes. Monitor for power alarms or abnormal temperature rise.
5. Update site maintenance log: record replacement date, module serial number and test results.

Troubleshooting hints:

• No power detected: Check blown internal fuse inside PIM module
• Intermittent power alarms: Recheck terminal tightness or input mains fluctuation
• System fails to identify module: Confirm proper seating of backplane connector


  Bently Nevada 3500/42M 176449-02

Frequently Asked Questions (FAQ)

1. Can I hot-swap the 3500/15 125840-02 PIM module without rack shutdown? No. This power input module carries main AC feed wiring. Removing it cuts power to the corresponding power supply. Even with redundant power setup, avoid live removal to prevent transient voltage spikes. Plan a scheduled shutdown.
2. Is this module interchangeable with high voltage AC PIM models? Direct replacement is not possible. 125840-02 only supports 85–132 Vac input. High voltage variants accept 175–264 Vac. Mismatched modules lead to power supply failure. Confirm site supply voltage before ordering.
3. How long is the warranty provided for this surplus module? We supply a 12-month functional warranty. All units complete full bench testing before shipment. We can share test photos or video upon request.
4. Can one PIM support two redundant power supplies in the same rack? No. Each power supply requires its dedicated power input module installed directly behind it. Redundant power configurations need two separate PIM units.
5. Does this hardware work on all versions of the 3500 rack chassis? It fits standard 3500/05 racks. Some early legacy rack revisions have minor backplane compatibility limits. Send your rack serial number if you need cross-verification before purchase.
6. What signs point to a failing PIM module on site? Typical symptoms include random power alarms, unstable rack startup, or blown input fuses. Visual inspection may reveal discoloration on the circuit board or loose internal solder joints.
7. Is ESD protection mandatory during installation? Absolutely. Circuit semiconductors on the board are sensitive to static. Many field failures happen because technicians skip anti-static procedures during replacement, especially in dry winter environments.
