Description
Product Core Brief

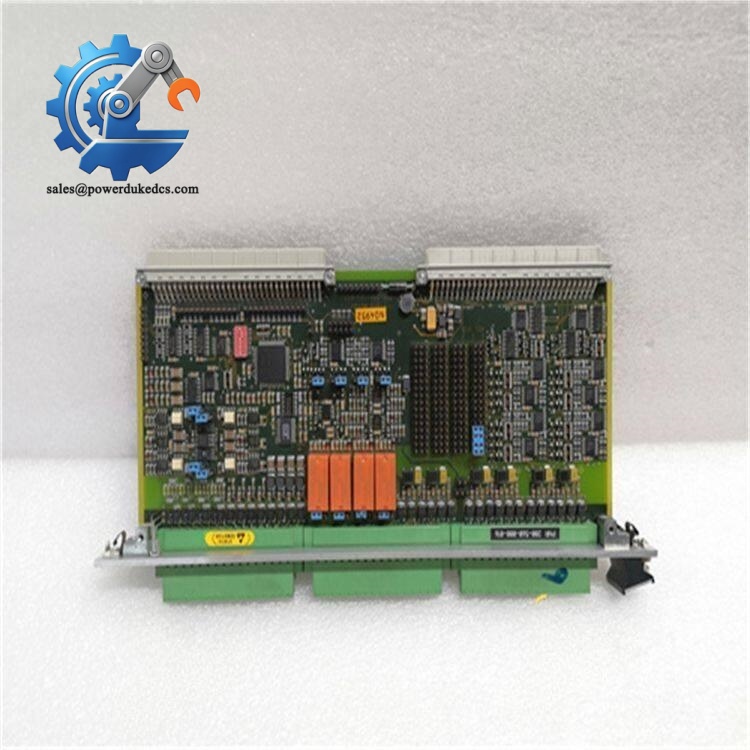

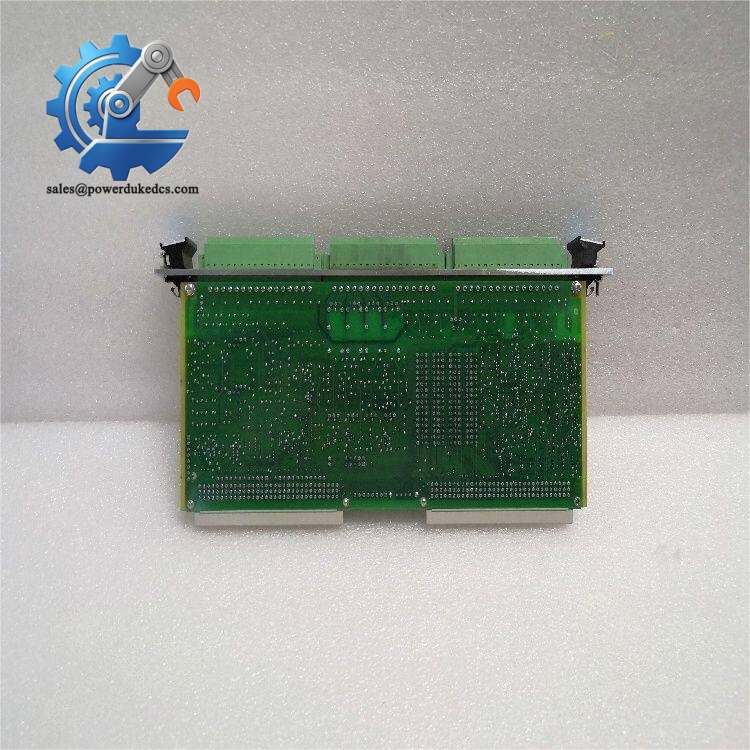

- Model: VM600 IOC4T (200-560-000-111 / 200-560-101-017)
- Brand: Vibro-Meter (Meggitt Sensing)
- Series: VM600 Machinery Protection & Condition Monitoring System
- Core Function: Serves as rear rack signal terminal interface, works paired with MPC4 vibration monitoring card
- Type: Signal Input/Output Terminal Card
- Key Specs: 4 dynamic signal channels + 2 tacho channels; Supports 0–10 V / 4–20 mA analog output; Built-in surge & EMI protection
- Condition: New Surplus, non-refurbished
⚠️ Notice: Original production discontinued, limited available inventory. 200-560-000-111 and 200-560-101-017 represent different hardware revisions; cross-replacement without verification carries operational risks.
Product Introduction
Key Technical Specifications
| Item | Parameter |
|---|---|
| Full Part Codes | 200-560-000-111, 200-560-101-017 |
| Matching Front Card | VM600 MPC4 (must be installed in adjacent front slot) |
| Signal Channels | 4 dynamic vibration channels; 2 tachometer / phase reference channels |
| Analog Output Options | 0–10 V DC, 4–20 mA (configurable via on-board jumpers) |
| Rack Installation | Rear slot of VM600 ABE04x / ABE056 rack, paired behind MPC4 |
| Internal Bus | Industry Pack IP interface between IOC4T and MPC4 |
| Operating Voltage | Powered by VM600 rack backplane supply |
| Operating Temperature | -20 °C ~ +60 °C |
| Storage Temperature | -25 °C ~ +70 °C |
| Protection | On-board surge suppression, EMC-compliant EMI filtering |
| Protection Class | IP20, for indoor control cabinet mounting |
| Compatible Software | VibroSight monitoring platform |
| Weight | Approx. 250 g |
Vibro-Meter 200-560-000-111 & 200-560-101-017
QC Testing SOP for VM600 IOC4T
- Warehouse Incoming Inspection
Verify serial number and full part number against factory packing documents. Inspect PCB for corrosion, scratches and rework traces. Check terminal connectors and mounting hardware for completeness.
- Live Bench Test
Test platform adopts original VM600 rack and matched MPC4 card. Complete power-on self-test; run IP bus communication handshake; simulate vibration and speed signal input for continuous 24-hour aging testing. Test photos or video can be supplied upon customer request.
- Electrical Performance Test
Carry out insulation testing with Fluke 115 multimeter. Verify each channel output meets factory specified voltage and current range.
- Hardware & Revision Recording
Record hardware revision printed on the module and read default configuration. Original jumper positions are photographed and archived before packing. We confirm compatibility if firmware or hardware adjustment is required.
- Final Packaging Inspection
Seal module inside anti-static bag, wrap with bubble film and pack into export carton. Attach QC Passed label marked with inspection date.
Field Installation Pitfall Guide
200-560-000-111 cannot be freely interchanged with 200-560-101-017. One maintenance case saw continuous channel fault alarms after unconfirmed replacement. Always copy the complete part number from your existing module before ordering.
IOC4T will not work independently. It must occupy the rear slot directly behind an MPC4 card inside the VM600 rack. Misaligned rack slot arrangement causes total communication failure.
Jumpers define analog output mode (voltage or 4–20 mA). Photograph jumper positions on the old unit before removal. Wrong jumper settings lead to incorrect signal output for DCS.
Input signal circuits are sensitive to electrostatic discharge. Wear anti-static wrist straps during disassembly. Low-humidity winter environments increase the risk of irreversible PCB damage.
Route sensor shield cables with single-end grounding inside cabinets. Dual-end grounding easily introduces industrial frequency interference and unstable vibration readings.
Vibro-Meter 200-560-000-111 & 200-560-101-017
Quick Conclusions
- VM600 IOC4T is dedicated rear terminal I/O card designed to work with VM600 MPC4 vibration monitoring cards.
- Two available part numbers belong to different hardware revisions. Confirm revision compatibility before replacement.
- All stocked modules complete continuous signal aging testing before shipment.
- Original manufacturing discontinued; inventory levels fluctuate, confirm stock availability prior to formal orders.
- Not interchangeable with IOC8T; IOC4T only supports up to four dynamic measurement channels.
FAQ
- Can I install IOC4T without matching MPC4 card?
No. IOC4T operates in slave mode and requires communication with front slot MPC4. It cannot run alone.
- Is cross-replacement allowed between 200-560-000-111 and 200-560-101-017?
Direct swap is not guaranteed. Share the revision information of your existing module so we complete compatibility verification.
- What warranty term is provided?
Standard 12-month warranty calculated starting from delivery date.
- Can test videos be provided before shipment?
We support power-on communication and signal simulation testing, and provide video records for customer confirmation.
