Vibro-Meter VM600 204-040-100-012 | API 670 Compliant Machinery Alarm Relay Card

Product Core Brief

Model: 204-040-100-012 (RLC16)
Brand: Vibro-Meter (Meggitt)
Series: VM600 Machinery Protection System
Core Function: Provides relay contact outputs for vibration alarm and trip signals of rotating equipment
Type: RLC16 Relay Output Module
Key Specs: Multiple programmable relay contacts, hot-swappable, compatible with VM600 ABE04 racks

Condition: New Surplus, not refurbished

⚠️ Original manufacturing discontinued, limited spare inventory

Product Introduction

Unplanned turbine trips often rely on reliable hardwired alarm contacts. The Vibro-Meter 204-040-100-012 RLC16 module mounts inside VM600 rack chassis to convert monitoring channel alerts into physical relay outputs. It works cooperatively with MPC4 monitoring cards to deliver hard contact trip signals for safety interlock circuits.

Compared with older relay boards for VM600, this RLC16 supports independent channel assignment for each relay point. It meets API 670 specification for turbomachinery protection. Relay status can be diagnosed remotely via rack backplane communication. Widely deployed on steam turbines, gas turbines and large process compressors within power plants and petrochemical facilities.

Key Technical Specifications

Parameter	Details
Part Number	204-040-100-012 (RLC16)
System Compatibility	VM600 Mk1 ABE04 series rack backplane
Module Type	Relay Output Module
Relay Configuration	Multi-channel programmable dry contact relays
Signal Function	Alarm alert, danger trip, module fault status output
Control Logic	Linked to MPC4 vibration monitoring threshold alarms
Communication	Backplane bus communication with rack controller
Feature Support	Hot swap, continuous self-diagnosis, relay status monitoring
Operating Temperature	-20 °C ~ +60 °C
Power Source	24 VDC rack backplane supply
Standard Compliance	API 670 turbomachinery protection requirements
Typical Application	Gas/steam turbine, compressor ESD & vibration protection interlock

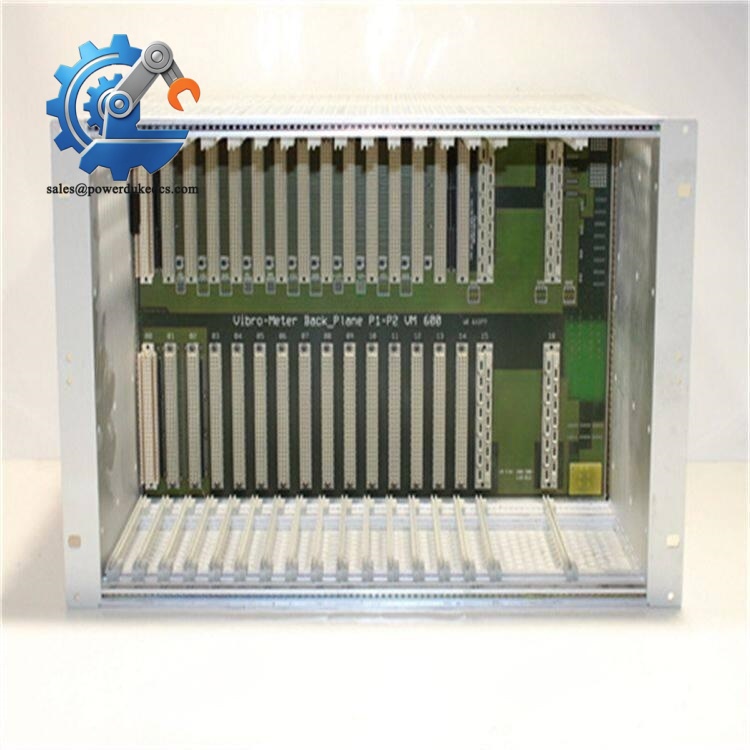

Vibro-Meter VM600 204-040-100-012

Quality Inspection Process

Incoming Verification

Cross-check serial numbers and factory labels. Complete visual inspection for circuit board corrosion, connector damage and component aging. Confirm no signs of prior field installation.
Live Bench Test

Install module on standard VM600 test rack. Run power-on self-test, backplane communication test, relay trigger simulation and continuous 24-hour aging test. We can supply test photos or video upon request.
Electrical Performance Test

Verify relay contact continuity, insulation resistance and switching stability under rated load. Record all diagnostic register feedback.
Firmware Recording

Read and archive onboard firmware version. Document default hardware jumper positions.
Final Packing

Passed modules are sealed with anti-static bags, wrapped with bubble film and packed into cartons. QC Passed label with inspection date attached externally.

Field Installation Pitfall Guide

Rack Backplane Version Mismatch

RLC16 204-040-100-012 targets VM600 Mk1 racks. Direct insertion into Mk2 racks may trigger communication failures. Confirm rack hardware revision before ordering. One maintenance case caused 1.5 days of site debugging due to incompatible rack platforms.
Incorrect Relay Logic Assignment

Take screenshots of original VM600 configuration before replacement. Wrong relay mapping will disable safety trip loops. Do not rely on memory to rebuild alarm logic.
Ignoring Relay Contact Load Limits

Relay contacts have defined maximum voltage and current ratings. Exceeding load capacity will burn contact points and cause missing trip signals.
ESD Damage Risk

Always wear anti-static wrist strap before handling circuit boards. Static discharge can damage onboard logic chips in low-humidity environments.
Insufficient Rack Power Budget

Each RLC16 adds extra power consumption. Reserve minimum 20% power margin for rack power supplies to avoid unstable relay operation under full load.

Quick Conclusion

Main usage: Generate hard relay alarm & trip outputs for VM600 turbomachinery vibration protection systems
Core advantage: Hot-swappable, remote diagnostic, compliant with API 670 hardwired safety logic
Suitable industries: Power generation, petrochemical compressor and turbine monitoring
Not recommended: VM600 Mk2 rack upgrade projects without compatibility validation
Inventory reminder: OEM production stopped, available stock limited

FAQ

Can RLC16 204-040-100-012 work alone without MPC4 monitoring cards?

No. It requires signal threshold data sent from front-end monitoring modules such as MPC4.
Can this module support SIL safety loop application?

Check specific safety version variant. Standard RLC16 needs project safety assessment before being used in SIL rated trip circuits.
Can you provide bench test reports before shipment?

Yes. Complete relay switching test records and inspection photos can be provided after QC testing.
What warranty coverage is offered?

12-month standard warranty starting from delivery date.
