VIBRO-METER VM600 RPS6U 200-582-600-013 | Multi-Rail DC Output Power Supply for Vibration Protection Cards

Product Core Brief

Model: VM600 RPS6U 200-582-600-013
Brand: VIBRO-METER (Meggitt)
Series: VM600 Mk1 Machinery Protection System
Core Function: Supplies regulated multi-rail DC power to all plug-in modules inside VM600 ABE04x rack
Type: Rack Power Supply Module
Key Specs: 300 W rated power; 90–264 VAC wide input; Hot-swappable; Supports redundant parallel operation
Condition: New surplus, fully bench tested before shipment

⚠️ Original manufacturer production discontinued; limited spare inventory available

Product Introduction

Any VM600 machinery protection rack cannot sustain stable operation without a reliable power backbone, and that is the role of the VIBRO-METER VM600 RPS6U 200-582-600-013. It serves the legacy VM600 Mk1 platform, widely deployed on steam turbines, gas compressors and generators across power plants and oil & gas sites.

Unlike signal acquisition or CPU boards, this unit delivers +5 VDC, +12 VDC and -12 VDC power to the rack backplane for CPUM, MPC4, IOC4T and other monitoring cards. It supports hot swap and dual redundant installation to avoid full rack shutdown during maintenance. The module maintains stable output within -20 °C to +70 °C, matching cabinet operating conditions of rotating equipment protection systems.

Key Technical Specifications

Item	Parameter
Full Part Number	VM600 RPS6U 200-582-600-013
Official Name	6U Rack Mount Power Supply Unit
Compatible Rack	VM600 Mk1 ABE04x Series Rack
Input Type	AC Wide Range Input
Input Voltage	90 – 264 VAC, 47 – 63 Hz
Rated Output Power	300 W
Output Rails	+5 VDC, +12 VDC, -12 VDC
Installation Feature	Hot-swappable, supports parallel redundant configuration
Built-in Protection	Overvoltage, short-circuit, overcurrent electronic limiting
Operating Temperature	-20 °C ~ +70 °C
Relative Humidity	5% – 95%, non-condensing
Front Indicator	AC power status LED
Mechanical Form	Standard 6U VM600 rack slot installation

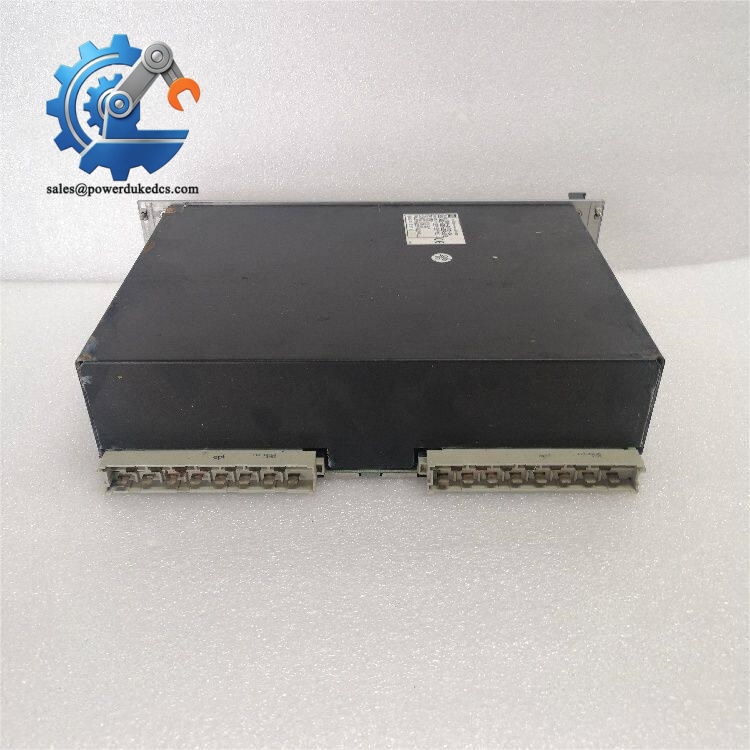

VIBRO-METER VM600 RPS6U 200-582-600-013

Product Quality Control Process

All incoming RPS6U units follow standardized inspection procedures prior to delivery.

Incoming Inspection

Verify serial number records and visual condition. Check for PCB corrosion, connector damage, or traces of prior disassembly. Confirm front panel indicator LED works normally.
Live Bench Test

Mount the module inside a complete VM600 test rack. Complete power-on testing, steady-state load testing, and backplane power rail verification. Run continuous 24-hour ageing test to record temperature stability. Test photos or video can be provided on request.
Electrical Performance Test

Insulation resistance test with 500 V megohmmeter. Check ground continuity and confirm no abnormal leakage current under full load.
Hardware Version Record

Document hardware revision and internal component status. No firmware adjustment required for this power module.
Final Packaging & QC Sign-off

Passed modules are sealed in anti-static bags, wrapped with bubble film and packed into cartons. Each unit is labelled with a QC Passed tag showing inspection date.

Field Pitfall Guide for Replacement

Power Capacity Calculation Mistakes

Each rack’s total power draw depends on installed cards. If you load the rack close to the 300 W limit, single RPS6U operation carries overload risk. One site case: maintenance staff added extra MPC4 cards without recalculating load, triggering intermittent rack resets under high temperature.
Redundancy Configuration Rules

Two RPS6U modules can run in parallel for redundancy. Always confirm load balance after installation. Do not mix 300 W and upgraded 330 W versions in one redundant pair.
Hot-Swap Operation Precaution

Confirm the front panel AC LED goes out before pulling out the unit. Abrupt removal while heavily loaded may cause brief voltage dips and trigger system alarms.
ESD Protection

Always wear anti-static wristbands during handling. Internal power regulation circuits are sensitive to electrostatic discharge. Risks rise sharply in dry winter environments.
Version Matching Warning

200-582-600-013 is AC input 300 W variant. Do not confuse it with DC input RPS6U part numbers. Wrong model installation leads to permanent power supply failure.

Frequently Asked Questions

Q1: Can this RPS6U fit VM600 Mk2 racks?

A1: No. It is designed exclusively for VM600 Mk1 ABE04x racks. Mk2 systems adopt revised RPS6U Mk2 hardware and are not mechanically interchangeable.

Q2: Is this factory sealed brand new original unit?

A2: OEM serial production has stopped. Available stock is new surplus, fully load tested. Complete test documentation can be supplied.

Q3: What coverage does the warranty include?

A3: 12-month warranty starting from delivery date. The warranty excludes damage caused by incorrect mains wiring, lightning surge, static shock or overloading on site.

Q4: Can I install only one RPS6U in the rack?

A4: Single unit installation is technically possible, but removes power redundancy. Critical turbomachinery protection loops are recommended to use dual redundant power supplies.

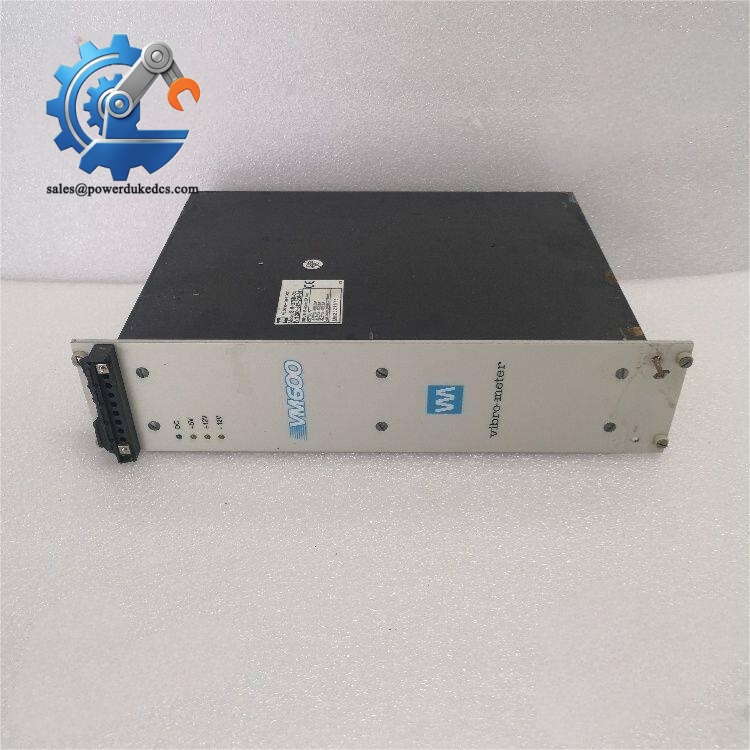

VIBRO-METER VM600 RPS6U 200-582-600-013
