VIBRO-METER VM600 CMC16 | Tacho Input Supported Machinery Monitoring Module for Power & Petrochemical

Meta Description

VIBRO-METER VM600 CMC16 (200-530-025-014 / 200-530-111-013) is a 16-channel condition monitoring card for VM600 rack systems. It collects vibration, speed and process signals for rotating machinery predictive maintenance. Every unit undergoes full bench testing, limited stock available since original production discontinued.

Product Core Brief

Model: VM600 CMC16, variants 200-530-025-014, 200-530-111-013
Brand: VIBRO-METER (Meggitt Group)
Series: VM600 Rack-based Machinery Monitoring System
Core Function: Capture dynamic vibration and tacho signals to conduct real-time machinery condition analysis
Type: Condition Monitoring Card (CMS Acquisition Module)
Key Specs: 16 configurable dynamic channels, first 4 channels support tacho input, 24-bit ADC, onboard FFT calculation

Condition: Bench-tested surplus stock, fully functional verified

⚠️ OEM production discontinued, inventory quantity limited

Product Introduction

Most turbine and compressor predictive maintenance systems rely on stable high-speed signal acquisition, and VM600 CMC16 acts as the core data collection unit inside the VIBRO-METER VM600 platform. It works cooperatively with CPUM mainboard and IOC16T terminal cards to process sensor signals from rotating equipment.

Unlike protection-focused MPC4 modules that handle emergency trips, the CMC16 targets long-term trend tracking and fault diagnosis. It runs synchronous order tracking and high-resolution FFT on board, capturing subtle vibration variations that reveal bearing degradation or rotor imbalance. The module supports continuous data logging within -25 °C ~ +65 °C ambient range, fitting power plant and offshore petrochemical site environments.

Key Technical Specifications

Parameter	Specification
Part Numbers	200-530-025-014, 200-530-111-013
Channel Configuration	16 dynamic input channels; Channels 1–4 configurable as tacho inputs
ADC Resolution	24 bit
Signal Frequency Range	0.16 Hz – 10,000 Hz
Onboard Processing	High-resolution FFT up to 6400 lines, synchronous / asynchronous sampling
Supported Sensors	Accelerometers, proximity probes, velocity transducers, pulse tacho sensors
Backplane Bus	VME bus for VM600 ABE04 series rack
Operating Temperature	-25 °C ~ +65 °C; Storage: -40 °C ~ +85 °C
Power Supply	24 VDC supplied via VM600 rack backplane
Communication	Interact with VibroSight / VM600 CMS software
Dimensions	6U VME card form factor
Weight	Approx. 0.45 kg

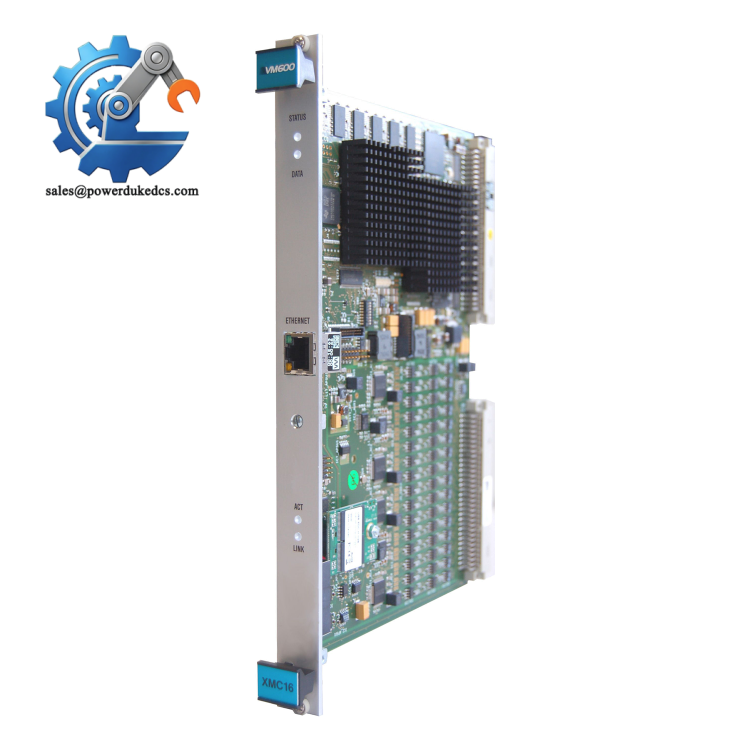

VIBRO-METER VM600 CMC16

Quality Control Process

Inbound Traceability & Visual Inspection

Check serial number marking, front panel label and PCB integrity. Inspect for circuit corrosion, repair traces, bent pins or aging solder joints. Verify matching hardware revision printed on the board.
Live Bench Functional Test

Install CMC16 inside standard VM600 test rack with CPUM controller. Complete power-on initialization, backplane communication handshake, all-channel signal simulation and 24-hour continuous running test. We store all waveform and communication log records.
Electrical Performance Testing

Insulation resistance and continuity testing. Confirm no abnormal leakage under standard test voltage; check front panel LED indicator status.
Firmware Recording & Compatibility Confirmation

Read and record onboard firmware revision. We can match firmware version according to customer’s existing VM600 system if requested before shipment.
Final QC & Secure Packaging

QC engineer signs off all passed test items. The module is sealed in anti-static shielding bag, wrapped with bubble film and packed into rigid carton. QC Passed label with test date is attached. Test photos or video records can be provided on demand.

Field Replacement Pitfall Guide

❗ Hardware Revision & Firmware Compatibility Risk

200-530-025-014 and 200-530-111-013 represent different hardware revisions. Even if they share the name CMC16, mismatched firmware will cause communication failures or missing channel data after replacement.

Tip: Record firmware version of your original module before procurement.

Case Reference: One gas turbine project spent three days troubleshooting missing vibration data only because the new module hardware revision could not work with old CPUM firmware.

❗ Channel Configuration & Tacho Setting Error

Channels 1–4 support tacho input, while channels 5–16 only accept dynamic vibration signals. Do not assign tacho function to channels 5–16. Always take photos of original module software channel configuration before powering down for replacement.

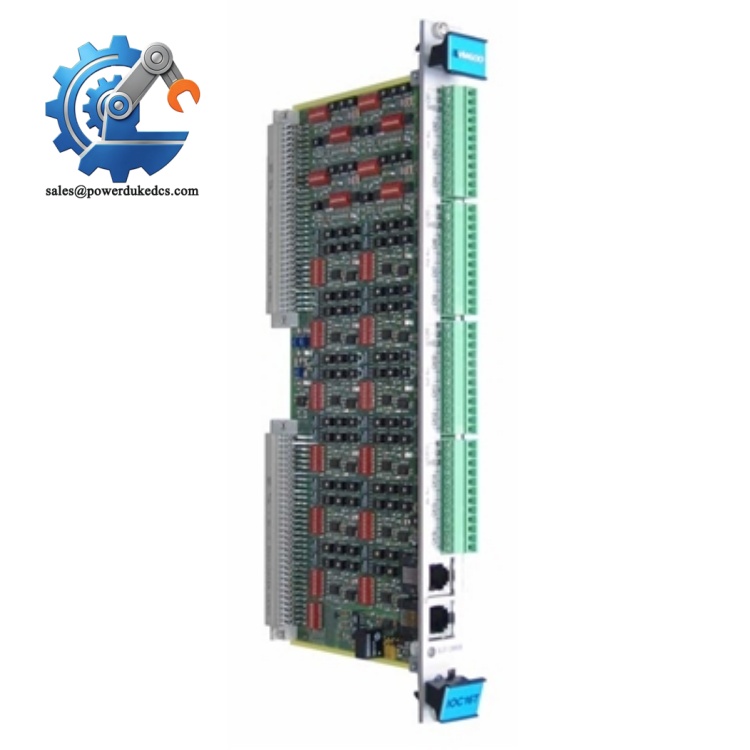

❗ Rear IOC16T Terminal Matching

CMC16 works with IOC16T rear transition cards. Confirm wiring definition between module and terminal card. Improper wiring will lead to weak signal or sensor power supply loss. Do not directly copy wiring schemes from other VM600 series modules.

❗ Strict ESD Control During Installation

The high-precision ADC circuit is sensitive to static electricity. Wear anti-static wristband and operate on anti-static mat. Dry winter environments increase static damage risk. We have received returned modules damaged by bare-hand operation.

❗ Rack Slot Power Sequence

Insert or extract the module only when the VM600 rack is powered off. Hot swapping may damage VME backplane or the acquisition card.

VIBRO-METER VM600 CMC16

Quick Conclusion

VM600 CMC16 is exclusive to VIBRO-METER VM600 rack system; it cannot operate independently or work with third-party PLC platforms.
It focuses on condition monitoring and vibration diagnosis, not machinery protection; deploy MPC4 if safety trip logic is required.
Confirm part number hardware revision, firmware version and matched IOC16T rear card before ordering replacement units.
OEM manufacturing has stopped, available stock is limited; lead time depends on inventory status.
Every spare module is fully bench tested before delivery, test documentation available upon request.

FAQ

Q1: What is the difference between 200-530-025-014 and 200-530-111-013?

A1: They are different hardware revisions of CMC16. Internal circuit layout and compatible firmware sets differ. You need to confirm compatibility with your existing CPUM mainboard before purchase.

Q2: Can CMC16 execute machinery protection trip functions?

A2: No. CMC16 collects data for monitoring and diagnosis. VM600 MPC4 modules handle protection alarm and shutdown outputs.

Q3: Which software can configure this module?

A3: VM600 CMS software or VibroSight series software, matching the system firmware version.

Q4: What warranty coverage is offered?

A4: 12-month warranty after delivery, covering functional defects under standard operating environment. Damage caused by wrong wiring, static discharge or improper installation is excluded.
