VIBRO-METER VM600 IOCN (200-566-000-112 / 200-566-101-013) is a core I/O communication module for VM600 machinery protection systems. Designed for vibration and condition monitoring on rotating equipment, new original in stock, fully tested, with complete after-sales support for industrial predictive maintenance.
Product Core Brief
-
Model: VM600 IOCN (200-566-000-112 / 200-566-101-013)
-
Brand: VIBRO-METER (Meggitt)
-
Series: VM600 Machinery Protection System Series
-
Core Function: Transmits field vibration and process data to system CPU and upper monitoring software
-
Type: System I/O Communication & Interface Module
-
Key Specs: High-speed data transmission, system bus compatibility, multi-signal acquisition adaptation
-
Condition: New Surplus, non-refurbished, factory original stock
-
Warranty: 12 months professional industrial after-sales warranty
Product Introduction
Every unplanned shutdown of rotating machinery stems from missing real-time condition data — and the VIBRO-METER VM600 IOCN acts as the critical data bridge for industrial monitoring systems. It is a dedicated interface module built exclusively for the VM600 machinery protection platform, deployed in system racks to connect field sensors and main control units.
This IOCN module undertakes full-cycle signal collection, sorting and transmission tasks for vibration, displacement and speed monitoring data. It maintains stable data synchronization under long-term industrial operating conditions and supports seamless interaction between field acquisition cards and system hosts. Compared with common universal I/O modules, its dedicated protocol matching cuts data transmission errors and improves the overall real-time performance of the monitoring system, making it a core spare part for petrochemical, power and compressor unit protection systems.
Key Technical Specifications
|
Applicable System
|
VIBRO-METER VM600 Machinery Protection System
|
|
Module Function
|
Field signal transmission, system bus communication, data forwarding
|
|
Compatible Signals
|
Vibration, shaft displacement, rotating speed, process analog signals
|
|
Operating Temperature
|
-20°C to +65°C industrial grade operating range
|
|
Transmission Feature
|
Low-latency, high-reliability real-time data transmission
|
|
Installation Method
|
Standard VM600 rack hot-swappable installation
|
|
Protection Grade
|
Industrial anti-interference design for factory electromagnetic environments
|
|
Product Coding
|
200-566-000-112 / 200-566-101-013
|
|
Stability Advantage
|
Long-term continuous operation without data packet loss
|
|
Typical Scenarios
|
Steam turbines, centrifugal compressors, large pump sets, fan units
|

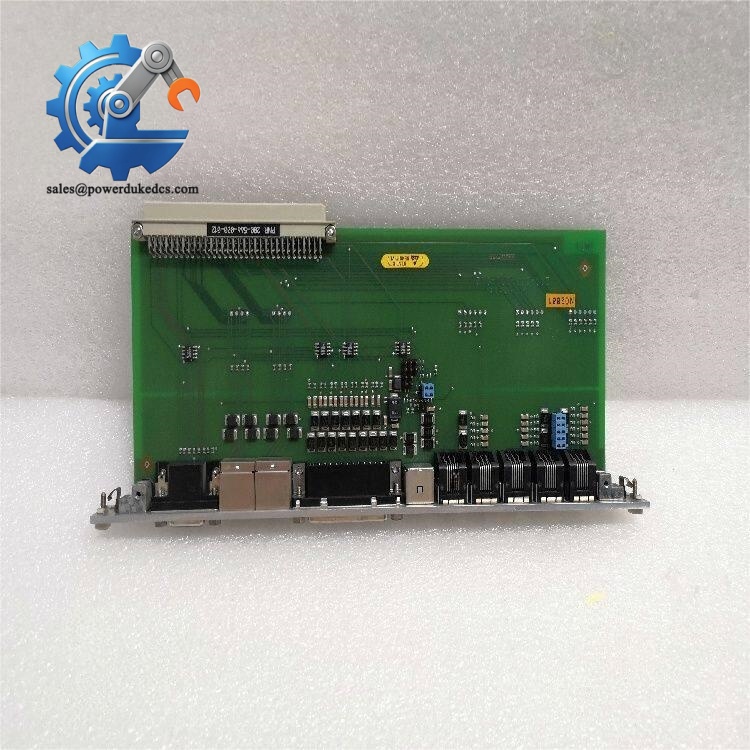

VIBRO-METER VM600 IOCN
Professional QC Testing SOP
All VIBRO-METER VM600 IOCN modules undergo strict standardized testing before delivery to eliminate hidden risks of stock industrial spare parts, with full test records available for customer verification and filing.
1. Warehouse Entry Inspection
Verify original factory packing documents and dual part number consistency to confirm genuine sourcing. Inspect the module circuit board and shell for no oxidation, pin corrosion, scratch damage or disassembly traces. Match factory certificates and accessory documents completely before warehousing.
2. On-Site Live Function Test
Install modules on a standard VM600 test rack for power-on self-test and bus communication handshake tests. Simulate multi-channel field sensor signal input to verify normal data reception and forwarding. Each module runs 24+ hours of continuous aging tests to confirm stable communication without disconnection or data deviation.
3. Electrical Parameter Detection
Adopt Fluke 115 professional testing equipment to complete insulation resistance and grounding continuity tests. All electrical indicators meet industrial safety standards, avoiding on-site short circuit or signal interference risks after replacement.
4. Firmware & Protocol Verification
Record the original factory firmware version and verify built-in communication protocol matching. Confirm no configuration deviation to ensure full compatibility with official VM600 system versions.
5. Final Packaging & Delivery Inspection
Passed modules are sealed with anti-static bags and wrapped with shockproof bubble film. Professional inspectors sign off and paste QC Passed labels. Test videos and reports can be provided upon customer request.

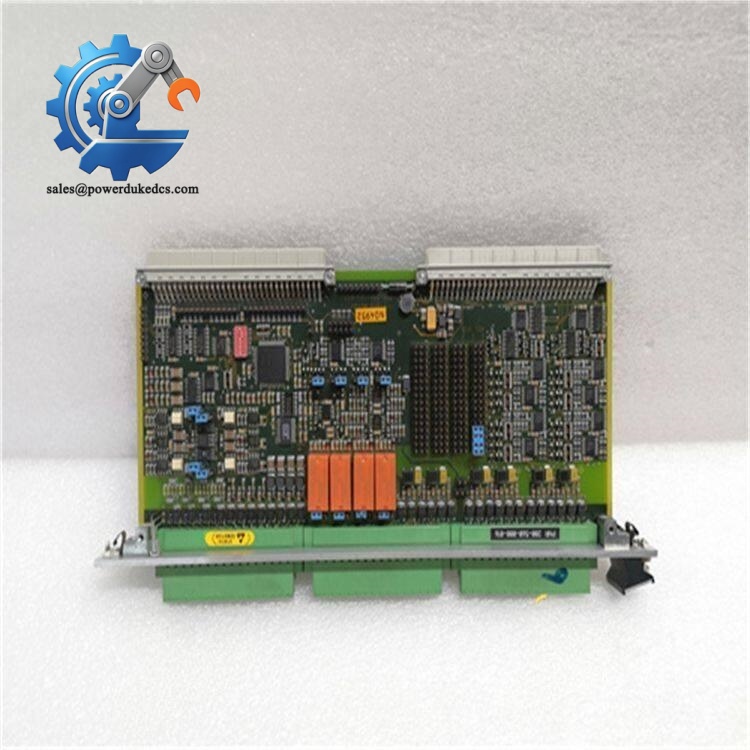

VIBRO-METER VM600 IOCN
Field Replacement Pitfall Guide
Most system communication faults after module replacement come from operational details rather than product quality. These on-site maintenance summaries help engineers avoid repeated debugging and equipment downtime.
❗ Part Number Version Mismatch
The two codes 200-566-000-112 and 200-566-101-013 correspond to different firmware batches. Mixing versions will cause system bus handshake failure. I have seen site cases where mismatched versions led to the whole monitoring rack failing to upload data. Always match the exact part number of the original module.
❗ Hot-Swap Misoperation
Although the module supports hot swap, frequent plugging and unplugging in high-electromagnetic interference environments may cause interface circuit damage. Disconnect temporary bus power when replacing in strict industrial maintenance specifications to protect the backplane slot.
❗ Static Damage During Replacement
The IOCN communication chip is extremely sensitive to static electricity. Dry winter workshops greatly increase ESD damage risks. Unprotected operation will lead to module communication failure. Wear anti-static wristbands and operate on anti-static mats throughout replacement.
❗ Backplane Slot Dust Interference
Long-term operating system racks accumulate dust in slots. Direct insertion of new modules will cause poor contact and intermittent signal drop. Clean the backplane slot contacts before installation to ensure stable docking.
❗ System Configuration Not Synchronized
Individual system parameter configurations are bound to the module firmware. Direct replacement without configuration backup and synchronization will trigger system false alarms or data loss. Export and restore configuration files after replacement.
Quick Conclusion
-
VIBRO-METER VM600 IOCN (200-566-000-112/200-566-101-013) is a dedicated communication I/O module for VM600 industrial machinery protection systems.
-
New original surplus stock with complete aging and communication tests, supporting fast delivery for emergency system maintenance.
-
Low-latency data transmission and anti-interference design ensure long-term stable operation of equipment condition monitoring.
-
Strict part number and firmware matching is required; not universal for non-corresponding VM600 batch systems.
FAQ
Q1: What is the main function of the VM600 IOCN module?
It is responsible for receiving on-site vibration, displacement and speed sensor signals, and forwarding valid data to the VM600 system CPU and upper computer to realize real-time equipment condition monitoring and fault early warning.
Q2: Are the provided modules genuine new original parts?
All modules are new surplus original products without refurbishment or repair. Each unit passes 24-hour aging test and full communication function verification, with complete test documents available.
Q3: What is the delivery and after-sales policy?
In-stock products can be shipped within 1–3 working days. A 12-month full warranty is provided. Free maintenance and replacement are supported for non-human-induced faults during the warranty period.
Q4: Why does the system fail to recognize the new IOCN module?
It is mainly caused by mismatched part numbers, inconsistent firmware versions or poor backplane contact. Confirm full code consistency with the original module and clean slot contacts before installation.
Q5: Can test reports and qualification certificates be provided?
Yes. We can provide professional function test reports, aging records and product qualification documents to support customer project inspection and spare parts filing.
