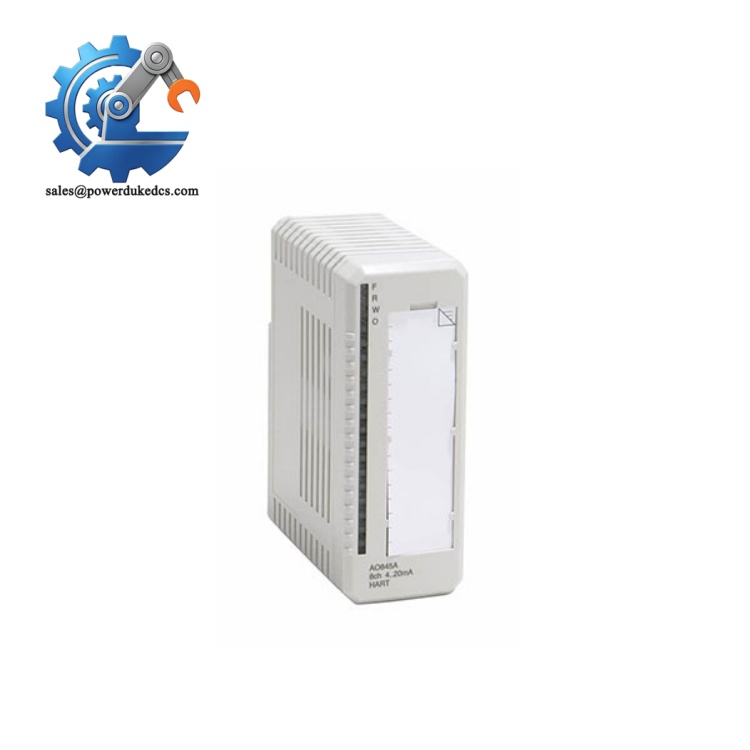

- Model: AO845, Part Code: 3BSE045544R1, Brand: ABB
- Part Type: S800 I/O Analog Output Module
- Lifecycle status: OEM legacy hardware, limited new surplus stock
- System compatibility: AC 800M Controllers, System 800xA DCS platform
- Channel configuration: 8 galvanically isolated analog output channels
Technical Introduction (Structure C Selected)
Many process plants experience unstable valve positioning signals when using non-isolated output hardware. Common faults include signal drift, crosstalk between control loops and inaccurate actuator positioning caused by ground loop interference.AO845 is an S800 I/O analog output module designed to convert digital setpoint values from the controller into standard analog signals for field actuators. Each channel features galvanic isolation to suppress electrical noise present within industrial plant wiring. The module communicates to AC 800M processors via PROFIBUS DP, enabling distributed control for valves, variable drives and local panel indicators.
Core Technical Specifications
| Parameter | Value |
|---|---|
| OEM Part Number | AO845 / 3BSE045544R1 |
| Channel Count | 8 isolated analog outputs |
| Standard Signal Range | 4–20 mA current signal |
| Internal Bus | S800 I/O internal backplane bus |
| Field Communication | PROFIBUS DP |
| Isolation | Galvanic isolation channel-to-channel and field to logic side |
| Mounting | Plug-in onto S800 I/O terminal unit |
Supported environmental ratings are documented within the official ABB S800 hardware datasheet.
ABB AO845 3BSE045544R1
Field Engineer’s Tech Notes
- AO845 requires matching terminal unit for field wiring. Mismatched terminal base types prevent proper signal routing and can damage module output circuits.
- Always confirm actuator load impedance before commissioning. Load resistance exceeding module specifications leads to clipped output signals and unstable control loop performance.
Adaptive QA & Testing Protocol
Every AO845 unit is installed onto a corresponding terminal unit during bench testing. Testers establish PROFIBUS communication with an AC800M controller, send setpoint values to each output channel, and verify stable 4–20mA current output using precision measurement equipment. Channel isolation and fault indication logic are also validated. Test records or short demonstration clips can be provided upon buyer request.
Buyer’s FAQ
Q: Can serve as drop-in swap for older AO810 analog output modules?A: Physical form factor differs. Terminal unit and hardware configuration settings require modification; direct plug-and-play replacement is not possible.
Q: What condition stock is available for ?A: Inventory includes new surplus factory sealed and fully tested used units. Confirm required condition before placing orders.
Q: How long is the warranty on supplied modules?A: All bench verified units carry a standard 12-month warranty. Damage from field wiring errors and overvoltage transients falls outside coverage.
Q: Is hot swapping supported while the I/O station remains powered?A: Hot swap functionality depends on terminal unit variant and firmware revision. Verify site documentation before live module exchange.
