Description
Product Core Brief
-

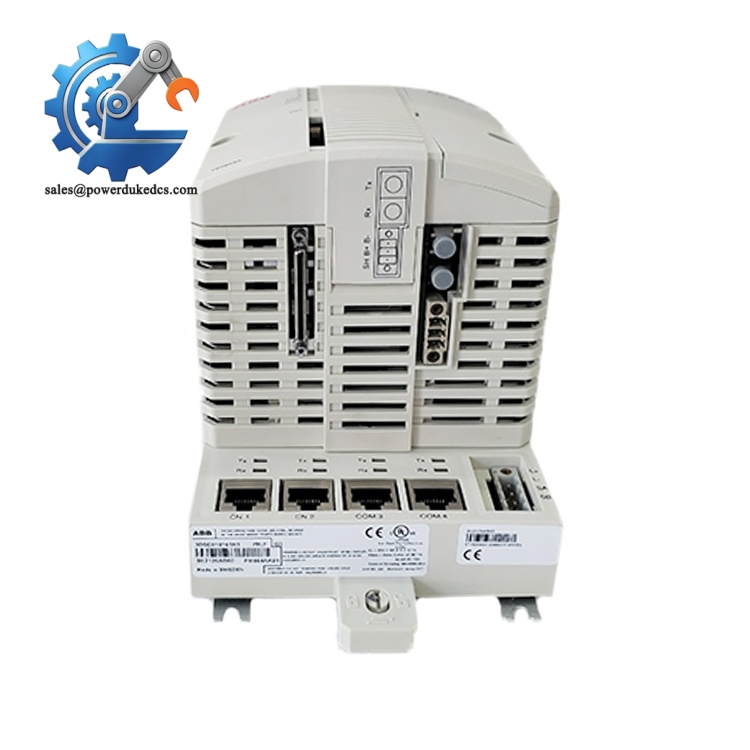

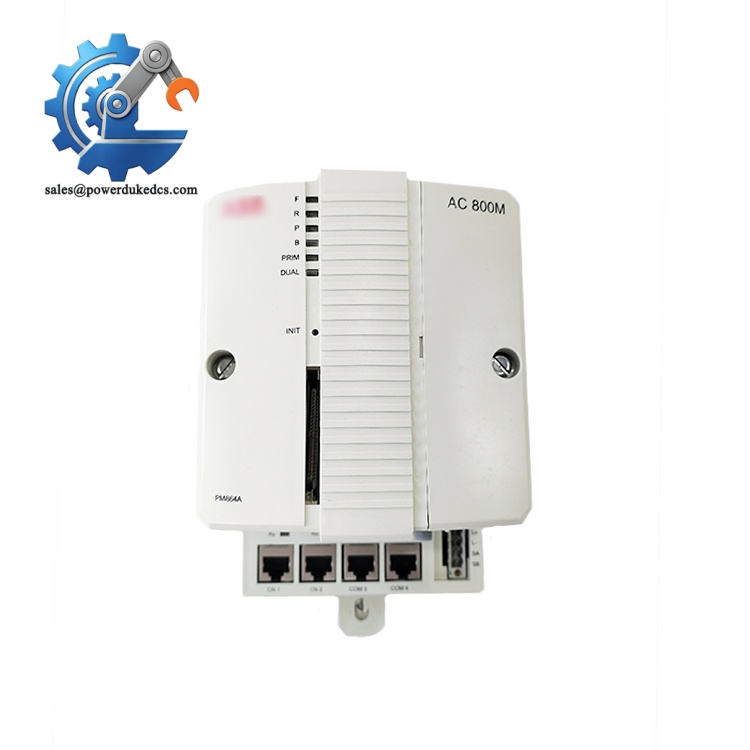

Model: PM865 3BSE030193R1
-
Brand: ABB
-
Series: AC800M DCS System
-
Core Function: Executes real-time process logic and system coordination for industrial control systems
-
Type: DCS Processor Controller Module
-
Key Specs: 24 VDC operating voltage, multi-protocol communication support, industrial hazardous area certification
-
Condition: New Surplus, non-refurbished, full factory integrity
-
Status: ⚠️ Discontinued original model, limited stock available
Product Introduction
For plant maintenance engineers managing aging ABB AC800M DCS systems, the ABB PM865 3BSE030193R1 stands as a critical core component for stable process operation. This processor module serves as the main control brain of mid-range AC800M automation architectures, handling logic execution, field signal processing, and upper system data interaction across production lines.
Built for long-term industrial continuous operation, this module delivers stable scanning cycles and reliable data processing performance. It supports mainstream industrial communication protocols and holds multiple marine and hazardous area certifications, making it adaptable for petrochemical, power, and marine automation scenarios. Field-verified for over a decade, it maintains consistent operational stability with an MTBF rating exceeding 50,000 hours under standard industrial conditions. Unlike entry-level controllers, it balances processing efficiency and power consumption to reduce long-term system operating costs.
Key Technical Specifications
|
Parameter Item
|
Technical Value
|
|---|---|
|
Full Model Number
|
PM865 3BSE030193R1
|
|
Applicable System
|
ABB AC800M DCS System
|
|
Operating Voltage
|
24 VDC ±10%
|
|
Communication Interfaces
|
RS-232, RS-485, CAN Bus
|
|
Certification Standards
|
UL508, cULus Class 1 Zone 2, Marine ABS/BV/DNV-GL
|
|
Environmental Compliance
|
RoHS (EN 50581:2012), WEEE Directive
|
|
Installation Method
|
Standard DIN Rail Mounting
|
|
Operating Temperature Range
|
0°C to +60°C (standard industrial environment)
|
|
Anti-Interference Level
|
Industrial EMC Grade
|
|
Average Service Life
|
MTBF ≥ 50,000 hours
|

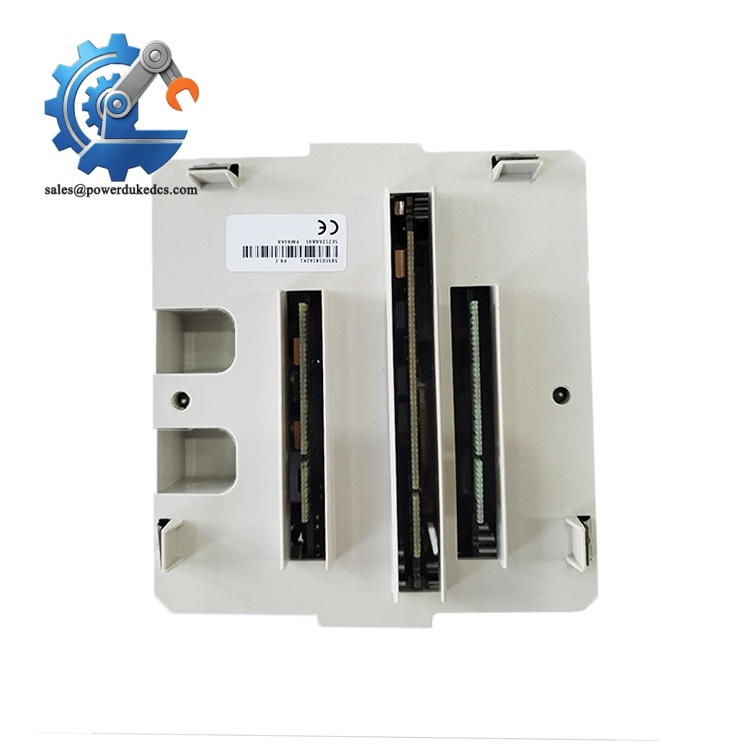

ABB PM865 3BSE030193R1
Installation & Configuration Guide
Phase 1: Pre-Installation Preparation (10 Minutes)
⚠️ Safety Priority
Notify production teams of scheduled downtime and switch all on-site equipment to a safe stop state. Cut off the entire control system power supply including UPS backup power. Wait 5 full minutes to ensure internal capacitor discharge to avoid electric shock or module burnout.
Tool Preparation
Prepare ESD anti-static wristband and mat, PH1 cross screwdriver, Fluke 115 multimeter, label markers, and a mobile phone for configuration photo recording.
Data Backup
Export the complete running program to USB and cloud storage. Take clear photos of the old module’s DIP switch positions, terminal wiring layout, and overall rack arrangement for accurate configuration replication.
Phase 2: Old Module Removal (8 Minutes)
1. Unfasten the front snap cover of the controller module gently without prying hard.
2. Mark each cable terminal number with labels, then loosen terminal screws counterclockwise and detach wires steadily.
3. Press the bottom DIN rail buckle with a flat screwdriver, pull the module outward vertically to separate it from the backplane connector.
4. Clean backplane pins with compressed air if dusty; check for bent or oxidized pins. Keep old configuration stickers for reference before removal.
Phase 3: New Module Installation (12 Minutes)
1. Wear anti-static gear fully before taking the new ABB PM865 module out of the ESD bag.
2. Double-check the full model 3BSE030193R1 to confirm model consistency with the replaced unit.
3. Replicate DIP switch and terminal resistor settings strictly according to old module photos. Verify node address and baud rate parameters match on-site system requirements.
4. Align the module with the backplane anti-reverse interface, press vertically until a click sound confirms locking. Ensure the module is flush with adjacent units without tilt.
5. Restore all wiring per labeled records, fasten terminal screws with moderate torque, and tug wires lightly to confirm firm connection.
Self-Check List: DIP settings correct ✅, all cables connected ✅, module locked firmly ✅, no residual tools in rack ✅

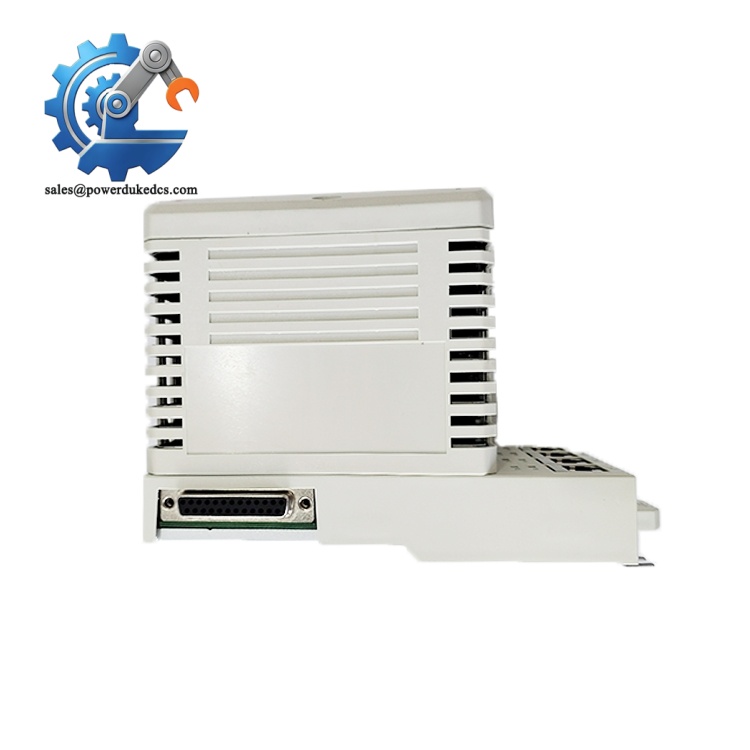

ABB PM865 3BSE030193R1
Phase 4: Power-On & Functional Testing (15 Minutes)
Test 24 VDC power supply voltage with a multimeter to confirm it stays within the standard range and no short circuit exists between power and ground terminals.
Power on the control rack first, observe LED status indicators: steady green RUN light means normal startup; flashing red ERR light indicates abnormal initialization requiring troubleshooting.
Connect Control Builder software to scan network devices, confirm the new module is identified with matching IP address and firmware version. Download the pre-backed up program and compile completely.
Simulate on-site I/O signal triggering and full process cycle operation to verify normal communication with HMI and SCADA systems. Keep the system running stably for over 30 minutes with no alarm prompts before completing replacement.
Frequently Asked Questions (FAQ)
1. Will firmware version mismatch cause communication failure after replacing PM865 3BSE030193R1?
Yes, this is a very common on-site issue. We once encountered a site where engineers replaced the module directly without checking firmware, resulting in persistent communication timeout alarms. Minor protocol differences between old and new firmware versions will trigger system recognition failures. Always record the original firmware version before replacement and request matched firmware from suppliers; downgrade or upgrade firmware if needed before installation.
2. Can I hot-swap this ABB PM865 controller module during system operation?
Not recommended for conventional AC800M system configurations. Though the module supports partial hot-plug protection, backplane bus signal interruption will cause system logic suspension and production line jitter. Complete power-off replacement remains the safest and most stable operation method for on-site maintenance.
3. What is the difference between PM865 and PM864 modules in actual use?
PM865 features optimized power consumption and enhanced bus anti-interference performance compared with PM864. It adapts better to high-electromagnetic-interference industrial scenarios such as power plants and chemical workshops. The two modules share compatible installation dimensions and backplane interfaces, supporting direct physical replacement with minor program parameter calibration required.
4. Does this new surplus module come with complete quality assurance?
All our ABB PM865 3BSE030193R1 modules undergo full functional testing including 24-hour continuous aging test, insulation resistance test (over 10 MΩ at 500V), and communication handshake verification. We provide official test reports and support video inspection before delivery, with a standard 12-month after-sales warranty.
5. Why do I need to recheck DIP switches even for identical model replacement?
Factory default DIP settings do not match all on-site system configurations. Terminal resistance and node address defaults may conflict with existing bus settings. We have seen multiple rework cases caused by skipped configuration checking. Always copy old module settings one-to-one — this step saves nearly 90% of post-replacement debugging time.
6. Is the PM865 3BSE030193R1 model completely discontinued by ABB?
Yes, this model has been officially discontinued by ABB with no new factory production. Current available stock is genuine new surplus inventory. Users with aging AC800M systems are advised to arrange last-time-buy stocking in advance to avoid future stock-out maintenance risks.
