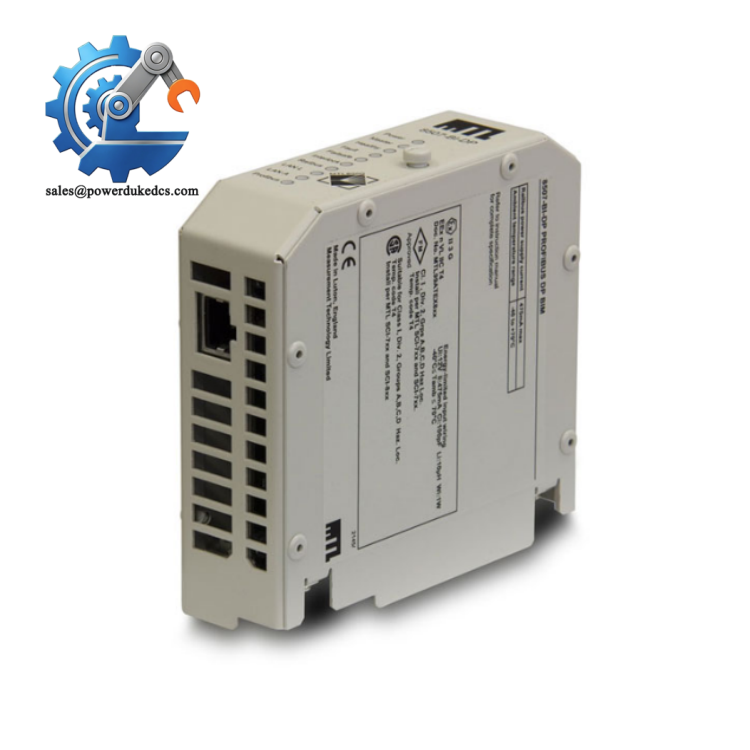

GE 8507-BI-DP

GE 8507-BI-DP | Field Proven BIM For Legacy Profibus DP Network Retrofit

$2,841.00

The 8507-BI-DP acts as the bridge between PAC8000 local I/O backplane and a Profibus DP master controller.
Brand model：GE
Product Name:8507-BI-DP
Warranty: 1 year
Origin:Switzerland
HS code：85389000.00
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Request Quote
Brand: Model/SKU: GE 8507-BI-DP

Get a Quote / Inquiry

Request a Quote
Added View List
Email Inquiry
Phone/WhatsApp/Wechat:
+86 180 5988 4797
Email:
sales@powerdukedcs.com
WeChat QR Code WhatsApp

Description

  1. GE 8507-BI-DP | Field Proven BIM For Legacy Profibus DP Network Retrofit

2. At-A-Glance Executive Brief

  • Full Part Number: GE 8507-BI-DP
  • Component Type: Bus Interface Module (BIM)
  • Host Compatibility: PAC8000 Series I/O rack system
  • Lifecycle Status: OEM obsolete, limited New Surplus inventory
  • Core Protocol: Profibus DP Slave, HART pass-through supported
  • Carrier Requirement: Mounts onto 8701-CA-BI carrier base unit

3. Technical Introduction (Structure C)

Plants running PAC8000 field I/O lose all remote process signals when the bus gateway fails, halting continuous monitoring of analog transmitters and discrete field points.

The 8507-BI-DP acts as the bridge between PAC8000 local I/O backplane and a Profibus DP master controller. It collects data from up to 24 connected I/O modules and exchanges cyclic input/output data over the fieldbus. Configuration settings store in onboard non-volatile memory, retaining parameters after power loss. Dual-module redundant deployment is available on matching carriers to reduce single points of failure during long production runs.

4. Core Technical Specifications

Parameter Value
Model GE 8507-BI-DP
Official Designation Bus Interface Module (BIM)
Network Operation Profibus DP Slave
Max Supported I/O Modules 24 PAC8000 I/O cards
Supported Baud Rates Up to 12 Mbps
Additional Functions Profibus extended diagnostics, HART pass-through
Physical Mount 8701-CA-BI carrier rack installation
Power Input 12 V DC, 520 mA
Operating Temperature 0 °C ~ +60 °C
GE 8507-BI-DP

GE 8507-BI-DP

Compliance: Profibus DP V1 / V2 standards. Refer to OEM manual for full EMC and hazardous area ratings.

5. Field Engineer’s Tech Notes

  1. Redundant setups require matched firmware revisions for primary and backup 8507-BI-DP units. Mismatched firmware prevents smooth automatic switchover during primary module faults.
  2. Rotary address switches set the Profibus DP station ID before power up. Changes made while energized only take effect after a full module power cycle.

6. Adaptive QA & Testing Protocol

Each 8507-BI-DP undergoes bench testing on a complete PAC8000 carrier assembly. Technicians set station address, validate Profibus DP handshake at multiple baud speeds and verify diagnostic LED operation. Non-volatile memory retention is confirmed by power cycling after loading configuration data. Test screenshots or short validation video can be shared before shipment upon request.

7. Buyer’s FAQ

Q: Can this unit operate as a Profibus DP master device?

No. The hardware functions exclusively as a DP slave. A separate Profibus master controller is required to manage the network.

Q: Is direct swap possible between 8507-BI-DP and alternate PAC8000 bus interface variants?

Physical form factor may match, always cross-check protocol functionality. Models built for other fieldbus standards cannot substitute this Profibus DP version.

Q: What warranty terms apply to available stock?

All New Surplus units carry a 12-month warranty starting from dispatch date. Damage caused by incorrect supply voltage or ESD exposure voids coverage.

Q: Are these modules supplied with the required 8701-CA-BI carrier base?

Carrier hardware is sold separately. Confirm carrier availability if you do not already have existing rack infrastructure on site.
