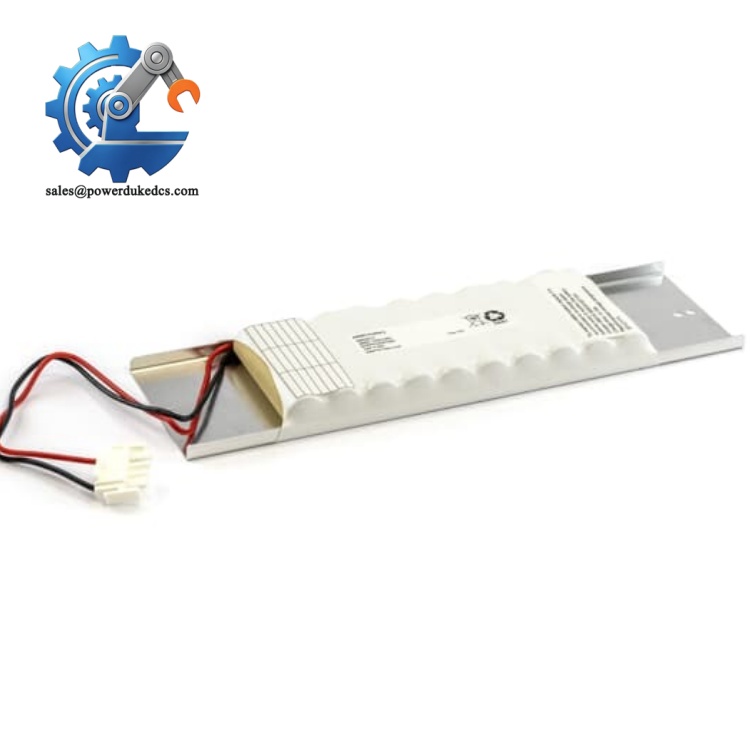

- ABB SB522V1 3BSC760015R1 | Legacy Advant DCS Controller Backup Power Module
- At-A-Glance Executive Brief
- Full Part Number: SB522V1 / 3BSC760015R1
- Brand: ABB
- Part Type: 12V NiMH controller backup battery unit
- Platform Compatibility: Advant Master AC410, AC450 DCS controllers
- Lifecycle Status: OEM obsolescent legacy spare
- Required pairing: SB510 or SB511 charger module for charging circuit
- Technical IntroductionMain cabinet power loss erases volatile RAM data inside Advant Master controllers without functional backup power.The SB522V1 supplies standby power to preserve program parameters and runtime data during mains outages. This nickel-metal hydride battery relies on dedicated rack-mounted SB510 or SB511 charging hardware to regulate charge voltage and prevent over-discharge. Unit performance declines steadily after multiple years of cabinet operation, reducing available memory retention window during power events.Best Suited For
- Planned component refresh on legacy AC400 DCS control racks
- Spare inventory stocking for power plant and chemical process control systems
- Direct unit replacement after existing battery diagnostic fault alerts
- Core Technical Specifications
Parameter Value Part Number SB522V1, 3BSC760015R1 Battery Chemistry Nickel Metal Hydride (NiMH) Nominal Voltage 12 V DC Rated Capacity 4 Ah Compatible Chargers SB510, SB511 Supported Controllers AC410, AC450 (Advant Master DCS) Mounting Type Cabinet plug-in assembly Operating Temperature Range 0°C ~ +55°C Please refer to the OEM datasheet for complete environmental tolerances and discharge curve data.
ABB SB522V1 3BSC760015R1
- Field Engineer’s Tech Notes
- Avoid hot-swapping while the rack remains energized. Momentary connector separation can cut backup power instantly and wipe controller RAM data, triggering full program reloads. Schedule battery exchange during approved outage windows.
- Inspect charger module status alongside battery replacement. Degraded SB510/SB511 charging circuits prevent full battery cycling, creating false low-battery alarms even with a brand-new SB522V1 unit installed.
- Adaptive QA & Testing ProtocolEach battery unit undergoes open-circuit voltage measurement to verify cell integrity. Units paired with compatible SB511 hardware complete a simulated charge cycle check to confirm normal current draw. Visual inspection covers casing condition, connector pins, and signs of swelling or leakage. Basic test documentation can be shared on request prior to shipment.
- Buyer’s FAQCan third-party generic 12V 4Ah NiMH batteries substitute the SB522V1?Generic cells are not recommended. Connector pinout, internal resistance, and charging profile differ. Mismatched units create charging errors and risk shortened service life. Use the OEM designated part number for direct drop-in exchange.
How much lead time should I plan for this part? is an obsolescent legacy spare. Available stock quantities shift regularly. Confirm current availability before locking in plant maintenance schedules.
What warranty coverage applies for this battery unit?Standard limited warranty covers verified manufacturing defects. Warranty does not cover premature failure caused by high cabinet ambient temperatures, incompatible charging hardware, or improper installation practices.
How long does a functional maintain controller RAM after power failure?Actual retention time varies based on controller load and ambient temperature. Older batteries deliver shorter runtimes. Run a simulated power cut test during scheduled downtime to validate onsite performance after installation.
