Description

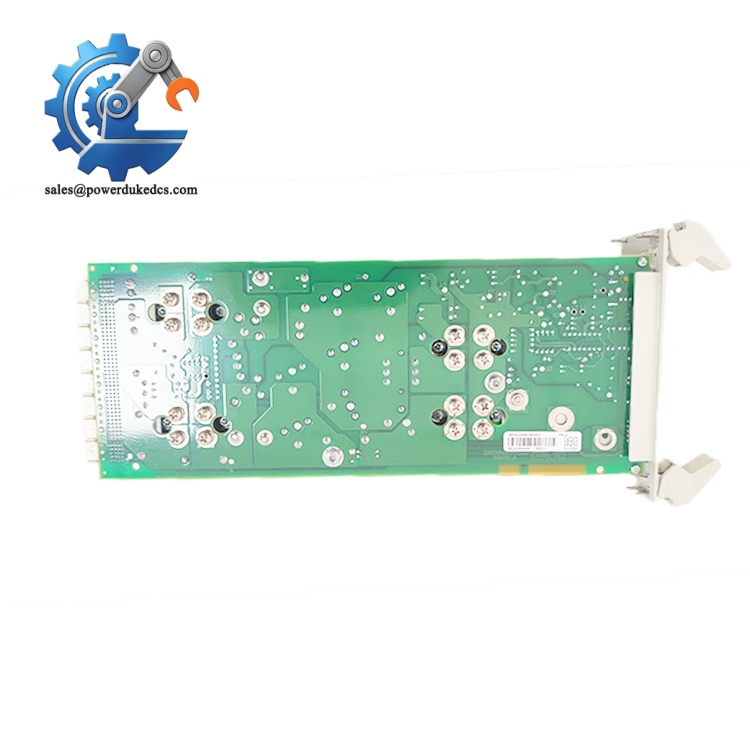

Product Core Brief

• Model: SR511 3BSE000863R0001
• Brand: ABB
• Series: Advant Master / AC800 Controller Platform
• Core Function: Amplify and regenerate MasterBus signals to extend effective communication distance
• Type: MasterBus Repeater Module
• Key Specs: DIN rack plug-in, electrical signal isolation, bidirectional bus data regeneration
• Condition: New Surplus, non-refurbished, no disassembly or component replacement traces
• Status: ⚠️ Factory discontinued, limited available stock

Product Introduction

Long-distance bus wiring often brings signal attenuation and interference, which triggers intermittent communication faults in Advant DCS racks. The ABB SR511 3BSE000863R0001 acts as an isolated signal repeater built for the MasterBus network. It reconstructs distorted bus signals and separates two bus segments electrically.

Designed for standard controller rack installation, this unit delivers bidirectional signal regeneration without delaying data transmission. Many process industry sites use it to split long bus lines and reduce the impact of electromagnetic noise. It maintains stable bus load balance and lowers packet loss risk on large-scale distributed control networks.

Key Technical Specifications

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10 mins)

⚠️ Safety procedures take priority during all rack module replacement. Notify operation staff about planned downtime. Set relevant control loops to safe state. Cut off rack main power and UPS power source. Keep power disconnected for at least 5 minutes for capacitor discharge.

Prepare necessary tools: anti-static wristband and anti-static mat, PH1 cross screwdriver, digital multimeter, marking labels, mobile phone for image backup. Complete data backup: save current controller project to local storage. Take clear photos of bus terminal wiring, jumper positions and overall rack layout.

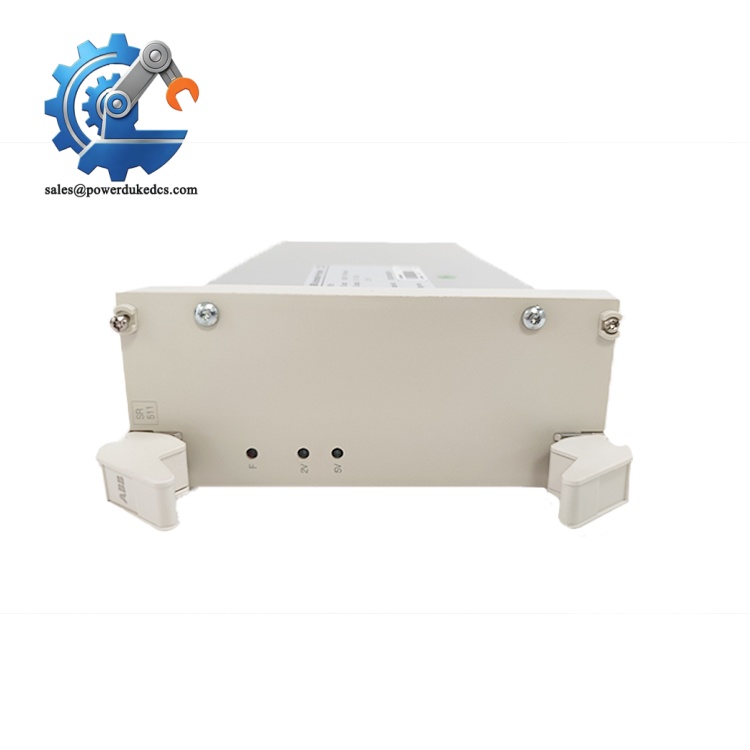

ABB SR511 3BSE000863R0001

Stage 2: Old Module Removal (8 mins)

Release the module front buckle. Mark every bus cable terminal number to avoid wrong connection during reinstallation. Loosen terminal screws counterclockwise and take cables out gently. Push down the DIN rail locking clip with a flat screwdriver. Pull the module straight outward and separate it from the backplane connector. Check backplane pins for bending or dust; remove dust with dry compressed air if required. Reserve all configuration labels attached on the old module. Do not apply excessive force to avoid damaging the rack structure.

Stage 3: New Module Installation (10 mins)

Wear anti-static gear before opening the anti-static packaging. Confirm full part number SR511 3BSE000863R0001 matches your replacement requirement. Copy jumper settings strictly according to saved photos. Wrong termination resistor configuration will cause bus signal reflection and unstable communication. Align the module with rack guide slots, insert vertically and press until the lock clicks. Reconnect all labeled bus cables and tighten terminals with moderate torque.

Pre-power-on self-check checklist:

• Bus termination jumper settings match site requirements
• All communication cables are securely fixed
• Module locking clip fully engaged
• No spare tools left inside control rack

Stage 4: Power-On & Functional Testing (12 mins)

Use multimeter to test 24V DC supply voltage and confirm no short circuit between power and ground terminals. Power up the control rack alone first. Observe LED indicators: steady green power light means normal power supply; flickering bus light indicates ongoing data exchange; red light represents bus error or hardware fault.

Connect Control Builder software and scan network nodes. Confirm all devices on both bus segments can be detected normally. Maintain continuous operation over 30 minutes without recurring communication alarms. Record module serial number and replacement date into maintenance logs.

Common troubleshooting tips: Partial device offline often relates to incorrect bus termination; continuous fault light may be caused by short circuit on bus wiring.

Strict Quality Inspection SOP

All stocked ABB SR511 3BSE000863R0001 modules pass complete testing flow before delivery to remove hidden operational risks. 1. Warehouse Incoming Inspection We verify serial number authenticity and original label integrity. Conduct visual inspection to check for circuit corrosion, scratches, solder rework and component aging. All printed hardware version information is recorded.

2. Live Rack Functional Test Modules run testing on our Advant controller test rack. Test items include power-on self-test, bidirectional MasterBus signal regeneration and long-duration continuous load test for 24 hours. Independent test reports are generated for each unit.

3. Electrical Performance Testing Fluke test equipment performs insulation resistance and continuity measurement. All electrical parameters must satisfy official datasheet standards. Units with abnormal circuit characteristics will be rejected.

4. Hardware Configuration Documentation Record factory default jumper and termination settings, store photos as files to support customers during field configuration.

5. Final QC & Packaging Professional inspectors confirm all test items pass. Modules are sealed in anti-static bags, wrapped with bubble film and packed into cartons. QC Passed label with inspection date is attached. Test photos or videos can be provided upon customer request.

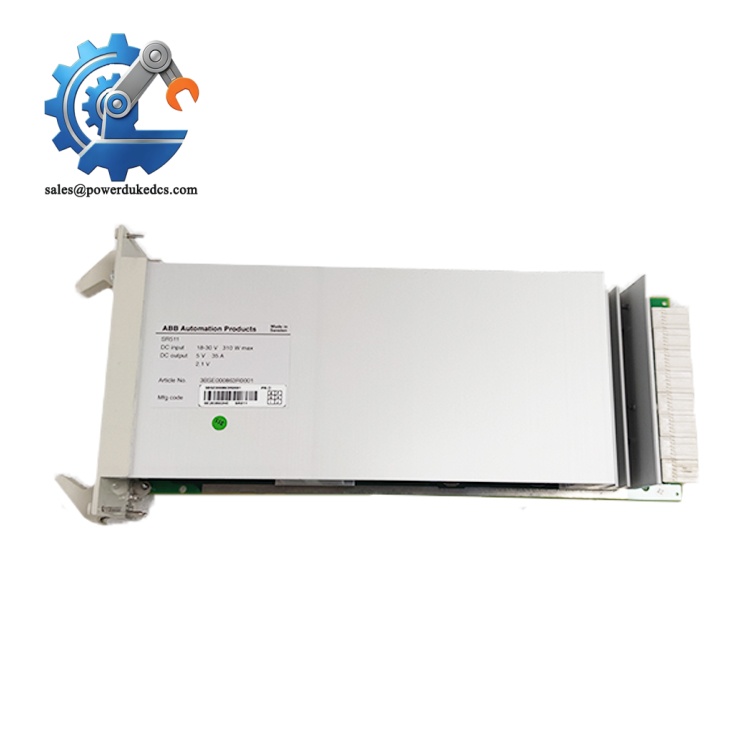

ABB SR511 3BSE000863R0001

Field Pitfall Avoidance Guide

Field maintenance experience shows most replacement failures come from simple operational mistakes instead of module quality defects.

1. Incorrect Bus Termination Resistor Setup This repeater separates two independent bus segments. Each segment needs termination resistor enabled at the far end only. Many engineers enable termination on both ports of SR511 directly, leading to signal distortion. We met one chemical plant case where improper termination triggered random controller offline faults that lasted two working days. Always confirm bus topology before adjusting jumpers.

2. Neglecting ESD protection Internal signal processing chips are sensitive to static electricity. Static discharge can damage circuit layers without obvious external traces, especially in dry winter environments. We have witnessed a brand-new module fail right after power-on because the engineer skipped anti-static wristband. ESD protection must be implemented every time.

3. Confusing two independent bus ports Two bus terminals on SR511 belong to isolated segments. Swapping port wiring breaks bus topology completely. Mark cables clearly before disconnecting to avoid misconnection.

4. Overlooking bus load capacity changes after adding repeater Inserting a repeater changes total bus load. If too many nodes connect to one segment, communication speed will drop gradually. Calculate bus node distribution in advance.

5. Compatibility risk of discontinued hardware Well, technically this unit is EOL. Some newer Advant firmware versions have adjusted bus timing parameters. Confirm your existing controller firmware revision before purchase to avoid adaptation problems.

Stick to these reminders and you can avoid over 90% of on-site rework and unexpected downtime.

Frequently Asked Questions (FAQ)

1. Does ABB SR511 3BSE000863R0001 support hot swap? Hot swap is not supported under normal running status. Unplugging the module will disconnect two bus segments and cause all relevant controllers to go offline. Full power-off and capacitor discharge must be finished before replacement.

2. Can SR511 connect multiple repeaters in series? Limited cascade is allowed, but excessive repeaters will introduce signal delay. Follow official topology guidelines; avoid connecting more than two repeaters in one single bus path.

3. Is extra firmware update required after installation? Signal repeater logic is solidified inside hardware. No firmware flashing needed. You only need to set bus termination jumpers according to field layout.

4. What does constant red fault LED indicate? Steady red light usually means bus short circuit, wrong termination setting or internal hardware damage. Disconnect bus cables one by one to locate the faulty segment.

5. What after-sales terms are available? All stocked modules carry a 12-month warranty. We provide formal test reports, remote technical support during installation and fault diagnosis. Listed prices act only as reference, price negotiation is acceptable for bulk orders.

6. Why select original surplus module instead of alternatives? Generic bus repeaters cannot match the original MasterBus signal timing and isolation specifications. Mismatched signal characteristics may cause random communication anomalies on Advant DCS systems. Original spare parts ensure consistent network performance.
