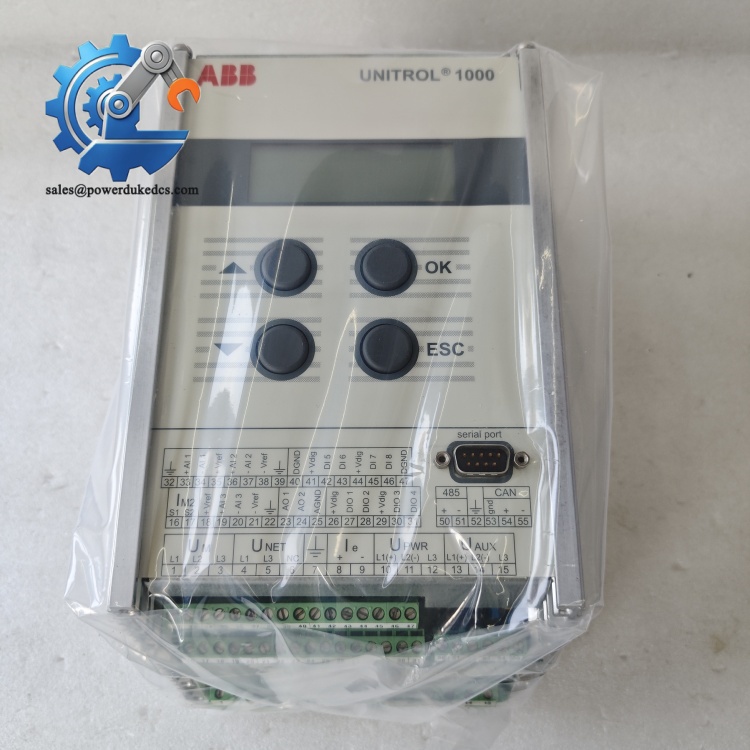

ABB UNITROL1000-15 3BHE014557R0003 | Compact Excitation Controller Configurable via CMT1000 Software

Product Core Brief

Model: UNITROL1000-15 3BHE014557R0003
Brand: ABB
Series: UNITROL® 1000 Excitation Control Family
Core Function: Regulate generator excitation current to stabilize terminal voltage and reactive power output
Type: Digital Automatic Voltage Regulator (AVR / Excitation Controller)
Key Specs: Max 15 A DC continuous excitation current, steady-state voltage accuracy ±0.5%, CMT1000 commissioning software
Condition: New Surplus, non-refurbished, complete factory hardware configuration
Stock Strategy: Class B critical power spare; maintain 1 unit on-site buffer stock; monitor ABB upgrade roadmap toward UNITROL1020 for planned last-time-buy

Product Introduction

Unstable generator voltage caused by fluctuating loads raises equipment failure risk and violates grid connection standards. UNITROL1000-15 3BHE014557R0003 delivers closed-loop excitation control for medium-size synchronous generators ranging from 100 kVA to 80 MVA.

This compact digital AVR supports reactive power droop control for parallel generator operation and includes built-in generator protection functions. All parameters can be tuned and logged via CMT1000 software over USB or Ethernet. Field data shows its voltage response completes within 50 ms during sudden load changes. It has accumulated thousands of operating units across thermal power stations, marine vessels and distributed generation sites.

Key Technical Specifications

Parameter	Specification
Full Part Number	UNITROL1000-15 3BHE014557R0003
Continuous Excitation Output	15 A DC
Short-Time Overload	20 A DC for 30 seconds
Steady-State Voltage Regulation Accuracy	±0.5% FS
Dynamic Response Time	< 50 ms
Commissioning Tool	CMT1000 software (USB / Ethernet interface)
Communication Interfaces	Modbus RTU, CANopen
Main Control Functions	Voltage regulation, power factor control, reactive power droop, under-excitation / over-excitation protection
Operating Ambient Temperature	-25 ℃ ~ +55 ℃
Storage Temperature	-40 ℃ ~ +85 ℃
Protection Class	IP20 (cabinet installation)
Mounting Form	Standard panel DIN rail mounting
Compatible Machine Type	Brushless synchronous generators

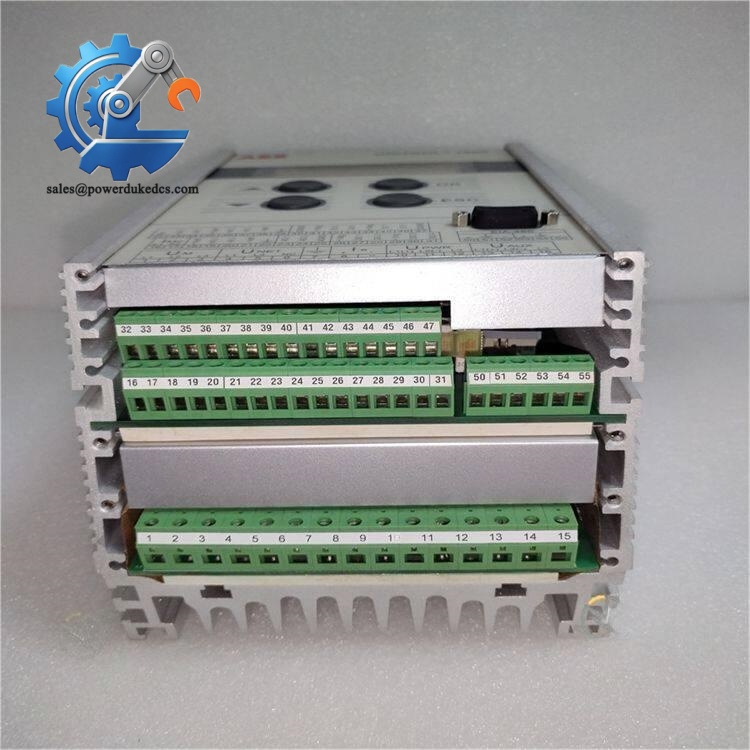

ABB UNITROL1000-15 3BHE014557R0003

Strict Quality Inspection SOP (Full Transparency)

1. Warehouse Incoming Verification

Original factory serial numbers and order codes are cross-referenced against unit labels. Every unit enters inventory with full traceability records.

Visual inspection checks cabinet housing for deformation, scratches, or circuit board discoloration. Front panel buttons, LCD display and terminal blocks are fully inspected. Factory test certificates and user manuals are verified as complete accessories.

2. Live Bench Functional Testing

Testing runs on dedicated generator excitation simulation bench.

Power-on self-test: Verify indicator lights and LCD display boot normally
Communication handshake: Stable connection established with CMT1000
Analog regulation test: Simulate voltage fluctuations to validate control response
Binary input/output test: Check alarm and trip signal output stability
Continuous 24-hour aging test to monitor internal temperature
Standardized test report generated and available upon customer request

3. Electrical Performance Testing

Insulation resistance tested by 500V megohmmeter, readings maintained above 10 MΩ.

Power supply anti-surge performance verified. All internal circuits inspected for leakage and hidden short-circuit risks. Test items comply with IEC 60255 standards.

4. Firmware & Configuration Verification

Factory default firmware version is recorded and archived. Parameter template backup is saved. No unauthorized firmware modification exists inside the unit.

5. Final QC & Packaging

Qualified units are sealed inside anti-static shielding bags, wrapped with bubble film and packed into export cartons. Each package carries a QC Passed label printed with inspection date.

Field Replacement Pitfall Guide (Engineer Practical Experience)

1. UNITROL1000-15 vs UNITROL1020 Compatibility Risk

UNITROL1020 serves as the successor model. Direct plug-and-play replacement is not guaranteed. Wiring terminals and parameter data formats differ partially.

Fix: Export full parameter set from original unit before shutdown. Confirm terminal definition drawings before hardware swap.

Real case: One marine power plant encountered abnormal reactive power sharing after direct replacement without parameter migration.

2. Missing Parameter Backup Before Removal

Many maintenance teams only record voltage setpoints, ignoring droop settings, excitation limit curves and protection thresholds.

Fix: Complete parameter upload via CMT1000 and save project files. Take clear photos of all front panel configurable menus.

3. Improper ESD Protection

Main control board semiconductors are sensitive to static electricity. Dry winter environments easily trigger invisible board damage.

Fix: Wear ESD wristband and use anti-static mat during unpacking and installation. Avoid direct contact with rear circuit boards.

4. Incorrect Excitation Cable Wiring & Polarity

Reversed excitation output terminals lead to loss of generator voltage control immediately after startup.

Fix: Mark cable polarity before disconnection. Double-check wiring against schematic before power restoration.

5. Ignoring Pre-Commissioning Auto-Tuning

Skipping generator system auto-tuning causes unstable voltage oscillation under dynamic load.

Fix: Complete closed-loop tuning procedure via CMT1000 after hardware installation.

6. Communication Address Conflict

Duplicate Modbus node addresses disrupt SCADA data collection.

Fix: Record communication parameters before removing the old unit.

ABB UNITROL1000-15 3BHE014557R0003

Installation & Configuration Guide

Phase 1: Pre-Installation Preparation (15 min)

⚠️ Safety Reminders

Arrange planned generator shutdown and implement lockout-tagout procedures
Confirm generator de-excited and rotor fully discharged
Prepare anti-static equipment before handling the AVR

Tools Needed: PH1 screwdriver, Fluke multimeter, laptop installed with CMT1000, USB communication cable, camera, cable labels

Backup Work: Export complete parameter project file. Photograph excitation wiring, signal wiring and front panel configuration menus. Record communication node address.

Phase 2: Old AVR Removal (12 min)

Cut off auxiliary power feeding the excitation controller
Disconnect excitation output cables, voltage sensing wires and communication cables one by one with labeling
Loosen DIN rail fixing screws and slide the unit out
Clean cabinet mounting space and check terminal connectors for oxidation

⚠️ Do not pull cables forcibly; damaged wire cores cause hidden contact faults.

Phase 3: New Unit Installation (18 min)

Take UNITROL1000-15 from anti-static packaging
Secure the unit firmly on DIN rail
Reconnect all cables strictly following labeled records and photos
Connect laptop to front communication port

Pre-Power-On Checklist

[ ] Excitation output polarity confirmed correct

[ ] All terminal screws tightened

[ ] No loose wires inside cabinet

[ ] Communication cable properly routed

Phase 4: Power-On & Commissioning (30 min)

Restore auxiliary power and wait for full boot-up
Launch CMT1000 and establish communication
Import saved parameter configuration
Run system auto-tuning to match generator excitation characteristics
Perform no-load voltage test and verify regulation stability
Simulate load change to observe dynamic voltage response
Check all protection threshold settings
Run continuous monitoring for minimum 30 minutes without abnormal oscillation or alarms

Common Troubleshooting

Voltage unstable: Re-execute auto-tuning; check excitation cable contact resistance
No communication with CMT1000: Verify USB driver and communication port selection
Generator fails to build voltage: Check voltage sensing wiring and excitation output polarity
Communication data loss: Confirm Modbus address and bus terminal resistor setting

Frequently Asked Questions (FAQ)

Can UNITROL1000-15 be directly replaced by UNITROL1020?

Mechanical installation dimensions are similar, but terminal definitions and data formats differ. Direct replacement without reconfiguration will cause control deviation. Complete wiring verification and parameter migration are mandatory.
Does this AVR support hot swapping during generator operation?

Hot swap is prohibited. Loss of excitation control will trigger generator voltage collapse. Replacement must be completed during generator shutdown.
What is the maximum generator capacity suitable for this unit?

Designed for synchronous generators up to 80 MVA with excitation current demand below 15 A DC continuous. Confirm generator field winding rated current before ordering.
Can multiple generators run in parallel using this AVR?

Yes. Enable reactive power droop function inside parameters to realize stable reactive power sharing among parallel units.
Which software version is required for commissioning?

Use matched CMT1000 software version. Older software releases cannot read parameter files from new firmware variants.
What coverage does the warranty include for stocked units?

We provide 12-month industrial warranty. Damage caused by reversed excitation polarity, overvoltage surges, wiring errors or mechanical collision voids warranty coverage.
What stocking strategy is recommended for this excitation controller?

Class B critical generation spare. Keep 1 unit as site buffer stock. Establish cross-site inventory sharing between multiple power assets to cut overall carrying costs. Track official ABB upgrade notices to arrange last-time-buy activities before formal EOL.
