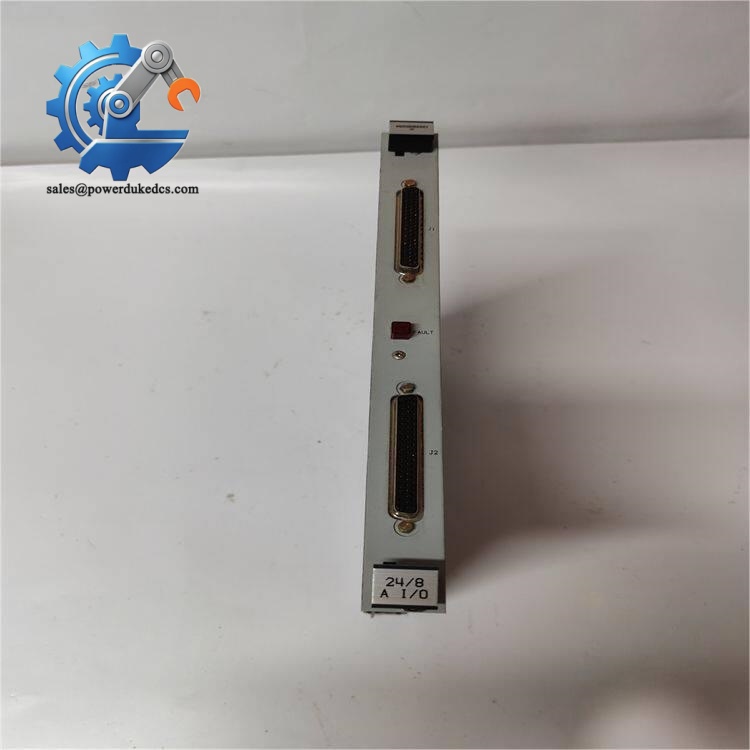

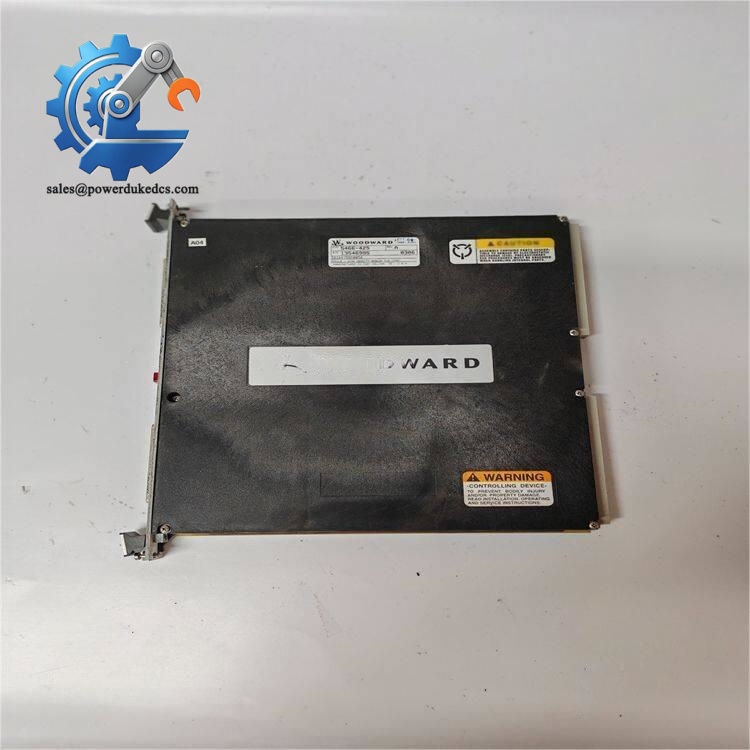

WOODWARD 5466-425 | Field Configurable Analog I/O Card for MicroNet Simplex Systems

Product Core Brief

Model: 5466-425
Brand: WOODWARD
Series: MicroNet Control Platform
Core Function: Collect analog field signals and output control commands for turbine and engine governing systems
Type: High Density Analog I/O Module
Key Specs: 24 configurable analog channels; Galvanically isolated; 4–20 mA / 0–10 V signal support
Condition: New surplus, fully bench tested before shipment

⚠️ Original manufacturer production discontinued; limited spare inventory available

Product Introduction

Field pressure, temperature and valve position signals form the foundation of turbine control — this is the core job of WOODWARD 5466-425. It belongs to the Woodward MicroNet platform, widely deployed on gas turbines, steam turbines and reciprocating engine generator sets in power plants and oil & gas facilities.

Unlike discrete digital I/O boards, this module supports flexible channel configuration for analog inputs and outputs. Every channel carries galvanic isolation to suppress electrical noise from large motors and variable frequency drives. The module delivers stable signal sampling within -40 °C to +70 °C, matching the demanding environment of field control cabinets for rotating machinery.

Key Technical Specifications

Item	Parameter
Full Part Number	5466-425
Official Name	High Density Analog I/O Module
Compatible System	Woodward MicroNet Simplex Control System
Total Channels	24 configurable analog channels
Supported Signal Types	4–20 mA, 0–10 VDC
Channel Isolation	Galvanic isolation per channel group
Signal Update Cycle	5 ms typical
Power Supply	24 VDC nominal
Operating Temperature	-40 °C ~ +70 °C
Relative Humidity	5% – 95%, non-condensing
Communication Bus	MicroNet internal rack bus
Mounting Method	Standard MicroNet rack slot installation

WOODWARD 5466-425

Product Quality Control Process

All incoming 5466-425 modules follow standardized inspection workflows before delivery.

Incoming Inspection

Check serial number traceability and physical appearance. Inspect PCB for corrosion, scratch damage or disassembly traces. Verify terminal connectors remain intact.
Live Bench Test

Install the module inside a complete MicroNet test rack. Run power-on self-test, LED status verification and full channel signal simulation. Continuous 24-hour ageing test monitors thermal stability. We can supply test photos or video upon request.
Electrical Performance Test

Insulation resistance test with a 500 V megohmmeter. Verify ground continuity and check for abnormal leakage current.
Firmware Record

Read and log existing firmware revision. We can load matched firmware according to your site system requirements if requested.
Final Packaging & QC Sign-off

Passed modules are sealed inside anti-static bags, wrapped with bubble film and packed into cartons. Each unit carries a QC Passed label with inspection date.

Field Pitfall Guide for Replacement

Firmware Version Mismatch

Different firmware revisions change analog signal scaling rules. Always record the firmware version of the faulty module before ordering. One site case: maintenance engineers swapped the module without matching firmware, leading to incorrect pressure readings and unstable turbine load control.
Channel Configuration Backup

All channel scaling and signal type settings are stored in the control system. Export full configuration files before removing the module. Direct hardware replacement will result in blank channel parameters.
Isolation Wiring Rules

Do not mix grounded and floating sensor wiring on adjacent channels. Improper wiring will eliminate isolation benefits and introduce signal drift.
ESD Protection

Always wear an anti-static wristband during handling. Signal conditioning circuits are sensitive to electrostatic discharge. Risks rise sharply in dry low-humidity environments.
Platform Compatibility Warning

5466-425 is designed for Simplex MicroNet racks. It cannot be directly used in TMR triple redundant MicroNet systems; confirm your rack architecture before purchasing.

Frequently Asked Questions

Q1: Can this module work with Woodward NetCon controller series?

A1: It is built for MicroNet platform. It cannot be plugged into NetCon racks directly. Confirm your system model before purchase.

Q2: Is this factory sealed brand new original unit?

A2: OEM mass production has been stopped. Available stock is new surplus and fully tested. Complete test documentation can be provided.

Q3: What does the warranty cover?

A3: 12-month warranty starting from delivery date. The warranty excludes damage caused by wrong wiring, surge voltage and static damage on site.

Q4: Can each channel switch freely between input and output?

A4: Channel direction configuration requires software setup. Please confirm required I/O layout and complete configuration after replacement.
