ABB 5SHY4045L0001 3BHB018162R0001 IGCT Power Module Product Page
SEO Titles
1. ABB 5SHY4045L0001 3BHB018162R0001 | High Voltage IGCT Power Semiconductor Module
2. ABB 3BHB018162R0001 | 4500 V High Power Switching IGCT for Medium Voltage Drives
3. ABB 5SHY4045L0001 | In Stock New Surplus Unit, 12 Months Warranty Fast Shipment
4. ABB 5SHY4045L0001 3BHB018162R0001 | Direct Replacement Converter Power Module
5. ABB 3BHB018162R0001 | Press-Pack High Reliability IGCT for Grid & Industrial Drives
Meta Description
ABB 5SHY4045L0001 (3BHB018162R0001) is a high-voltage IGCT power module built for medium voltage converters and industrial drive systems. Featuring press-pack packaging and high-cycle stability, this new surplus unit undergoes full pre-shipment testing and comes with a 12-month warranty for critical power conversion applications.
Product Core Brief
-
Model: 5SHY4045L0001, 3BHB018162R0001
-
Brand: ABB
-
Series: 5SHY High-Power IGCT Series
-
Core Function: Acts as high-speed power switch for medium-voltage converter and drive topologies
-
Type: Integrated Gate Commutated Thyristor (IGCT) Power Module
-
Key Specs: 4500 V rated voltage; High cycle thermal stability; Fail-safe short circuit mode
-
Condition: New Surplus, non-refurbished
⚠️ Original production discontinued, limited inventory available. Serial batch consistency verification is required before field replacement.
Product Introduction
Most medium-voltage drive shutdowns trace back to degraded power switching components under continuous high-load cycling. The ABB 5SHY4045L0001 3BHB018162R0001 is a core IGCT power module designed for heavy-duty industrial power conversion. It delivers reliable high-speed switching to control energy flow inside MV converters and frequency drives.
This press-pack IGCT differs from standard IGBT modules with its fail-safe mechanical structure. It enters a stable short-circuit state after failure, preventing catastrophic open-circuit overvoltage damage to entire converter stacks. With dual-sided heat dissipation and low thermal resistance, it sustains long-cycle full-load operation with minimal parameter drift. Widely deployed in power generation, metallurgy and heavy industry, this component maintains stable performance under 24/7 continuous operating conditions.
Key Technical Specifications
|
Full Part Number
|
5SHY4045L0001 / 3BHB018162R0001
|
|
Rated Blocking Voltage
|
4500 V
|
|
Device Type
|
Integrated Gate Commutated Thyristor (IGCT)
|
|
Packaging Style
|
Press-pack dual-sided cooling package
|
|
Failure Mode
|
Fail-safe short circuit mode
|
|
Typical Application
|
Medium voltage converters, MV variable frequency drives
|
|
Operating Junction Temperature
|
-40 °C ~ +125 °C
|
|
Heat Dissipation Design
|
Double-sided thermal conduction, low thermal resistance
|
|
Working Cycle
|
24-hour continuous full-load operation support
|
|
Applicable Topology
|
Three-level neutral-point clamped converter topology
|
|
Industry Scenarios
|
Power plant, metallurgy, mining, large industrial motor control
|

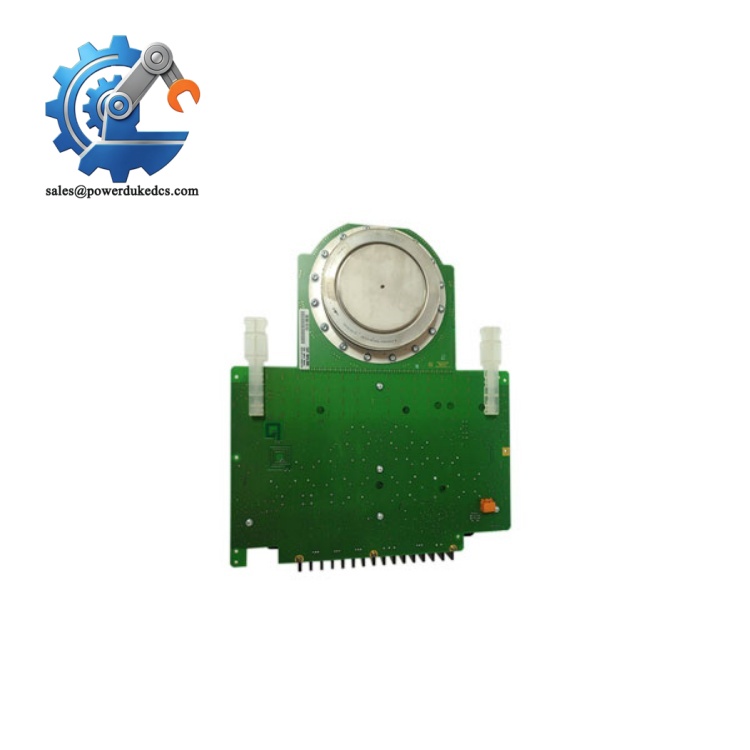

ABB 5SHY4045L0001 3BHB018162R0001
QC Testing SOP
1. Warehouse Incoming Inspection
Trace original factory packing lists and batch certificates to verify part number and serial number consistency. Inspect the press-pack surface for deformation, scratches or oxidation. Check electrode flatness and fastener integrity to ensure no handling damage during transit.
2. Live Bench Function Test
We use a professional ABB power semiconductor test bench for full performance verification. Complete static parameter testing and dynamic switching simulation. Conduct repeated turn-on and turn-off cycle tests to verify switching consistency. Run 24-hour continuous thermal aging to monitor temperature rise stability. Test videos and data reports are available upon request.
3. Electrical Parameter Testing
Use professional high-voltage insulation testers and Fluke 115 multimeters to test blocking voltage tolerance and insulation performance. Verify on-state voltage drop and gate trigger parameters fully comply with factory specifications. Confirm no internal leakage or breakdown risks.
4. Batch & Parameter Verification
Record production batch code and factory standard parameters. For converter stack replacement projects, we match batch parameter consistency to avoid unbalanced current distribution after multi-module parallel operation.
5. Final QC & Packaging
Certified inspector confirms all electrical and thermal indicators pass inspection. Place the module in anti-static and shockproof packaging. Use customized foam and carton packaging for anti-pressure protection. Paste QC Passed label with inspection date and batch information.
Field Installation Pitfall Guide
❗ Batch Parameter Mismatch in Parallel Stacks
Different production batches carry subtle differences in switching characteristics and voltage drop. I once encountered a converter overheating issue after mixing old and new IGCT batches. Mismatched parameters caused uneven current sharing and local overheating. Always replace with modules of consistent batch parameters for multi-module stack systems.
❗ Uneven Press-Pack Compression Force
Press-pack IGCTs rely on uniform mechanical pressure for heat conduction and electrical contact. Uneven tightening torque leads to poor thermal contact and sharp temperature rise during operation. Follow factory torque standards strictly; never tighten by experience alone.
❗ Gate Drive Signal Mismatch
IGCT gate trigger voltage and timing are matched to dedicated drive boards. Mismatched drive parameters cause delayed switching or false triggering. Confirm drive board model and program parameters before powering on new modules.
❗ Insufficient Heat Dissipation Margin
Many field failures stem from aging radiator fouling rather than module damage. Dust accumulation reduces heat dissipation efficiency. Clean radiators thoroughly before replacement and reserve sufficient airflow margin for continuous high-load operation.
❗ Static & Mechanical Damage Risk
Gate oxide layers are extremely sensitive to static electricity and mechanical impact. I have seen brand-new modules fail after unprotected handling and slight extrusion. Wear anti-static wristbands and operate on soft anti-static mats throughout the replacement process.

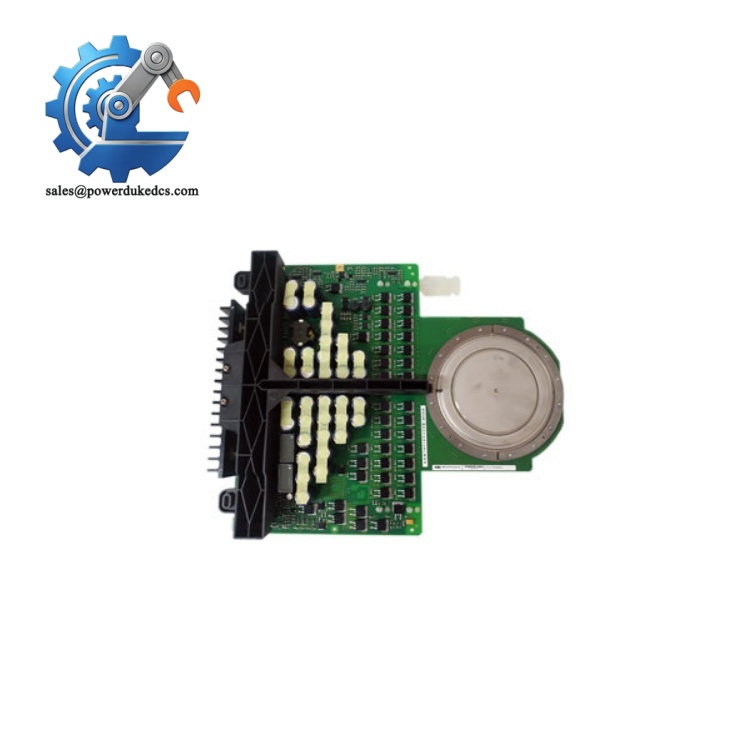

ABB 5SHY4045L0001 3BHB018162R0001
Quick Conclusions
1. ABB 5SHY4045L0001 3BHB018162R0001 is a 4500 V high-reliability IGCT module for medium-voltage industrial converters.
2. Press-pack fail-safe design reduces overall system failure risks compared with conventional power modules.
3. Discontinued production with limited stock; batch consistency check is critical for stack system replacement.
4. All stocked units pass full electrical testing and 24-hour thermal aging before delivery.
5. Not recommended for low-voltage ordinary inverter scenarios; over-specified for low-power switching demands.
FAQ
1. Can this IGCT replace other 5SHY series modules directly?
Direct replacement is not always feasible. Different sub-models have different voltage levels and switching parameters. System parameter debugging and current sharing verification are required after replacement.
2. Do you provide parameter matching and batch screening services?
Yes. We can screen modules with consistent batch parameters and provide matching suggestions for multi-module stack applications.
3. What is the warranty coverage?
We offer a standard 12-month warranty covering non-human-induced module failure from the delivery date.
4. Can I get pre-shipment test data and videos?
We support full static and dynamic parameter testing, and provide test videos and electronic test reports for confirmation.
5. What equipment is this module commonly used on?
It is widely applied in ABB medium voltage frequency converters, industrial three-level converters and large-scale power conversion equipment in energy and heavy industry sites.
