Description
Product Core Brief
- Model: 216EA61B HESG448230R1-G
- Brand: ABB
- Series: Legacy ABB DCS 216 Series Spare Parts
- Core Function: Capture discrete digital switch signals and transmit status data to main control racks
- Type: Digital Input Circuit Board
- Key Specs: Standard rack insertion mounting, opto-isolated input channels, industrial EMC protection
- Condition: New Surplus, non-refurbished unit
- Status: ⚠️ Officially discontinued by ABB, limited genuine stock available
Product Introduction
Unplanned channel failures on legacy ABB control racks often trigger process interlock alarms, and the 216EA61B HESG448230R1-G serves as a reliable replacement solution for such maintenance scenarios. This rack-mounted PCB acts as the digital signal front-end for older ABB distributed control systems, collecting binary status signals from field switches, limit sensors and auxiliary equipment.
Every circuit trace and onboard component follows ABB’s industrial hardware design standards to resist electromagnetic interference from drives and high-power equipment. Power plants, pulp & paper mills and chemical facilities still run thousands of racks equipped with this module. It matches the original chassis slot dimensions without mechanical modification. Long-term field operation data shows stable channel isolation performance, making it a preferred spare part for asset teams maintaining aging automation architectures.
Key Technical Specifications
| Parameter Item | Technical Value |
|---|---|
| Full Part Number | 216EA61B HESG448230R1-G |
| Device Category | Digital Input Circuit Board |
| Mounting Form | Rack insertion type for ABB standard chassis |
| Signal Isolation | Optocoupler isolation per channel |
| Operating Temperature | 0 °C ~ +55 °C |
| Application Environment | Indoor control cabinet, non-explosive industrial zones |
| EMC Standard | Compliant with industrial control electromagnetic compatibility requirements |
| Supported Signal Type | Discrete digital field contact signals |
| Reference Reliability | MTBF ≥ 43,000 hours under rated operating conditions |
| Storage Requirements | Low humidity, dust-free ambient storage |
Installation & Configuration Guide
Phase 1: Pre-Installation Preparation (10 Minutes)
⚠️ Safety Priority Notify operation staff and switch associated process loops to safe operating status. Cut off control rack power and disconnect external power supply circuits. Wait no less than 5 minutes to fully discharge internal capacitors inside the rack.
Tool Preparation ESD anti-static wristband and anti-static mat, PH1 cross screwdriver, multimeter, mobile phone for photo documentation, self-adhesive marking labels.
Recording & Backup Take clear photos of wiring layout, connector orientation and exact slot position of the old board. Label all signal cables. Save relevant channel configuration data from control software.

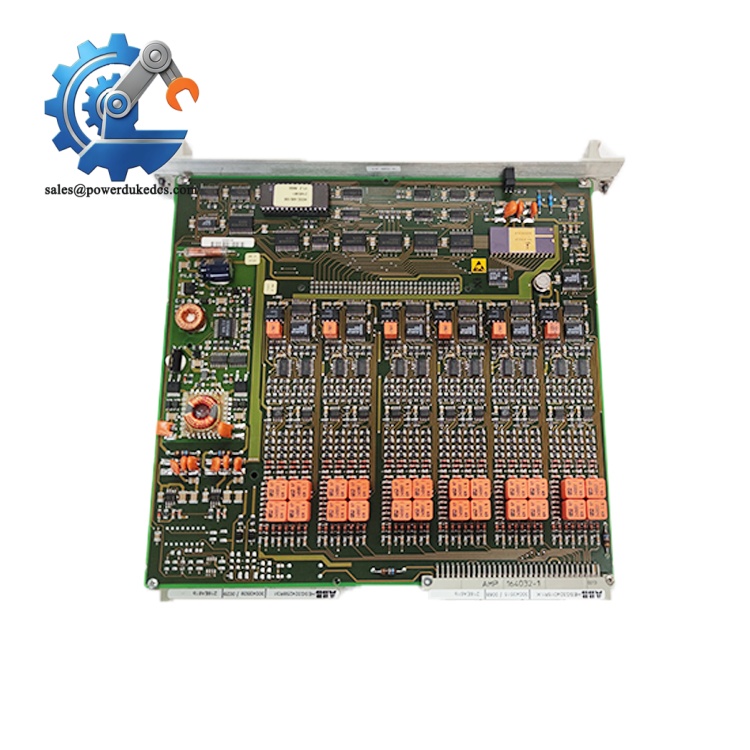

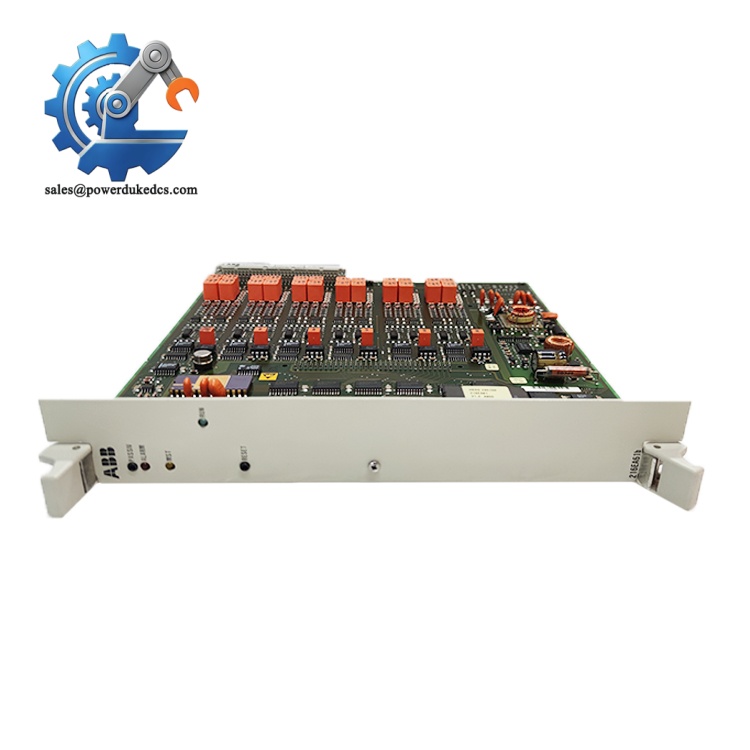

ABB 216EA61B HESG448230R1-G
Phase 2: Old Board Removal (8 Minutes)
- Mark each signal wire terminal before disconnection to avoid wiring mismatch after replacement.
- Loosen terminal screws counterclockwise and detach cables gently. Do not pull wires hard.
- Unlock fixing latches on both sides of the circuit board slot.
- Pull the board horizontally outward in a straight motion; avoid twisting to protect backplane gold contacts.
- Inspect backplane pins for bending, oxidation or dust accumulation. Clean gently with dry compressed air if needed.
⚠️ Critical Reminder: Static electricity can destroy onboard chips instantly. Never touch PCB traces or electronic components with bare hands.
Phase 3: New Module Installation (12 Minutes)
- Wear anti-static wristband before removing the 216EA61B HESG448230R1-G out of anti-static packaging.
- Double-check the complete part number to confirm specification matching.
- Align the board with rack guide rails, push horizontally until the backplane connector fully engages. Lock side latches securely.
- Reconnect all signal cables strictly following photographed records. Tighten terminals with moderate torque.
Self-Check List [ ] Board locked firmly within the rack slot [ ] All wiring terminals secured without loose cables [ ] No leftover tools inside the control cabinet [ ] No visible short circuit risks on terminal rows

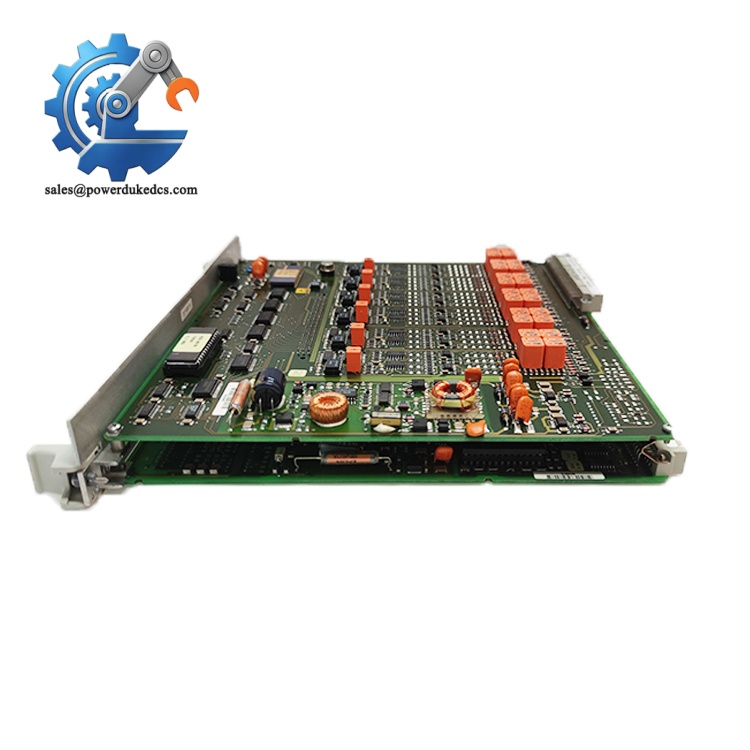

ABB 216EA61B HESG448230R1-G
Phase 4: Power-On & Functional Testing (15 Minutes)
Use multimeter to confirm no short circuits before restoring rack power. Power up the rack gradually. Observe onboard status LED indicators. Connect control software to verify network recognition of the module. Trigger each field input contact manually to confirm corresponding channel status updates on the control system. Maintain continuous monitoring for over 30 minutes. Confirm no intermittent channel dropout or abnormal status flicker. Log replacement date, module serial number and test results into equipment maintenance records.
Troubleshooting Tips
- No channel status change: Inspect wiring polarity and connector contact tightness
- Random signal flicker: Check cable shielding grounding and nearby interference sources
Frequently Asked Questions (FAQ)
1. Can I perform hot-swap on ABB 216EA61B HESG448230R1-G while the rack remains powered? Hot swapping is strongly discouraged. Even with partial hardware protection, extracting the board will cut digital signal loops directly. This triggers system alarms and may activate safety interlocks. Full power-off replacement remains the safest maintenance practice.
2. Does this digital input board require parameter setup after physical installation? Yes. After mounting, match channel definition and signal type parameters inside control software to match field devices. Simple hardware replacement without parameter calibration often leads to incorrect status feedback.
3. Are there direct physical substitutes if stock of 216EA61B runs out? Genuine drop-in alternatives are very limited. Most newer generation boards carry different pin assignments and physical dimensions. Facilities with long-running legacy systems should arrange last-time-buy plans while spare stock is available.
4. What quality testing procedures are implemented before shipment? Each unit undergoes visual inspection, circuit continuity test, channel signal simulation test and 24-hour continuous burn-in monitoring. We can supply test photos or short testing videos on request, and every unit comes with standard warranty coverage.
5. Why do digital input boards degrade faster in humid industrial cabinets? Persistent humidity causes slow oxidation on PCB traces and creates leakage current. Cabinets need stable humidity control and regular ventilation checks to extend board service life.
6. Is ABB still manufacturing 216EA61B HESG448230R1-G? This model has reached official end-of-life. No new factory production from ABB. Current available stock consists of genuine new surplus inventory. Maintenance teams should evaluate long-term spare part demands in advance.
