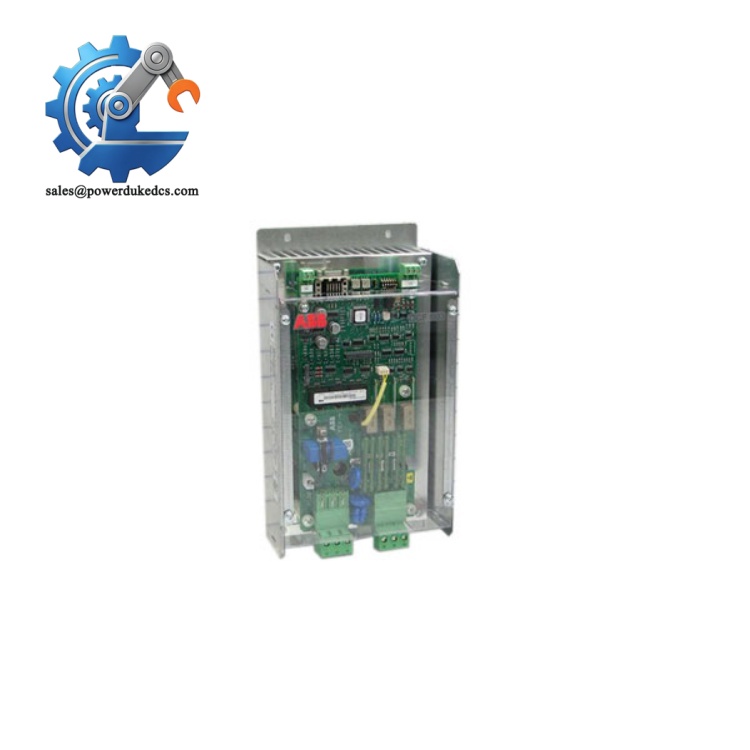

ABB DCF506-0140-51 | Industrial DC Drive Overvoltage Protection Accessory

Product Core Brief

Model: DCF506-0140-51
Brand: ABB
Series: DCF506 Protection Series (DCS880 Drive System)
Core Function: Suppress transient overvoltage and protect field excitation circuits from surge damage
Product Type: Field Excitation Overvoltage Protection Module
Key Specs: 400–500 VDC rated voltage; 25–100 A exciter current coverage; fast surge clamping response
Condition: New Original surplus stock, factory tested
Compatibility: Exclusively matched with ABB DCS880 2-Q/4-Q DC converter units

Product Introduction

Field excitation loops in high-power DC drives face frequent voltage surges during load switching, regenerative braking and grid fluctuation events. Uncontrolled transients often burn field windings or damage drive control boards.

ABB DCF506-0140-51 serves as a dedicated overvoltage protection module for DCS880 series DC drives. It clamps abnormal voltage spikes instantly and stabilizes field supply voltage within safe thresholds. This hardware protection minimizes unplanned drive trips and extends the service life of excitation system components.

Widely deployed in metallurgy, paper mill, mining and heavy industrial DC speed regulation systems. It works steadily in high-vibration and high-electromagnetic-interference workshop environments. No complex configuration required after standard installation.

Key Technical Specifications

Parameter Item	Technical Data
Full Part Number	DCF506-0140-51
Rated Working Voltage	400–500 VDC
Applicable Exciter Current Range	25 A – 100 A
Protection Type	Transient overvoltage clamping, surge suppression
Compatible System	ABB DCS880 2-Q / 4-Q DC converters
Installation Position	Inside DCS880 drive cabinet, field circuit loop
Operating Temperature	-20 °C ~ +50 °C
Storage Temperature	-40 °C ~ +85 °C
Application Loop	Field excitation power loop
Function Characteristic	Passive protection, no external control signal required

ABB DCF506-0140-51

Installation & Configuration Guide

Pre-Installation Preparation (10 mins)

⚠️ Safety Preconditions

Implement full drive lockout-tagout procedures. Stop all drive running commands and cut main AC & DC power supply. Wait at least 5 minutes for internal bus capacitors to discharge completely.

Tool Preparation

ESD wrist strap, PH1 screwdriver, insulated pliers, multimeter, mobile phone for wiring recording.

Backup Work

Take clear photos of original field circuit wiring and module installation position for accurate restoration.

Old Module Removal (12 mins)

Step 1: Label all field excitation input and output wires to avoid miswiring.

Step 2: Loosen terminal screws and disconnect wiring gently; do not pull cables forcibly.

Step 3: Release fixed fasteners and take out the old protection module vertically.

Step 4: Check surrounding terminals and wiring for burn marks or aging insulation. Clean dust with dry compressed air.

New Module Installation (15 mins)

Step 1: Wear anti-static gear before unpacking the new module to avoid static damage.

Step 2: Verify full part number DCF506-0140-51 to avoid model mismatch.

Step 3: Fix the module steadily in the designated cabinet position.

Step 4: Reconnect field excitation wiring strictly following recorded photos, tighten terminals with moderate torque.

Self-Check List

Module fixed firmly ✅

Wiring polarity correct ✅

Terminal screws fully tightened ✅

No exposed bare conductors ✅

Power-On & Commissioning (20 mins)

Pre-power inspection: Confirm no short circuits in field excitation loops.

Step 1: Restore drive control power and main power supply.

Step 2: Run drive no-load test, monitor field voltage stability.

Step 3: Perform light load and full load operation tests, check for overvoltage alarm codes.

Step 4: Maintain 30 minutes continuous operation, confirm no abnormal heating or alarms.

Step 5: Update on-site maintenance logs with module replacement records.

Troubleshooting Tip: Frequent field overvoltage alarms after replacement usually stem from loose wiring or incorrect loop access position, not module failure.

Quality Inspection Process

Incoming Visual Inspection

Check part number consistency, housing integrity, terminal flatness and no signs of disassembly or aging.
Electrical Performance Test

Simulate field voltage fluctuation and transient surge conditions to verify clamping protection function.
Continuity Test

Test internal circuit continuity to ensure no open or short circuit defects.
Data Filing

Record module serial number and inspection date for full lifecycle traceability.
Final Packaging

Seal qualified modules with anti-static bags and bubble wrap, attach QC pass label before delivery.

Field Replacement Pitfall Guide

❗ Model Mismatch Risk

DCF506 series has multiple sub-models with different voltage and current ratings. DCF506-0140-51 only fits 400–500 VDC / 25–100 A excitation scenarios, cannot replace other specifications directly.

❗ Wrong Circuit Access

This module must be installed on the field excitation loop, not the main power loop. Wrong access leads to zero protection effect and potential drive faults.

❗ Ignoring Discharge Time

Residual charge in drive capacitors can cause electric shock or short circuit during replacement. Always complete full discharge before operation.

❗ Loose Terminal Wiring

Vibration in industrial sites will amplify loose contact issues, causing intermittent overvoltage false alarms and unstable drive operation.

❗ Neglect ESD Protection

Internal precision protection components are sensitive to static electricity. Unprotected operation causes hidden module failure.

Frequently Asked Questions (FAQ)

Which drive models does DCF506-0140-51 adapt to?

It is specially designed for ABB DCS880 series 2-quadrant and 4-quadrant DC converters, matching medium-current field excitation systems.
Does this module support hot swap?

No. Cabinet power must be fully cut off for replacement. Live operation risks circuit short and module burnout.
Is professional configuration required after installation?

No. It is a passive protection module with plug-and-play functionality. No parameter debugging is needed under standard working conditions.
What failures can this module prevent?

It suppresses transient overvoltage caused by load switching, regenerative feedback and grid surges, protecting field windings and drive control units.
What is the warranty policy?

All stocked modules provide 12-month factory warranty. Damage from wrong wiring, overvoltage impact and human error is excluded.
Can it be used for high-current excitation systems above 100A?

No. Exceeding the rated current range will cause insufficient protection capacity and accelerated module aging.
