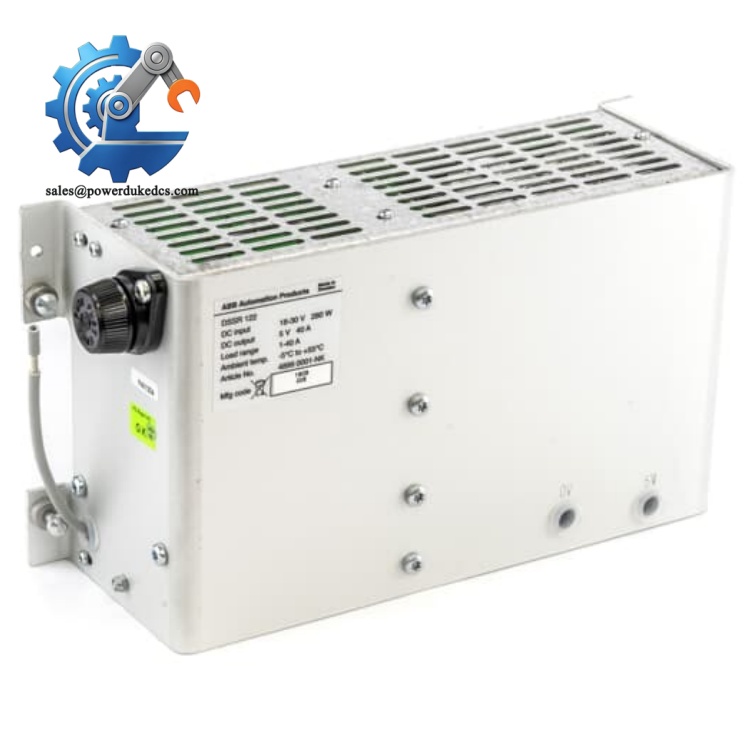

ABB DSSR122 4899001-NK Binary Input/Output Relay Card For Advant Controller Rack

Unstable binary signal feedback will trigger incorrect interlock actions and unplanned unit trips in thermal power control systems. The ABB DSSR122 4899001-NK is a rack-mounted digital slave relay module built for ABB Advant OCS distributed control platforms.

This module collects discrete field contact signals and executes relay output commands issued by the master controller. All signal data transfers through the internal rack backplane bus without extra external communication wiring. Onboard status LEDs offer direct visual diagnosis for each signal channel. It has decades of operational records in boiler, turbine and auxiliary control loops across power generation sites.

⚠️ Safety reminder: Carry out replacement work during equipment shutdown. Isolate cabinet power and wait for internal capacitor discharge. Unexpected relay action may cause field equipment misoperation.

Prepare ESD wristband, PH1 screwdriver, digital multimeter and mobile phone. Export the latest controller configuration file as backup. Take clear photos of jumper positions on the original DSSR122 and slot arrangement of the control rack. Record assigned channel logic for post-install verification.

Unlock the module front latch. Pull the unit straight outward to separate from the backplane connector.

Check the rack slot backplane pins for bending, oxidation or dust accumulation. Clean contact surfaces with dry compressed air. Do not touch gold-plated pins directly with bare fingers.

Discharge static electricity before unpacking the module. Confirm model DSSR122 4899001-NK matches site requirements.

Replicate jumper settings strictly based on photos taken from the original unit. Align the module with the target rack slot, push vertically until the front latch clicks and locks. Confirm the module sits flush with adjacent cards.

Complete visual inspection before restoring cabinet power.

After power-up, observe front panel LED indicators. Connect engineering workstation to scan the control rack. Verify the controller identifies the new module without hardware fault alarms.

Trigger each field contact signal manually to check signal transmission. Activate controller output commands to confirm relay contact switching works normally. Run continuous monitoring for 30 minutes with no channel communication errors. Record serial number and replacement time in plant maintenance logs.

All stocked DSSR122 4899001-NK modules pass strict industrial testing standards suitable for power plant control cabinets.

Source traceability and visual inspection come first. Check PCB surface, housing and terminals for corrosion, scratch marks or manual soldering repair traces.

Bench testing uses a complete Advant OCS simulation rack. Complete power-on self-test, backplane communication handshake, full channel input detection and relay output action testing. A continuous 24-hour powered aging test screens intermittent hardware defects.

Electrical tests include insulation resistance measurement and contact continuity verification. All jumper default configurations are documented during testing.

Qualified modules are packed in anti-static bags with QC Pass labels. Test photos and records can be provided upon request.

❗ Jumper Configuration Deviation Risk

Factory default jumper settings rarely match site bus address assignments. Incorrect settings cause rack bus conflicts and module offline alarms. I encountered a power plant case where wrong jumper positions led to three hours of troubleshooting. Photograph original jumpers before removal.

❗ Backplane Pin Damage

Do not tilt the module during insertion or removal. Bent backplane pins create unstable signal connections that are hard to locate during routine operation. Always pull and push the module straight along the slot direction.

❗ Channel Logic Verification Oversight

Module replacement does not modify controller logic, but you still need to test every input and output channel. Loose field wiring often gets mistaken for module failure after swapping hardware.

❗ ESD Damage to Internal Circuitry

Signal processing chips on the PCB are sensitive to electrostatic discharge. Low humidity inside electrical cabinets increases risk. Wear ESD protection every time you touch the bare circuit board.

❗ Incompatible Part Number Variants

Multiple DSSR122 variants exist with different suffix codes. 4899001-NK cannot be freely replaced by other part revisions. Confirm the full material number before ordering spare inventory.

Stick to these checks to avoid extended downtime after module swap.

1. Which control systems support DSSR122 4899001-NK?

It is designed exclusively for ABB Advant OCS and MasterPiece DCS racks. It cannot operate with other ABB DCS series such as AC800M.

2. Can I perform hot-swap while the DCS rack remains powered?

Hardware supports hot plugging, yet signal interruption will break interlock logic. For power plant safety loops, only replace the module during planned shutdown.

3. Will controller logic be lost after replacing this module?

Control logic resides in the master controller, not inside DSSR122. No program loss occurs. You still need to verify channel communication status after installation.

4. What typical faults require module replacement?

Common failure symptoms include persistent offline alarms, partial channel signal loss, relay contact failure and failure to complete backplane communication handshake.

5. Is this part still in active production?

No, it is officially discontinued. We maintain limited safety stock for emergency breakdown support. Long-term users should start planning system migration or last-time-buy procurement.

6. What warranty support is available?

All units carry a 12-month industrial warranty. Our technical team offers remote guidance for rack installation, jumper setup and post-replacement fault diagnosis.
