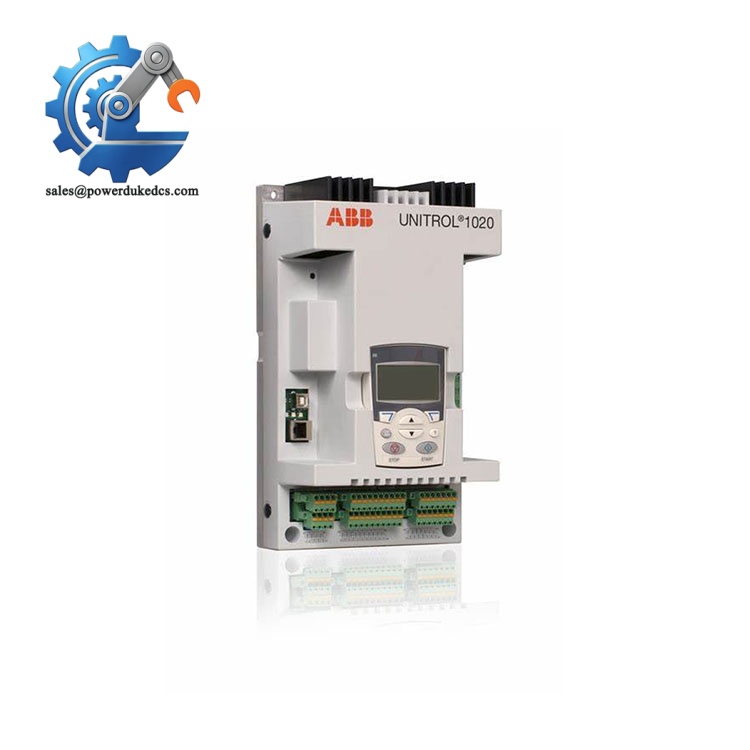

1. ABB UNITROL 1000-7 | Field Replacement AVR for UNITROL 1000 Series Generator Control Systems

Product Core Brief

• Model: UNITROL 1000-7
• Brand: ABB
• Series: UNITROL 1000 Excitation Control Family
• Core Function: Regulate generator excitation current to stabilize synchronous generator terminal voltage
• Type: Digital Automatic Voltage Regulator (AVR) / Excitation Controller
• Key Specs: Max 7 A DC excitation output; Supports PSS function; Compatible with CMT1000 configuration software

  Condition: New Surplus, non-refurbished

  ⚠️ ABB ceased active production; unit entered limited lifecycle phase, available stock quantity restricted

Product Introduction

Key Technical Specifications

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated 18 min)

1. Arrange planned generator shutdown and lockout procedures
2. Disconnect all AC and DC power feeding the excitation cabinet
3. Wait minimum 5 minutes to discharge internal circuit capacitors
4. ESD protection is mandatory during all module handling

• ESD wrist strap and anti-static mat
• PH1 cross screwdriver
• Fluke digital multimeter
• Mobile phone for recording wiring and terminal layout

• Back up all existing AVR parameter settings
• Photograph all power, CT and PT wiring terminals
• Record firmware version of the original UNITROL 1000-7 unit

Phase 2: Old Unit Removal (Estimated 15 min)

1. Confirm all power circuits are fully isolated
2. Mark each wire terminal before disconnection
3. Loosen mounting bolts securing the controller on cabinet plate
4. Separate all power cables, CT/PT signal wiring and communication lines
5. Extract the unit and inspect terminal connectors for corrosion or burnout

Phase 3: New Unit Installation (Estimated 20 min)

1. Wear ESD protection before unpacking UNITROL 1000-7
2. Complete visual inspection of terminals, PCB and housing
3. Secure the controller onto the mounting plate, maintain clear clearance for heat dissipation
4. Reconnect all wiring strictly matching photos and terminal marking
5. Tighten terminal screws to specified torque value

Phase 4: Power-On & Commissioning (Estimated 30 min)

1. Restore cabinet auxiliary power first
2. Observe power LED status; confirm no immediate fault indication
3. Connect PC via communication cable and launch CMT1000 software
4. Load saved parameter set or reconfigure all generator settings
5. Complete off-line excitation test without generator synchronisation
6. Run no-load voltage adjustment test, verify stable terminal voltage
7. Perform on-load test and monitor voltage response under load changes
8. Maintain continuous observation for 30 minutes without abnormal alarms

• Unstable generator voltage: Check CT/PT wiring polarity and filter parameter setup
• Communication connection failure: Verify RS485 terminal resistance and wiring sequence
• Excitation overcurrent alarm: Confirm excitation loop insulation and parameter limits

Frequently Asked Questions (FAQ)

1. Can UNITROL 1000-7 be directly replaced by UNITROL 1010?

   Mechanical mounting dimensions differ. UNITROL 1010 serves as the successor model. Minor wiring modification and parameter migration are required before commissioning. Direct plug-and-play swap is not achievable without engineering adjustment.

2. Does this unit support hot swapping during generator running?

   The controller cannot be powered online for replacement. Removing the unit cuts off generator excitation, which leads to generator voltage collapse. All replacement work must be completed during generator shutdown.

3. What is the difference between BASIC and FULL versions of UNITROL 1000-7?

   FULL version includes integrated PSS algorithm and extended limit control functions. BASIC version only supports standard voltage regulation. Confirm function scope before ordering spare parts. We have met multiple cases where incorrect version selection caused commissioning delays.

4. Can UNITROL 1000-7 work for synchronous motors instead of generators?

   It can provide excitation control for synchronous motors, yet parameter tuning logic differs significantly. You need to adjust control setpoints inside CMT1000 according to motor operation curves.

5. Is marine certification available for this unit?

   Valid DNV certification is available for marine genset applications. Request certification documents before delivery if vessel classification audit is required.

6. How long can spare units remain in storage without performance degradation?

   If kept in dry, temperature-controlled storage, stable performance can be maintained for 3–5 years. Periodic energisation testing is recommended for long-term stored spares.

7. What warranty terms apply to UNITROL 1000-7?

   We provide 12-month warranty under standard industrial operating conditions. Damage caused by wrong wiring, overvoltage surges, static discharge or humid corrosive environment voids warranty coverage.
