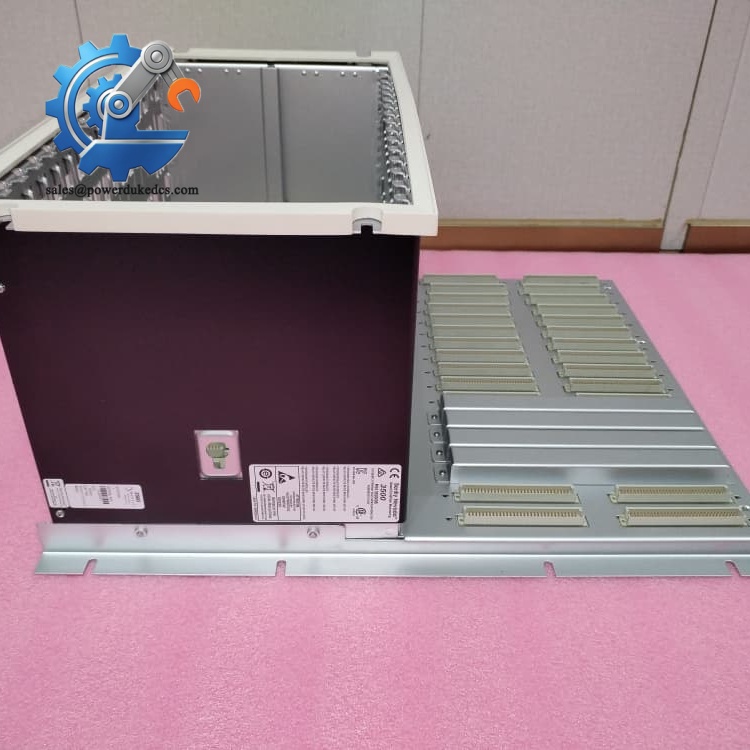

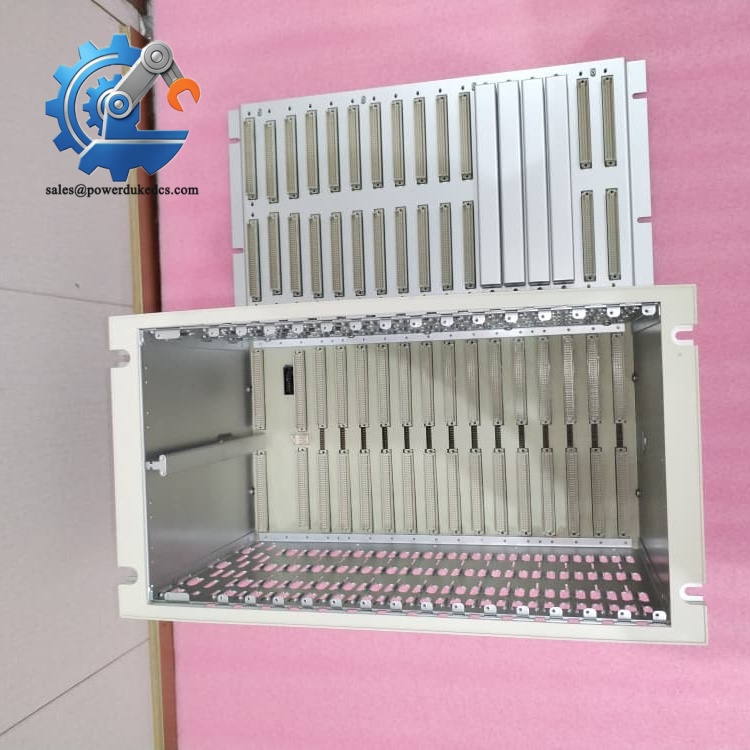

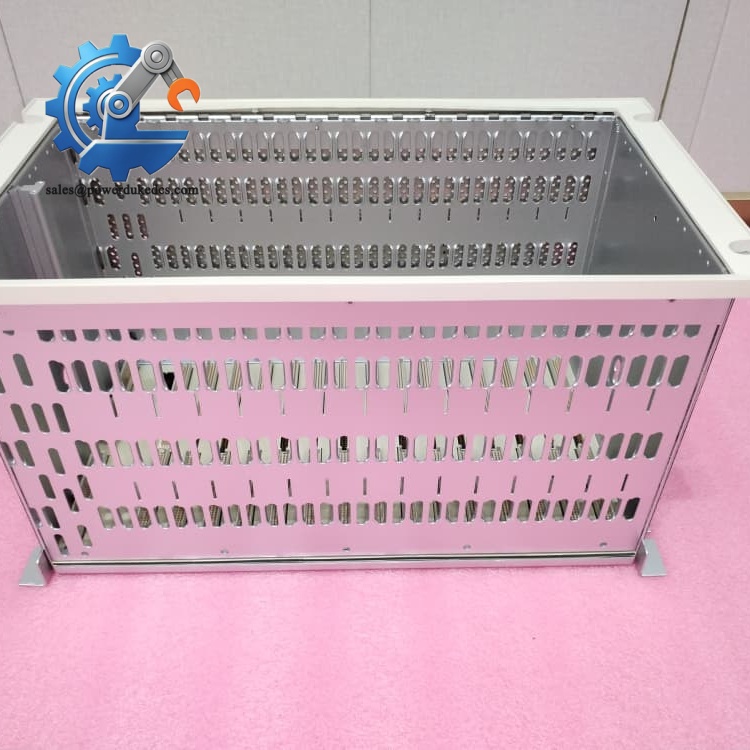

1. 3500/05 System Rack | BENTLY 19-inch EIA Chassis Supporting Redundant Power & 3500 Series Modules

Product Core Brief

• Model: 3500/05-01-03-00-00-00
• Brand: BENTLY Nevada (Baker Hughes)
• Series: 3500 Machinery Protection / TSI Monitoring System
• Core Function: Provide mechanical support, backplane communication and power distribution for all 3500 series monitoring modules
• Type: System Rack / Chassis Frame
• Key Specs: 14 full-height slots, bulkhead mounting type, integrated backplane bus, supports dual redundant power supplies
• Condition: New Original, non-refurbished
• Stock Reminder: Limited available inventory

Product Introduction

Critical rotating equipment such as steam turbines and centrifugal compressors depends on stable TSI monitoring infrastructure. The BENTLY 3500/05-01-03-00-00-00 acts as the fundamental chassis for the complete 3500 protection system. This specific variant adopts bulkhead mounting design, ideal for cabinet layouts where rear-side access cannot be guaranteed during maintenance.

Unlike generic industrial racks, this frame integrates dedicated backplane bus circuits to realize synchronous data exchange between rack interface, vibration monitors and communication modules. It reserves fixed slot positions for power supply and rack interface cards, supporting redundant architecture to lower system outage risks. The metal housing uses anti-corrosion coating to resist dust and humidity inside power plant and petrochemical control rooms. Field maintenance records confirm full compatibility with 3500/20, 3500/40, 3500/42 and other mainstream monitor modules.

Key Technical Specifications

3500/05-01-03-00-00-00

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (12 Minutes)

⚠️ Safety Priority Notify operation teams and confirm all protected rotating machinery has been shut down. Cut off all AC/DC power feeding the existing 3500 rack. Wait minimum 5 minutes for internal capacitance discharge. Lock out power switches to avoid accidental energization.

Tool Preparation ESD anti-static wristband, PH2 screwdriver, digital multimeter, mobile phone for photo recording, insulating gloves, torque wrench.

Backup Work Upload full system configuration via 3500 System Software. Take complete photos of module slot arrangement, wiring layout and rack interface parameter settings. Record slot numbers for power module, 3500/20 rack interface and each monitoring card.

Stage 2: Old Rack Dismantling (18 Minutes)

1. Label every sensor cable, power cable and communication wire connected to modules.
2. Extract all modules sequentially starting from right to left. Place each card inside anti-static bag immediately after removal.
3. Disconnect main power terminals and external communication wiring at rack rear.
4. Remove all bulkhead fixing bolts, separate the whole rack from cabinet mounting plate.
5. Inspect cabinet mounting surface; remove rust, dust and burrs before installing new frame.

⚠️ Note: Do not drag modules forcibly during extraction; bent backplane pins will cause permanent communication failure.

Stage 3: New Rack Installation (16 Minutes)

1. Wear anti-static wristband before unpacking BENTLY 3500/05-01-03-00-00-00. Double-check full ordering part number.
2. Position the rack on mounting plate, fasten bulkhead bolts symmetrically to avoid housing deformation.
3. Reinstall modules strictly following original slot sequence: power modules and rack interface occupy leftmost slots.
4. Push each module fully into slot until backplane connector engages completely.
5. Reconnect power and field wiring one-to-one according to photographed records.

Self-Check List [ ] Rack fixed horizontally without tilt [ ] All modules fully seated and locked [ ] Power polarity verified before energization [ ] No cables squeezing module housing edges

3500/05-01-03-00-00-00

Stage 4: Power-On & Functional Testing (35 Minutes)

Measure input power voltage range before restoring supply.

1. Switch on rack power and observe module power LED status.
2. Launch 3500 configuration software to scan rack hardware; confirm all inserted modules are recognized.
3. Compare rack firmware version against original frame.
4. Download saved system configuration and switch rack key switch to RUN position.
5. Simulate vibration, displacement input signals to verify channel measurement data.
6. Check alarm relay output and System 1 host communication connection.
7. Maintain continuous running observation for minimum 60 minutes, monitor stable backplane communication without dropouts.
8. Record new rack serial number and replacement date into equipment maintenance archives.

Strict Quality Inspection Process

1. Warehouse Receiving Verification

Every incoming rack gets serial number matching against Bently Nevada factory data. Complete exterior inspection checks housing deformation, coating damage and backplane pin integrity. Verify complete accessory set including mounting brackets and installation manuals.

2. Live Functional Testing

Each chassis is tested on standard 3500 test bench. Conduct continuity test for full backplane bus channels. Install power supply and rack interface module to verify normal initialization. Simulate multi-module communication to confirm stable data transmission across all 14 slots. Continuous 24-hour aging test monitors bus stability, formal test records can be supplied on demand.

3. Electrical Parameter Detection

Carry out insulation resistance testing on backplane circuits. Check power distribution traces for hidden short-circuit risks. Verify signal isolation performance to resist EMI interference inside power plant control cabinets.

4. Mechanical Structure Verification

Inspect every slot guide rail to ensure smooth module insertion. Test bulkhead mounting hole dimensional accuracy to match standard cabinet cutouts. Confirm no metal burrs which may scratch module housings.

5. Final QC & Packaging

Qualified racks are wrapped with shock-proof bubble material after inspector confirmation. Pack inside reinforced export carton with anti-collision foam. Each package carries QC Pass sticker marked with inspection date. Customers can apply for inspection photos before shipment.

3500/05-01-03-00-00-00

On-Site Replacement Pitfall Guide

1. Wrong Rack Order Variant

Mounting suffix defines installation mode. 03 stands for bulkhead mount. Many engineers directly order racks without checking suffix code, resulting in mismatch with cabinet installation holes. Avoidance: Confirm full part number 3500/05-01-03-00-00-00, do not only use short model 3500/05 for ordering.

2. Disordered Module Slot Placement

Power supply and 3500/20 rack interface must occupy left designated slots. Random placement leads to system initialization failure. Avoidance: Take clear photos before dismantling; strictly copy original slot layout.

3. Backplane Pin Damage

Improper module insertion angle easily bends backplane pins. Damaged bus pins cause random offline of monitoring channels. Avoidance: Insert modules horizontally along guide rails, do not tilt during pushing.

4. Ignoring ESD Protection

Backplane internal circuits are sensitive to static discharge, especially in low humidity winter environments. Avoidance: Anti-static wristband must be worn for all module loading/unloading operations.

5. Inadequate Cabinet Ventilation

Insufficient heat dissipation space around rack triggers overheating alarms during long-term operation. Avoidance: Reserve minimum 50 mm clearance above and below chassis for natural air circulation.

Frequently Asked Questions (FAQ)

1. Can 3500/05-01-03-00-00-00 directly replace other 3500/05 rack variants? Electrical backplane is fully compatible. Mounting dimension differs between panel mount, rack mount and bulkhead mount versions. Confirm cabinet installation method before swap.

2. What warranty applies for this rack chassis? We provide 12-month warranty for new original units. Non-human induced structural and circuit faults qualify for after-sales support. All test records are filed for traceability.

3. Can this rack work with half-height 3500 series modules? Yes. The 14-slot full-size frame supports mixed installation of full-height and half-height monitoring modules with matched card guides.

4. Can I obtain QC materials before delivery? Yes. We can supply exterior inspection photos, backplane continuity test records and bench test videos to support your incoming inspection procedures.

5. What equipment commonly uses the 3500 rack system? Mainly steam turbines, gas turbines, centrifugal compressors in power generation, oil & gas and petrochemical plants for continuous vibration and thrust position protection.

6. What lead time applies for stocked racks? Limited spot inventory available. Confirmed orders can be shipped within 1–2 working days. Express courier options reduce equipment standby downtime.
