Woodward BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 3522-1004 is a high-precision servo drive with 1 ms response speed and multi-protocol support. New surplus in stock, full pre-shipment testing, 12-month warranty for turbine and industrial motion control systems.
Product Core Brief
- Model: BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000, 3522-1004
- Brand: Woodward
- Series: High-Performance Servo Drive Series
- Core Function: Executes closed-loop high-precision motion control for turbine and industrial servo equipment
- Type: Industrial Servo Drive Control Module
- Key Specs: 1 ms dynamic response; ±0.001 mm position accuracy; Multi-bus communication support
- Condition: New Surplus, non-refurbished
⚠️ Original production discontinued, limited inventory available. Full model code verification is required before replacement.
Product Introduction
Minor motion control deviations can trigger turbine system instability and unplanned downtime. The Woodward -1224-54-B-001-VC-A0-0093-0013-G003-000 paired with 3522-1004 is a dedicated high-precision servo drive built for critical industrial motion control scenarios. It works with encoder feedback to form a complete closed-loop control system for stable equipment operation.
This unit outperforms ordinary general-purpose servo drives in response speed and control accuracy. It delivers a 1 ms ultra-fast signal response and maintains ±0.001 mm position accuracy under continuous operation. Compatible with CANopen, Modbus and Profibus protocols, it integrates seamlessly with mainstream PLC and DCS systems. This drive has long-term field validation in power generation, petrochemical and heavy industrial automation sites.
Key Technical Specifications
| Item | Parameter |
|---|---|
| Full Part Number | BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 3522-1004 |
| Dynamic Response Time | 1 ms minimum signal capture response |
| Position Control Accuracy | ±0.001 mm |
| Speed Control Error | < 0.1% |
| Supported Protocols | CANopen, Modbus, Profibus |
| Input Power Voltage | 24 VDC Industrial Power |
| Control Mode | Closed-loop encoder feedback control |
| Operating Temperature | 0 °C ~ +55 °C |
| Storage Temperature | -25 °C ~ +70 °C |
| Protection Grade | IP20 (cabinet installation only) |
| Applicable Systems | Turbine control, industrial automation DCS/PLC platforms |
QC Testing SOP
1. Warehouse Incoming Inspection
We verify serial numbers and factory packing lists for full traceability. Inspect the drive housing and PCB for scratches, corrosion, or rework marks. Check all connectors and accessories to ensure full set completeness before warehousing.
2. Live Bench Function Test
Testing is completed on a standard Woodward industrial control test bench. Perform full power-on self-check and multi-protocol communication handshake tests. Simulate real field motion signals for continuous 24-hour aging operation, and record response speed and accuracy data. We can provide test photos or videos for customer confirmation.
3. Electrical Parameter Testing
Use Fluke 115 multimeter to complete insulation resistance testing (500V, over 10 MΩ standard). Verify power input stability and internal circuit continuity. Confirm all control signal output indexes meet factory technical standards.
4. Firmware & Configuration Verification
Read and record the original factory firmware version. Backup default configuration parameters and communication baud rate settings. We adjust firmware versions in advance if on-site system compatibility requires version matching.
5. Final QC & Packaging
Certified inspector confirms all test items pass. Seal the module in anti-static packaging, wrap with bubble film, and pack in reinforced cartons. Attach official QC Passed label with inspection date for each unit.

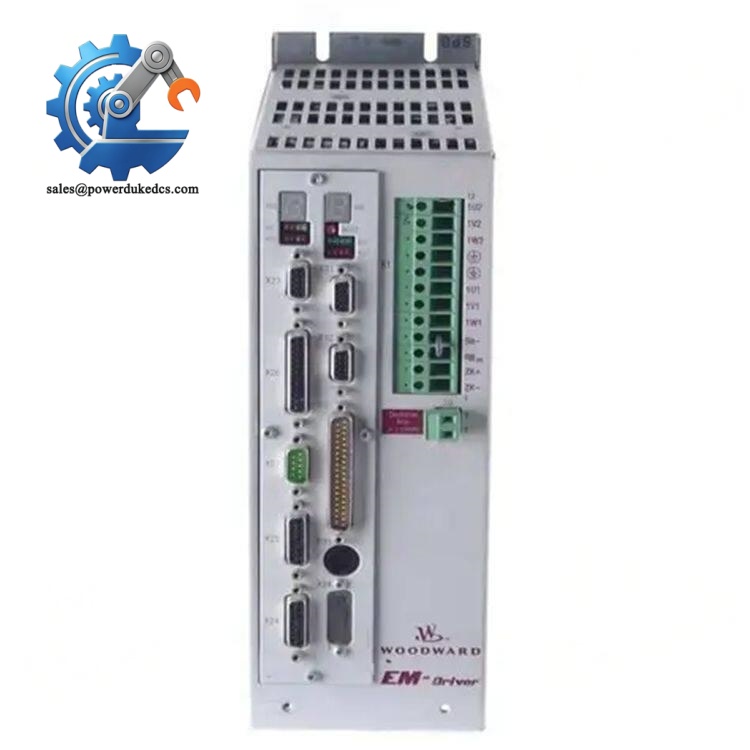

Woodward BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 3522-1004
Field Installation Pitfall Guide
❗ Firmware Version Mismatch
Different firmware versions lead to protocol parsing differences and intermittent communication failures. I once handled a site issue where a replacement drive caused persistent signal timeout alarms. The root cause was a firmware version gap between the new unit and the original system. Always record the existing firmware version before purchasing, and confirm version matching with suppliers.
❗ Communication Protocol Configuration Errors
This drive supports multiple bus protocols, but only one protocol can run stably at a time. Random switching without parameter modification will cause system disconnection. Photograph the original protocol settings before replacement, and replicate the exact configuration on the new module.
❗ Power Load Margin Insufficiency
Servo drives generate instantaneous current spikes during startup. Many on-site power faults come from insufficient power supply margin. Calculate the total load of the cabinet power supply and reserve more than 20% margin to avoid under-voltage protection shutdowns.
❗ ESD Static Damage
The internal high-precision sampling chip is extremely sensitive to static electricity. I have witnessed unprotected operation burn out a drive circuit board in dry winter conditions. Wear anti-static wristbands and operate on anti-static mats during all disassembly and installation steps.
❗ Encoder Wiring Definition Difference
Similar drive models have different pin definitions for encoder interfaces. Do not rely on experience for wiring. Check the official wiring diagram strictly, and confirm shielded cable single-end grounding to avoid signal jitter and position deviation.
Quick Conclusions
1. Woodward + 3522-1004 is a high-precision servo drive dedicated to turbine and industrial motion control systems.
2. It features 1 ms fast response and ultra-high positioning accuracy, suitable for strict low-deviation control scenarios.
3. Original production discontinued, stock quantity limited; full model and firmware confirmation is required before ordering.
4. All stocked units pass 24-hour aging and full electrical testing before delivery, with test records available.
5. Not recommended for ordinary low-precision automation equipment; over-spec for simple motion control scenarios.
FAQ
1. Can this drive replace other series models directly?
Direct replacement is not supported. Different suffix codes correspond to different hardware configurations and firmware. Compatibility verification is mandatory before replacement.
2. Do you provide firmware adjustment and configuration services?
Yes. We can upgrade, downgrade or restore factory firmware and configure communication protocols according to your on-site system requirements.
3. What is the warranty period?
We provide a standard 12-month warranty starting from the delivery date.
4. Can I get pre-shipment test videos?
We support real power-on testing, communication verification and motion simulation recording, and provide complete test videos for confirmation.
5. Which systems is this drive suitable for?
It mainly adapts to Woodward turbine control systems and mainstream PLC/DCS automation platforms with CANopen, Modbus or Profibus interfaces.
