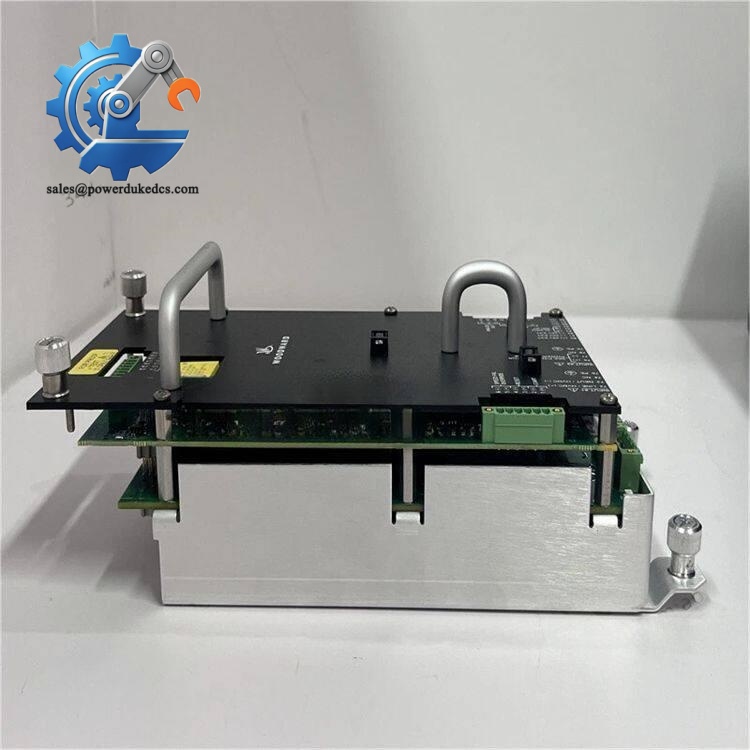

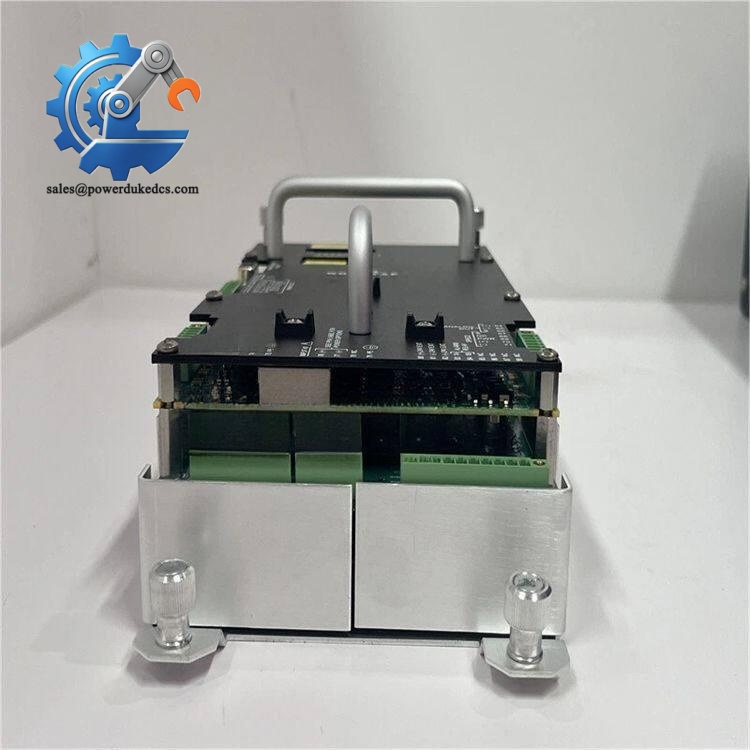

1. WOODWARD 5437-1119 | Trip Logic Module for Gas Turbine & Compressor Safety Control

Product Core Brief

• Model: 5437-1119
• Brand: WOODWARD
• Series: MicroNet Safety Module / ProTech GII Platform
• Core Function: Executes fault-tolerant voted logic for machinery safety trip protection
• Type: Safety Protection Module
• Key Specs: 24 VDC supply, wide operating temperature range, front-panel diagnostic LEDs

  Condition: New Surplus, not refurbished

  ⚠️ Original manufacturing discontinued, limited spare inventory

Product Introduction

Key Technical Specifications

Quality Inspection Process

1. Incoming Verification

   Cross-check serial number and factory labels. Complete visual inspection for circuit board corrosion, connector deformation, scratch marks and signs of prior field repair.

2. Live Bench Test

   Install module on matching ProTech test hardware. Complete power-on self-test, input signal simulation, trip logic verification and continuous 24-hour aging test. We can share test photos or video records upon request.

3. Electrical Performance Test

   Check insulation resistance and input circuit stability. Record all diagnostic status feedback under simulated fault conditions.

4. Firmware Recording

   Read and archive onboard firmware version. Document default hardware jumper positions.

5. Final Packing

   Passed modules are sealed with anti-static bags, wrapped with bubble film and packed into reinforced export cartons. QC Passed label with inspection date attached externally.

Field Installation Pitfall Guide

1. Hardware Revision Compatibility

   5437-1119 requires matched enclosure hardware. Using older panel assemblies below Rev D triggers abnormal signal recognition. One maintenance case caused one full day of site debugging due to mismatched rack revisions.

2. Lost Original Logic Configuration

   Take screenshots of safety voting parameter settings before removing the existing module. Wrong threshold or voting mode will disable protection functions. Do not rely on memory to rebuild safety logic.

3. Improper Field Wiring Shielding

   All discrete signal cables need single-end shielding. Ground loops introduce noise and cause intermittent false alarm triggers.

4. ESD Damage Risk

   Always wear anti-static wrist strap before handling circuit boards. Static discharge in low humidity environments can permanently damage signal processing chips.

5. Power Supply Noise

   Avoid sharing power circuits with large inductive loads. Voltage fluctuation will affect module detection accuracy for safety input signals.



   WOODWARD 5437-1119

Quick Conclusion

• Main usage: Safety voted logic processing for turbine and compressor protection systems
• Core advantage: Wide temperature operating range, built-in diagnostic indicators, mature field verified safety logic
• Suitable industries: Power generation, oil & gas gas turbine and compressor safety monitoring
• Not recommended: Projects without ProTech GII platform compatibility validation
• Inventory reminder: OEM original production stopped, available spare stock limited

FAQ

1. Can WOODWARD 5437-1119 operate independently without matched panel hardware?

   No. It must be installed inside compatible ProTech GII enclosure assemblies to achieve full functional performance.

2. Is this module applicable for SIL rated safety loop deployment?

   Complete safety assessment according to site SIL requirements; verify configuration with Woodward official documentation.

3. Can you provide bench test reports before shipment?

   Yes. Complete functional test records and inspection photos can be provided after QC testing.

4. What warranty term do you offer?

   12-month standard warranty starting from delivery date.
