WOODWARD 5501-471 MicroNet Rack I/O Module | Turbine Control System Card

Description

Meta Description

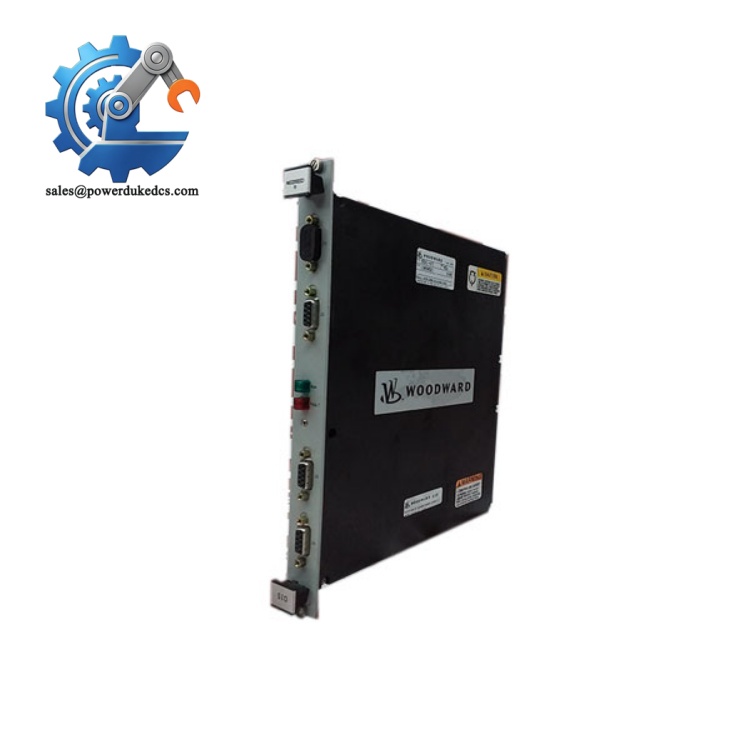

WOODWARD 5501-471 is a rack-mounted I/O interface module belonging to Woodward MicroNet control platform, widely deployed on steam turbines, gas turbines, compressors and generator sets for field sensor signal collection and actuator driving. New original surplus in stock, fully tested, 12-month warranty for power plant and petrochemical unit maintenance.

Product Core Brief

• Model: 5501-471
• Brand: WOODWARD
• Series: MicroNet Turbomachinery Control System
• Core Function：Collect field analog/digital signals, output control commands to valves and actuators, realize data interaction with rack CPU
• Type: Rack plug-in I/O control module
• Key Specs: High precision signal acquisition, multiple serial communication ports, industrial anti-electromagnetic interference design
• Condition: New surplus, non-refurbished, original factory spare parts
• Warranty: 12-month industrial professional after-sales warranty

Product Introduction

Stable signal acquisition and accurate actuator output are the foundation of safe operation of turbomachinery. The WOODWARD 5501-471 is a core plug-in I/O module developed for Woodward MicroNet control rack, serving as the signal bridge between main controller and on-site equipment.

This module receives temperature, pressure, rotating speed and other sensor signals, converts them into digital signals for the system processor; meanwhile, converts control instructions into analog output to drive fuel valves, steam valves and hydraulic actuators. Equipped with multiple RS serial communication interfaces, it supports reliable data transmission in strong electromagnetic interference environments of power stations and chemical plants. Widely used for steam turbine, gas turbine, centrifugal compressor and generator set control systems, it is a critical spare part for unit overhaul and emergency maintenance.

Key Technical Specifications

Professional QC Testing SOP

All WOODWARD 5501-471 modules pass standardized multi-process testing before delivery to eliminate hidden faults; complete test records can be provided for customer filing.

1. Warehouse Entry Visual Inspection

Check module part number consistency, inspect circuit board, shell and edge connector for oxidation, scratch, disassembly or burn traces. Verify label information and factory marking integrity before warehousing.

2. Rack Power-On Function Test

Install the module into standard MicroNet test rack for power-on self-test. Check indicator light status, complete bus handshake communication test. Simulate field analog and digital signal input to verify signal receiving and output response normally. Each module undergoes 24-hour continuous aging test to ensure stable communication without signal loss.

3. Electrical Performance Detection

Use professional testing instruments to detect insulation resistance, signal channel continuity and interface circuit performance. All electrical indicators meet Woodward factory standards to avoid short circuit and signal drift after on-site replacement.

4. Firmware Version Confirmation

Record the original firmware version of the module. Remind customers to match firmware version with the original spare part to prevent compatibility failures after replacement.

5. Packing & Pre-delivery Inspection

Qualified modules are packed with anti-static shielding bag and shockproof bubble wrap. Inspectors paste QC pass label. Test screenshots and aging reports can be provided upon request.

WOODWARD 5501-471

Field Replacement Pitfall Guide

Most abnormal communication and signal faults after module replacement come from operation and compatibility issues instead of product quality. Key maintenance reminders are listed below:

❗ Firmware Version Mismatch Risk

Different batches of 5501-471 carry different firmware versions. Direct replacement without version confirmation may cause the rack to fail to identify the module, abnormal signal channel or communication interruption. Compare the firmware version of the original module before purchasing.

❗ Static Damage During Replacement

The internal signal processing chip is sensitive to static electricity. Wear anti-static wristbands and operate on anti-static mats when plugging and unplugging. Static discharge will cause permanent damage to the circuit board without visible traces.

❗ Backplane Connector Dust & Poor Contact

Long-running control racks accumulate dust on backplane gold fingers. Poor contact will lead to intermittent signal flicker and random communication drop. Clean the slot contacts before inserting the new module.

❗ Hot-swap Operation Specification

Although the module supports hot swap, frequent plugging under strong electromagnetic interference environment may damage backplane channels. For unit critical working conditions, arrange replacement during maintenance shutdown as far as possible.

❗ System Parameter Configuration Backup

Some channel configuration parameters are bound to the module. It is recommended to back up system configuration files before removing the old module, and import and verify parameters after replacement to avoid unit protection false alarms.

Quick Conclusion

• WOODWARD 5501-471 is a rack I/O module for MicroNet turbomachinery control system, responsible for field signal acquisition and actuator drive output.
• New original surplus stock, passed 24h aging and full function test, supports fast delivery for unit emergency maintenance.
• Industrial-grade anti-interference design, suitable for power plant, petrochemical turbine and compressor control equipment.
• Firmware version matching and static protection must be emphasized during on-site replacement.

FAQ

Q1: What equipment is the 5501-471 suitable for?

It matches Woodward MicroNet rack control system, widely used on steam turbines, gas turbines, centrifugal compressors and generator sets in power plants and petrochemical industry.

Q2: Are the supplied modules new original?

All products are new surplus original, not refurbished or repaired. Each unit completes full channel function test and continuous aging test, supporting test document provision.

Q3: Delivery and after-sales terms?

In-stock goods can be shipped within 1–3 working days. 12-month warranty is provided. Non-artificial damage faults enjoy maintenance support during warranty period.

Q4: The rack cannot recognize the new module after installation, what are the common reasons?

Main causes: inconsistent firmware version, dirty backplane slot contacts, module hardware damage caused by static electricity. Check version first and clean slot contacts before installation.

Q5: Can you provide test reports and qualification documents?

Yes. We can supply function test reports, aging records and product certification materials to support customer project acceptance and spare parts filing.
