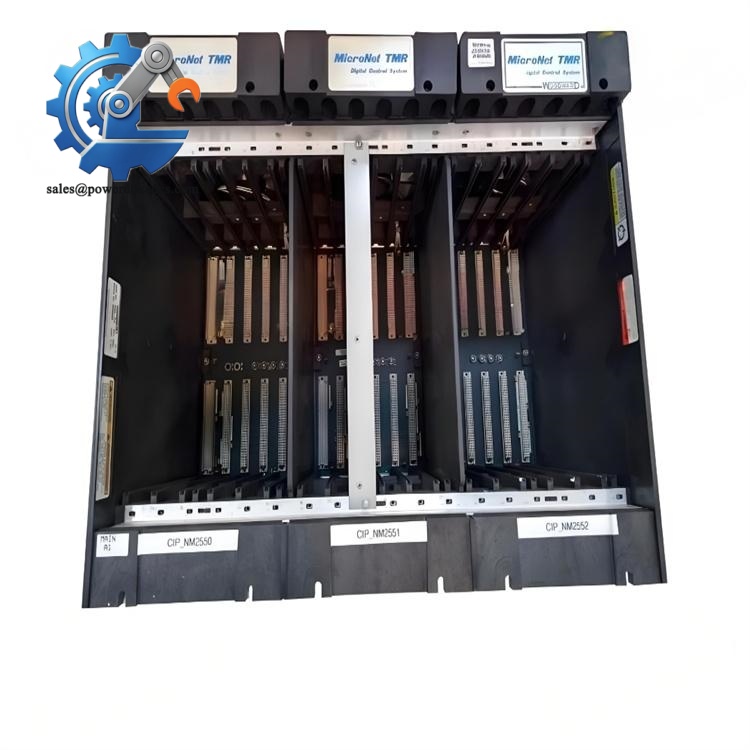

1. WOODWARD 5453-279 | Triple Modular Redundant System Chassis for Critical Power Equipment

Product Core Brief

• Model: 5453-279
• Brand: WOODWARD
• Series: MicroNet TMR Control Platform
• Core Function: Provides backplane bus and mounting base for TMR redundant turbine control hardware
• Type: 12-Slot TMR System Chassis
• Key Specs: 12 dedicated module slots, dual power supply positions, TMR synchronous backplane, supports hot-swappable I/O

  Condition: New Surplus, not refurbished

  ⚠️ Original manufacturing discontinued, limited spare inventory

Product Introduction

Key Technical Specifications

Quality Inspection Process

1. Incoming Verification

   Cross-check serial number and factory nameplate. Complete visual inspection for chassis deformation, backplane pin bending, corrosion and cracked circuit traces. Confirm all internal bus connectors remain intact.

2. Live Bench Test

   Install matched processor and I/O modules inside the chassis. Run backplane communication testing, power cycling test and continuous 24-hour aging test. We can supply test photos or video records upon request.

3. Electrical Performance Test

   Check continuity of all backplane signal lines, insulation resistance and ground bus connectivity. Record any abnormal communication feedback.

4. Hardware Recording

   Document chassis revision label, backplane hardware version and original jumper configuration.

5. Final Packing

   Passed chassis will be wrapped with anti-static foam and packed into reinforced export cartons. QC Passed label with inspection date attached externally.

Field Installation Pitfall Guide

1. Processor Version Mismatch

   5453-279 supports different wiring logic for TMR5200 and TMR040. Installing incorrect processor variants leads to backplane communication failure. Confirm original processor model before purchase. One maintenance case caused two days of site debugging due to mismatched hardware combinations.

2. Improper Power Supply Matching

   This chassis requires dedicated MicroNet redundant power modules. Generic 24V power units cannot drive the full rack load and trigger unstable signal transmission.

3. Damaged Backplane Pins During Module Insertion

   Insert or extract boards horizontally without applying excessive force. Bent backplane pins create intermittent connection faults that are hard to diagnose during runtime.

4. ESD Damage Risk

   Always wear anti-static wrist strap before touching backplane and internal circuits. Static discharge can damage sensitive bus transceiver chips in low humidity environments.

5. Ignoring Rack Cooling Requirement

   Full loaded chassis generates notable heat. Maintain recommended airflow; blocked ventilation will shorten service life of backplane components.

Quick Conclusion

• Main usage: Housing rack for Woodward MicroNet TMR turbine redundant control systems
• Core advantage: Dedicated TMR synchronous backplane, 12-slot expandable layout, dual redundant power positions
• Suitable industries: Power generation, oil & gas gas turbine and steam turbine control
• Not recommended: Non-MicroNet TMR platform upgrade projects
• Inventory reminder: OEM original production stopped, available spare stock limited

FAQ

1. Can 5453-279 work with non-TMR single MicroNet controllers?

   Not recommended. The backplane is optimized for triple modular redundant architecture; single controller setups use alternative chassis models.

2. Are all 12 slots hot-swappable?

   I/O and communication modules support hot swap; main processor slots cannot be removed while powered on.

3. Can you provide bench test records before shipment?

   Yes. Complete communication test data and inspection photos can be provided after QC testing.

4. What warranty term do you offer?

   12-month standard warranty starting from delivery date.
