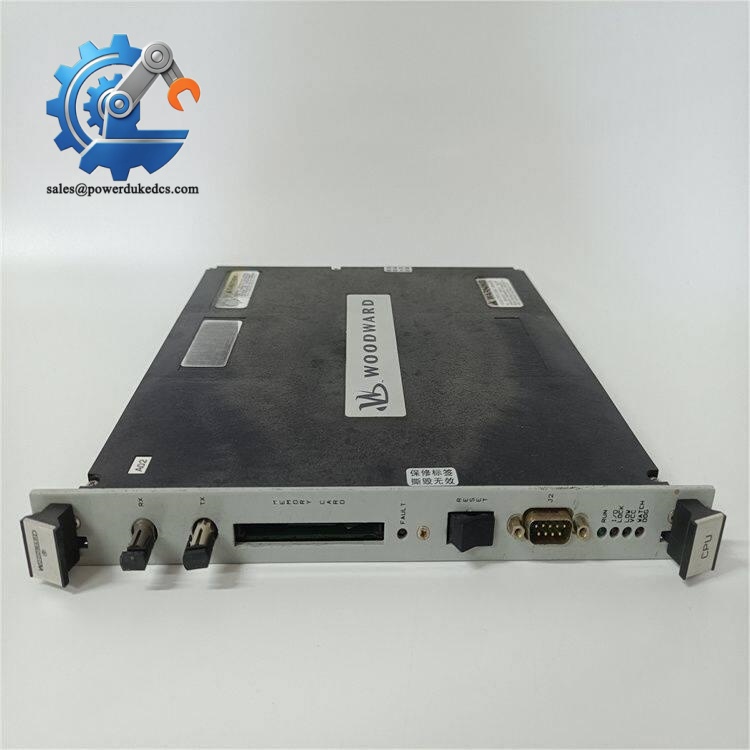

Woodward 5501-470 | Original Industrial Module For Power Generation & Oil & Gas Sites

Product Core Brief

Model: 5501-470
Brand: WOODWARD
Series: MicroNet TMR System Spare Module
Core Function: Executes real-time signal processing and closed-loop control for turbine governor systems
Type: Control Circuit Board / I/O Processing Module
Condition: New Surplus, not refurbished
Key Specs: Designed for gas turbine and generator control; Supports standard MicroNet backplane bus; Wide industrial operating temperature range

⚠️ Original production discontinued, limited stock available

Product Introduction

When a turbine control system suffers board failure, unscheduled shutdowns create heavy economic losses. The Woodward 5501-470 serves as a vital replacement component built for MicroNet TMR control platforms. This module handles field signal acquisition and control logic calculation for prime mover governing loops.

Compared with early-generation MicroNet peripheral boards, the 5501-470 improves anti-interference performance for power plant environments. It maintains stable operation within -40 °C to 70 °C ambient range, and matches hardware pin definition of original factory assemblies. Field technicians can implement hot swap maintenance after verifying system configuration, shortening unit outage duration.

Key Technical Specifications

Item	Parameter
Part Number	5501-470
Manufacturer	WOODWARD
Applicable Platform	MicroNet TMR Control System
Application Scenarios	Gas Turbine, Steam Turbine, Generator Speed & Load Control
Operating Temperature	-40 °C ~ +70 °C
Bus Interface	MicroNet Backplane Bus
Mounting Method	Rack-mounted, fits standard system chassis
Anti-Interference Standard	Complies with industrial EMC standards for power facilities
Compatibility	Matches MicroNet TMR CPU racks
Maintenance Suggestion	ESD protection required during installation
Warranty	12 months after delivery

Woodward 5501-470

Strict QC Testing Process

Incoming Inspection

Verify serial number traceability and factory labels. Complete visual inspection to check circuit board corrosion, component peeling, scratch or aging. Cross-check original accessory packages.
ESD Protection Preprocessing

All testing steps operate on anti-static mats. Operators wear ESD wrist straps to avoid electrostatic damage to chips.
Bench Live Test

Install the module on a simulated MicroNet TMR test rack. Complete power-on self-test, backplane communication handshake, and continuous 24-hour aging test. We can supply test photos or video upon request.
Electrical Parameter Inspection

Test insulation resistance and power supply circuit stability. Record all measured data inside the formal test report.
Firmware Confirmation

Read and record factory firmware version. We can flash specified firmware revision according to customer on-site system demands.
Final Packaging

Qualified modules are sealed in anti-static bags, wrapped with bubble film and packed into cartons. Each unit attaches a QC Pass label with test date.

Field Installation Risk Guide

❗ Firmware version mismatch

Mismatched firmware between new module and existing rack triggers communication timeout alarms. Before ordering, read and record firmware version of the faulty board. Confirm version requirements in advance. A common case: Engineers replaced the module directly without checking firmware, and spent two days troubleshooting communication failures.

❗ Backplane bus configuration

Check slot position and DIP switch settings before power-up. Take clear photos of original module switch layout before removal. Terminal resistance settings on the control bus cannot be arbitrarily modified.

❗ Wiring and terminal definition

Do not rely on experience for wiring. Download the official Woodward wiring drawing for confirmation. Improper wiring may cause module burnout after power-on.

❗ Power load budget

Calculate total power consumption of all modules inside the rack. Reserve at least 20% power margin. If the power supply runs close to rated load, add an extra power module.

❗ Electrostatic breakdown risk

Dry winter environments raise ESD risks. Never touch board components directly without anti-static gear. Multiple site cases show direct contact without protection leads to instant hardware damage.

Quick Conclusion

The 5501-470 is a dedicated spare board for Woodward MicroNet TMR turbine control systems.
Original manufacturing stopped, available supplies are limited new surplus inventory.
Confirm firmware version and rack compatibility before placing orders.
All modules complete full bench testing before shipment; test materials are available on request.
Strict ESD operation rules must be followed during on-site replacement.
