Description

Woodward 5466-258 | High Density Discrete I/O Card Compatible with Vertex-Pro Chassis

Product Core Brief

Model: 5466-258
Brand: Woodward
Series: MicroNet Digital Control Platform
Core Function: Collect field digital status signals and execute on/off control for turbine auxiliary equipment
Type: Simplex Discrete I/O Module
Key Specs: 48 optically isolated digital inputs; 24 digital outputs; 1ms event time stamping
Condition: New Surplus, non-refurbished

⚠️ Notice: Original production discontinued, available inventory limited. Hardware revision verification required before replacement.

Product Introduction

Unplanned turbine trips often start from loss of discrete status feedback from valves, pumps and auxiliary interlocks. The Woodward 5466-258 is a high-density digital I/O card built for MicroNet control racks, handling bulk binary signal exchange between field devices and main processors.

Compared with low-density discrete I/O variants for MicroNet racks, this module packs more channels within one slot to save cabinet space. It supports two wiring layouts paired with dual 24/12 discrete FTM terminal modules. Field data shows this card runs steadily on steam turbines, gas turbines and compressor packages in power and oil & gas sites for decades.

Key Technical Specifications

Item	Parameter
Full Part Number	5466-258
Channel Configuration	48 Optically Isolated DI, 24 DO
Time Stamp Resolution	1 ms for discrete events
Signal Update Cycle	5 ms maximum
Supply Voltage	18–32 VDC (powered via rack backplane)
Power Consumption	6.5 W at 24 VDC
Supported Chassis	MicroNet Plus rack, Vertex-Pro 8-slot /14-slot rack

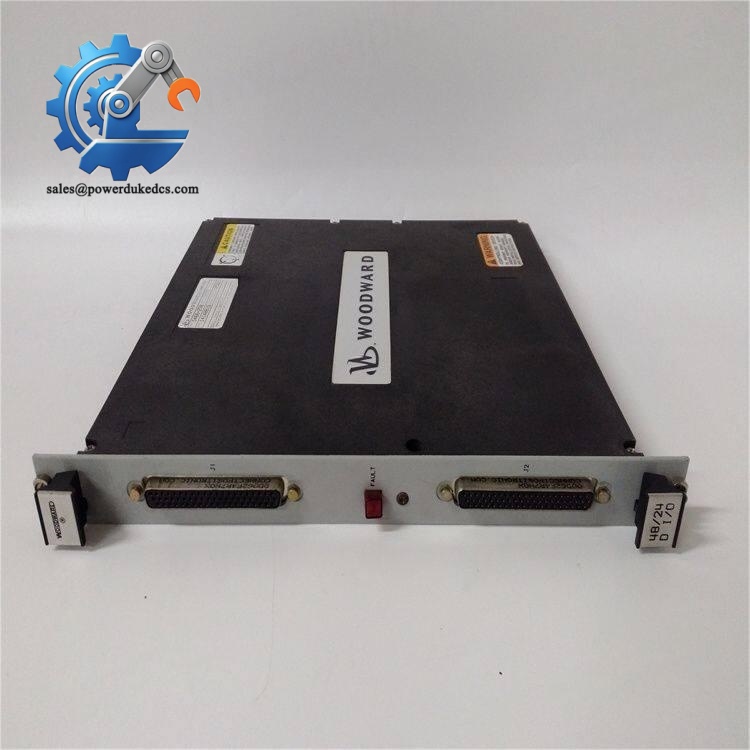

External Connection	Two high-density D-Sub connectors for FTM cables
Operating Temperature	0 °C ~ +55 °C
Storage Temperature	-40 °C ~ +60 °C
Installation	Slot mount inside MicroNet control chassis
Hazardous Location Standard	Class I, Division 2 Groups A,B,C,D certified
Protection Class	IP20, for indoor control cabinet installation

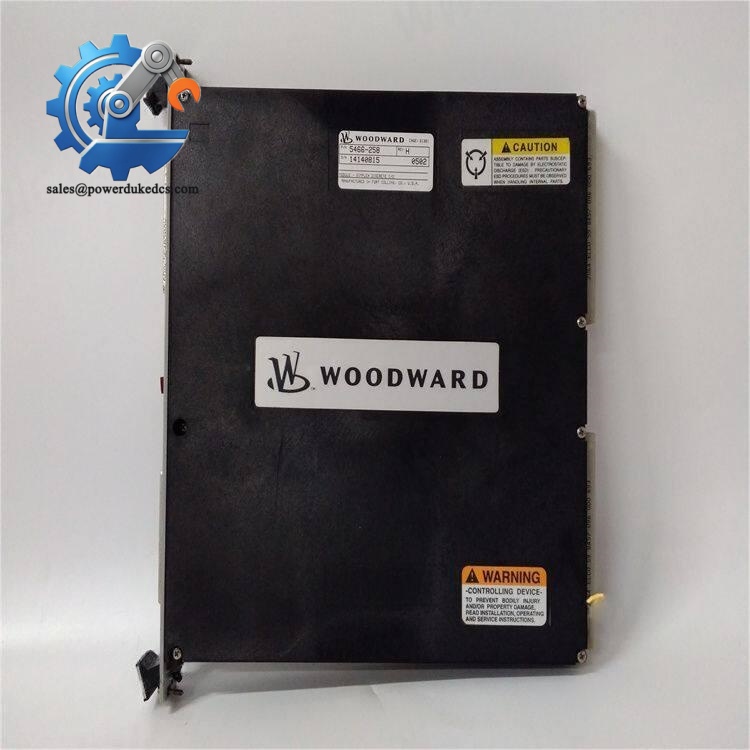

Woodward 5466-258

QC Testing SOP for Woodward 5466-258

Warehouse Incoming Inspection

Check serial number and hardware revision against factory packing documents. Inspect PCB for corrosion, scratches or soldering rework. Confirm front connectors are intact without bent pins.
Live Bench Test

Test platform uses original MicroNet rack and CPU controller. Run power-on self-test; complete backplane communication handshake; simulate input signal triggering and output switching for continuous 24-hour aging testing. We can share test photos or video upon client request.
Electrical Performance Test

Inspect isolation performance with Fluke 115 multimeter. Verify all input and output channels respond consistently within specified voltage range.
Hardware & Revision Recording

Record hardware revision printed on module label. Capture original factory configuration parameters. If firmware adjustment is needed before shipment, we confirm requirements with customers in advance.
Final Packaging Inspection

Seal module into anti-static bag, wrap with bubble film and pack into export carton. Attach QC Passed label with inspection date.

Field Installation Pitfall Guide

❗ Hardware Revision Compatibility Risk

Different hardware revisions of 5466-258 cannot always be swapped freely. One site case saw continuous channel communication alarms after blind replacement. Copy the full part number and revision code from your original module before ordering.

❗ FTM Terminal Module Matching

This module must pair with two 24/12 discrete FTM terminal boards via dedicated high-density cables. Mismatched cables or wrong FTM models lead to partial channel failure. Keep original wiring layout photos before disassembly.

❗ Backplane Slot Power Rules

MicroNet rack slots have fixed power allocation. Avoid loading multiple high-channel I/O modules on the same backplane power segment. Calculate total rack power consumption before adding new cards.

❗ ESD Protection Mandatory

Internal signal circuits are sensitive to static discharge. Wear anti-static wrist straps during plug-and-pull operations. Low humidity seasons greatly increase risks of permanent board damage.

❗ Interlock Signal Wiring Standard

Route discrete interlock cables separately from analog sensor wires. Crosstalk interference may trigger false logic trips for turbine protection chains.

Quick Conclusions

5466-258 is high-density simplex discrete I/O module designed for Woodward MicroNet turbine control systems.
Original manufacturing stopped; inventory fluctuates, confirm stock availability before formal orders.
Every stocked unit completes continuous channel aging testing before dispatch.
It requires matched discrete FTM terminal modules and dedicated connection cables.
Not suitable for TMR redundant MicroNet systems without pre-verified revision matching.
Woodward 5466-258

FAQ

Can this module be used for TMR redundant MicroNet systems?

It supports redundant system architecture, yet hardware revision compatibility must be validated against existing TMR CPU firmware.
Can you provide firmware adjustment service?

Yes. Send us target version requirements once the order is confirmed.
What warranty period do you provide?

Standard 12-month warranty starting from delivery date.
Is pre-shipment power-on test video available?

We offer power-on communication and channel simulation testing, and provide recorded videos for customer confirmation.
