Description

1. Emerson 5X00106G02 | Hot-Swap I/O Module for Power Plant & Petrochemical Process Control

Product Core Brief

• Model: 5X00106G02
• Brand: Emerson
• Series: Ovation Distributed Control System
• Core Function: Collect 4–20mA loop signals and exchange HART data with smart field transmitters
• Type: 8-channel HART high-performance analog input module
• Key Specs: 16-bit ADC resolution, channel isolation, hot-swappable, supports AMS device management
• Condition: New Surplus, fully bench tested before shipment ⚠️ OEM serial production discontinued, limited available inventory

Product Introduction

Unreliable analog signal acquisition will break real-time monitoring of pressure, flow and temperature variables in critical process loops. The 5X00106G02 acts as the interface between HART field instruments and the Ovation controller backplane. It converts analog current signals to digital values and extracts extra diagnostic data from smart transmitters.

Every channel provides electrical isolation to suppress interference from variable frequency drives and high-voltage equipment. Unlike basic non-HART AI modules, this variant enables remote transmitter configuration and fault diagnosis without on-site wiring work. Site feedback shows consistent measurement accuracy within -40 °C ~ +70 °C cabinet environments, widely deployed in thermal power units, combined cycle plants and chemical production facilities.

Key Technical Specifications

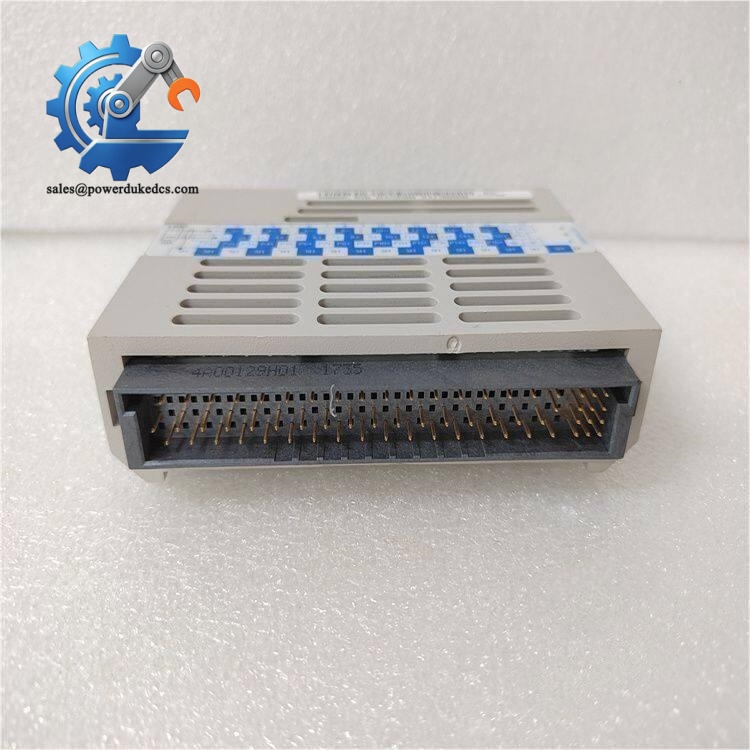

Emerson 5X00106G02

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated 12 minutes)

⚠️ Safety Reminders:

1. Communicate with operation staff and confirm maintenance plan. Switch related control loops to manual mode.
2. This module supports hot swap, but verify loop risk first; some critical measurement points need temporary bypass.
3. ESD protection must be applied during all module handling. Static discharge can damage analog signal circuits.

Tools you need:

• Anti-static wrist strap + anti-static mat
• PH1 screwdriver
• Digital multimeter
• Mobile phone for photographing field wiring and slot layout
• Engineering laptop with Ovation Developer Studio

Backup work:

• Export channel configuration, tag mapping and alarm parameters for the target I/O slot.
• Take clear photos of terminal wiring and lock nut positions.

Phase 2: Remove Original Module (Estimated 15 minutes)

1. Record all field cable connections on the terminal block. Mark each wire number.
2. Release the blue side latches of the module. Pull the unit horizontally out of the rack slot.
3. Inspect rack backplane gold contacts. Remove dust with dry compressed air. Do not touch contact surfaces.

Important note: Even with hot-swap capability, unexpected signal loss may trigger HMI alarms. Notify operators before removal.

Emerson 5X00106G02

Phase 3: Install New 5X00106G02 (Estimated 12 minutes)

1. Wear anti-static wrist strap before opening anti-static packaging.
2. Verify full part number: 5X00106G02. Revision mismatch will affect HART communication stability.
3. Align the module with the designated rack slot, push steadily until fully seated. Lock the side latches.
4. Reconnect field wiring strictly following photographed reference.

Pre-power checklist: [ ] Module fully locked in target rack slot [ ] No bent pins on rack backplane connector [ ] All field cables correctly terminated [ ] No metal debris left inside rack cabinet

Phase 4: Power-On & Function Test (Estimated 22 minutes)

Pre-power inspection: Check field loops for short circuits before confirming commissioning.

Power-up sequence:

1. If performing hot swap, the module will initialize automatically after installation.
2. Open Ovation engineering software, confirm the system detects the new I/O module.
3. Download saved channel configuration to the module.
4. Read raw analog values for each channel, compare readings with local instrument display.
5. Establish HART connection to smart transmitters; check remote parameter access and diagnostic status.
6. Maintain continuous running over 30 minutes. Monitor signal stability without drift or random spikes.

Troubleshooting hints:

• Channel no measurement → Check loop power supply and wiring continuity
• HART communication failure → Confirm module variant supports HART, check cable shielding
• Fluctuating readings → Separate signal cables from high-power cables and optimize single-point grounding

Frequently Asked Questions (FAQ)

1. Can I replace the module online without shutting down the rack? Yes, the 5X00106G02 supports hot swap. Still, prepare for temporary loss of measurement signals, which may trigger process alarms. Switch control loops to manual before replacement.
2. Can 5X00106G02 directly replace older 5X00106G01 versions? Physical installation is compatible. Validate HART function after replacement. Minor firmware differences may require re-downloading channel configuration.
3. Does this module work with non-HART 4–20mA transmitters? Yes. It can operate normally with standard analog transmitters. The HART channel function will remain unused for non-smart instruments.
4. What causes unstable analog readings on field channels? Improper cable shielding, shared ground loops or long unshielded wiring are common causes. Route field cables away from VFD power lines.
5. Can I use this module for RTD or thermocouple measurement? No. It only accepts 4–20mA current loop signals. Temperature sensors need dedicated RTD or TC input modules.
6. Is the module compatible with all Ovation controller hardware generations? It works with mainstream Ovation controllers. Confirm system firmware revision; very old legacy rack firmware may have identification compatibility risks.
7. What warranty do you provide for this spare I/O module? We offer 12-month warranty after shipment. Every unit undergoes full channel testing and HART communication verification. Test records can be provided on request.
