EPRO MMS3120/022-000 | Genuine OEM Dual Channel Vibration Monitor for Rotating Equipment

Product Core Brief

Model: MMS3120/022-000, Serial Code: 9100-03047-01
Brand: EPRO (Emerson, Germany)
Series: MMS3000 Machinery Monitoring System
Core Function: Dual-channel absolute bearing vibration measurement for rotating equipment protection
Type: Field-mounted Vibration Monitor / Vibration Transmitter
Key Specs: 2 independent sensor inputs | 4–20 mA analog output | Configurable alarm relays
Condition Note: New Surplus, non-refurbished

⚠️ MMS3000 series hardware is legacy product; original factory lead time is prolonged, available spare stock is limited.

Key Technical Specifications

Parameter	Details
Full Part Number	MMS3120/022-000, 9100-03047-01
Supported Sensor	PR9268 series seismic velocity sensors
Channel Configuration	2 fully independent measuring channels
Power Supply	24 VDC (18–36 V DC), consumption approx. 100 mA
Analog Output	4–20 mA scalable output, max burden 500 Ω
Alarm Output	Configurable alert & danger relay contacts
Communication Interface	RS232 standard; RS485 / Profibus DP optional
Frequency Filter Range	5 Hz ~ 1500 Hz configurable
Operating Temperature	-20 °C ~ +65 °C
Protection Class	IP65 cast aluminum housing
Mechanical Connector	Harting industrial plug interface
Compliance Standard	API 670, VDI 2056, CE EMC certified

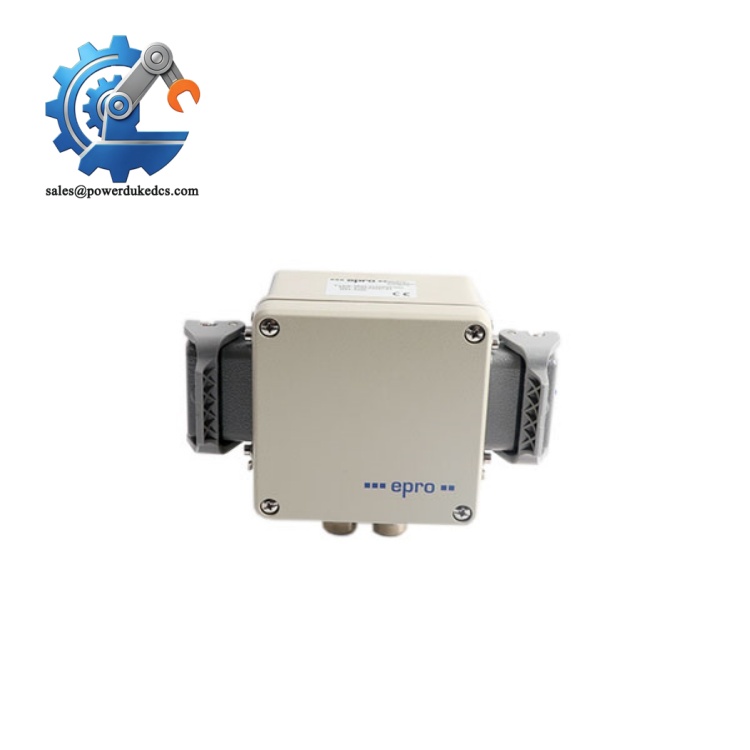

EPRO MMS3120/022-000

Product Introduction

EPRO MMS3120/022-000 (9100-03047-01) is a dual-channel field vibration transmitter belonging to the MMS3000 monitoring platform. It acquires casing absolute vibration signals via seismic sensors and converts vibration velocity data into standardized 4–20 mA signals for DCS or historian systems.

Each channel operates independently and supports sensor cable fault detection. Engineers can set independent vibration alarm thresholds for two bearing positions. The sealed IP65 enclosure allows direct installation near turbomachinery without extra control cabinet arrangement. This unit is widely used for continuous bearing vibration monitoring on turbines, compressors and large rotating motors.

Application Scenarios & Pain Points

Unplanned trips of high-speed rotating equipment often originate from undetected bearing vibration deterioration. Many power and petrochemical sites rely on field vibration transmitters to deliver continuous vibration data. If the MMS3120 unit fails, vibration monitoring will be lost, removing early warning protection for critical assets.

Typical Application Scenarios:

Thermal Power Plants – Steam turbine auxiliary equipment

Monitor bearing vibration of boiler feed pumps, induced draft fans and circulating water pumps. Early vibration alarm avoids bearing seizure and unit trip.
Oil & Gas Refineries – Centrifugal compressors

Continuous casing vibration monitoring for process compressors under variable load operating conditions.
Chemical Plants – Large blowers and screw compressors

Harsh field environments with dust and temperature fluctuation require IP65 field-mounted monitoring equipment.
Hydropower Stations – Generator units and water turbine auxiliary pumps

Track long-term vibration trends for predictive maintenance planning.
Steel & Metallurgy – Large exhaust fans and rotary kiln driving motors

Prevent sudden mechanical failure during continuous production cycles.

Onsite Case Reference

Last spring, a 2×300MW thermal power plant found one MMS3120 transmitter lost signal on a boiler feed pump bearing. No vibration data could be sent to the control room.

Official Emerson supply lead time reached 8 weeks. Operators could not run the pump without vibration monitoring protection.

Our stocked MMS3120/022-000 9100-03047-01 completed full bench testing and shipped within 3 working days. Maintenance technicians finished replacement and parameter calibration during planned shutdown. All vibration signals returned normal after commissioning. The site later added two identical transmitters to critical spare inventory.

Compatibility & Replacement Matrix

MMS3120/022-000 → MMS3120/022-000 : Direct replacement. Confirm sensor type (PR9268 seismic sensor) and configuration parameters before installation.

MMS3120/022-000 → MMS3120/122-000 : Not plug-and-play; different output configuration, requires parameter rework.

MMS3120/022-000 → MMS3200 series transmitters : Hardware architecture difference, cannot direct swap.

⚠️ Important reminder: Record original configuration ranges, alarm thresholds and sensor model before purchasing replacements. Incorrect setup will cause false alarms or missing protection.

Quality Control Procedure (Transparent Testing Standard)

Incoming Inspection

Serial number and label verification, visual inspection of housing, connectors and PCB. Check for traces of disassembly, corrosion or physical damage.
Bench Functional Live Test

Test platform: EPRO MMS3000 test bench with PR9268 simulator.

Test items: Power-on initialization, dual channel signal simulation, 4–20mA output verification, relay alarm trigger test, continuous 24-hour ageing run. Formal test report available upon request.
Electrical Parameter Test

Output linearity test, load resistance test, open/short circuit sensor fault simulation test.
Configuration Archive

Record factory hardware revision; photograph nameplate and connector layout for archive.
Final QC & Packaging

Inspector confirmation, sealed in anti-static bag, wrapped with bubble film and export carton. Attached QC Passed label with testing date. Testing photos or video can be provided to customers.

Field Installation Pitfall Guide

Incorrect Sensor Type Matching

Common mistake: Mixing seismic sensors and eddy current probes. MMS3120/022-000 only supports PR9268 series velocity sensors.

Advice: Confirm sensor model on site before ordering transmitters.

Case I met: A chemical plant installed eddy probes to this transmitter; no valid vibration signal could be captured after wiring.
Lost Original Configuration Parameters

New transmitter restores factory default settings. Alarm thresholds and measuring ranges will not match site requirements.

Advice: Export and back up configuration parameters from the working unit before replacement.
Improper Field Grounding

Noise interference will lead to unstable 4–20mA signal reading.

Advice: Follow EPRO manual; single-point grounding for transmitter housing and signal shield cable.
Ignoring IP Enclosure Sealing

If the seal gasket is damaged during installation, moisture ingress will cause internal circuit corrosion.

Advice: Check gasket integrity every time the enclosure cover is opened.
ESD Damage Risk

Internal signal processing circuits are sensitive to static electricity. Dry winter environments increase failure risk.

Advice: Wear ESD wrist strap connected to equipment ground during opening housing and wiring.
