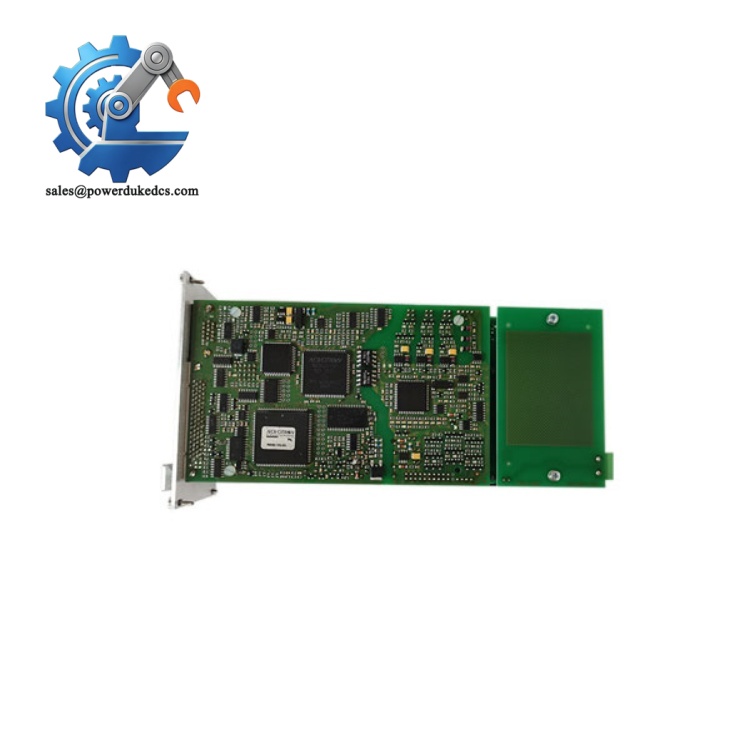

- Novotron ND32-5610VS-001-000-00 | German Original Servo Converter Spare Unit
Product Core Brief
- Model: ND32-5610, Full Order Code: ND32-5610VS-001-000-00
- Brand: Novotron (Germany)
- Series: NOVODRIVE ND32 Servo Converter Platform
- Core Function: Digital servo converter for high-precision control of AC synchronous servo motors
- Type: Single-axis Servo Drive / Servo Converter
- Key Specs: 3-phase 400 VAC Input | Rated 10 A Motor Current | Vector control, Position/Speed/Torque Mode
- Condition: New Surplus, non-refurbished
⚠️ Obsolete original production model; limited available inventory. Suffix code defines hardware interface configuration.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Full Part Number | ND32-5610VS-001-000-00 |
| Platform | NOVODRIVE ND32 Series Servo Converter |
| Main Power Input | 3 AC 400 VAC ±10 %, 50 / 60 Hz |
| Control Supply | External 24 V DC ±15 %, 1 A |
| Rated Motor Current | 10 A (effective) |
| Peak Motor Current | 20 A |
| DC Link Nominal Voltage | 560 V DC |
| Overvoltage Shutdown Threshold | 720 V DC |
| Undervoltage Shutdown Threshold | 200 V DC |
| Control Modes | Torque control, speed control, position control |
| Supported Motors | AC synchronous servo motors, linear motors |
| Inverter Switching Frequency | 4.9 kHz |
| Enclosure Protection Class | IP20 (cabinet installation only) |
| Operating Temperature | 0 °C ~ +45 °C (full continuous load) |
| Storage Temperature | -25 °C ~ +70 °C |
| Humidity | 5%–85 %, non-condensing |
| Mounting | Vertical rack / cabinet wall mounting |
| Pre-Shipment Test | Complete live bench functional testing |
Novotron ND32-5610VS-001-000-00
Product Introduction
Application Scenarios & Pain Points
- CNC Machine Tools – Feed axis servo control
Precision positioning for milling, cutting and automated tool change; position loop stability directly affects workpiece quality.
- High-Speed Packaging Machinery – Multi-axis synchronized motion
Labeling, filling and cartoning equipment relies on fast-response servo drives; any axis fault stops the whole production line.
- Printing & Converting Equipment – Web tension control
Continuous material processing requires stable speed and torque control to avoid material waste.
- Automated Gantry & Handling Systems – Pick-and-place motion
Demands repeatable positioning and fast dynamic response for logistics automation.
A printing equipment manufacturer in Jiangsu faced sudden axis fault last quarter. On-site troubleshooting confirmed hardware failure on ND32-5610VS-001-000-00. Official German lead time was 12 weeks. The production line was scheduled for continuous order processing; weeks of shutdown would cause heavy order delay penalties.
The engineering team purchased bench-tested spare drive from our inventory. Before disconnecting the faulty unit, technicians backed up all drive parameter sets and recorded encoder wiring definitions. After hardware replacement, parameter restoration and loop tuning were finished within one working shift. The printing line resumed stable operation.
Compatibility & Replacement Matrix
ND32-5610VS-001-000-00 → ND32-5605VS variants : Not interchangeable; lower rated current, different power stage
ND32-5610VS-001-000-00 → ND32-5620VS variants : Not direct swap; higher output current, different thermal design
ND32-5610VS-001-000-00 → ND40 Series Servo Drives : Functionally equivalent performance, requires full machine re-commissioning, not plug-and-play
Quality Control SOP
- Incoming Inspection
Serial number record, complete visual inspection. Check power terminals, PCB for burn marks, corrosion or traces of prior repair.
- Live Bench Functional Test
Build ND32 test bench with load simulator. Verify power startup, fault detection, speed/position loop response. Continuous 24-hour energized soak test.
- Electrical Performance Test
Insulation resistance test at 500 V DC; continuity check for all power and signal terminals.
- Documentation Retention
Record drive serial number, hardware suffix code, test logs; test photos can be provided upon request.
- Final Packing
ESD anti-static sealed packaging, bubble cushion protection, attached QC Pass inspection label.
Field Installation Pitfall Guide
VS suffix string (001-000-00) defines feedback interfaces and onboard options. Different suffix versions cannot be directly swapped; mismatched hardware leads to encoder communication failure. I have seen customers order ND32-5610 without full suffix, resulting in one week of installation delay.
❗ Full Parameter Backup Required
All motion loop gains, motor data and encoder configuration are stored locally on the drive. Always export parameter files before removing faulty hardware. Manual parameter entry easily creates unstable motion or machine collision risks.
❗ ESD Protection
Internal control PCB and feedback circuits are static sensitive. Wear anti-static wristband during disassembly and wiring, especially in dry environments.
❗ Power Wiring Separation
Separate high-power motor cables from low-voltage encoder and command wiring to reduce EMI interference. Improper cable routing causes position drift and random drive alarms.
❗ Cooling Clearance
The drive must be mounted vertically. Maintain sufficient top and bottom clearance for heatsink airflow. Poor ventilation triggers frequent over-temperature trips under continuous load.
