Reliance WR-D4007 | Industrial Control Rack Power Supply Module

Product Core Brief

Model: WR-D4007
Brand: Reliance Electric (Baldor / Rockwell Automation legacy)
Series: PSC5000 / PSC7000 Control System
Core Function: Rack power supply delivering stabilized DC voltage to system control boards
Type: Rack Mount Power Supply Module
Key Specs: 85–132 VAC input | 24 VDC regulated output | 5 A maximum output current

⚠️ Permanently discontinued by OEM, limited surplus inventory

Condition: New Surplus, not refurbished

Key Technical Specifications

Parameter	Specification
Full Part Number	WR-D4007
Compatible Rack System	Reliance PSC5000, PSC7000 Control Rack
Input Voltage	85 VAC ~ 132 VAC
Output Rating	24 VDC, 5 A continuous
Form Factor	Standard rack plug-in module
Cooling	Convection cooling
Operating Temperature	0 ℃ ~ +60 ℃
Storage Temperature	-40 ℃ ~ +85 ℃
Relative Humidity	5% – 95%, non-condensing
OEM Status	End-of-production legacy spare part
Protection	Overvoltage, overcurrent, short-circuit internal protection
Mounting	Hot-pluggable rack slot installation

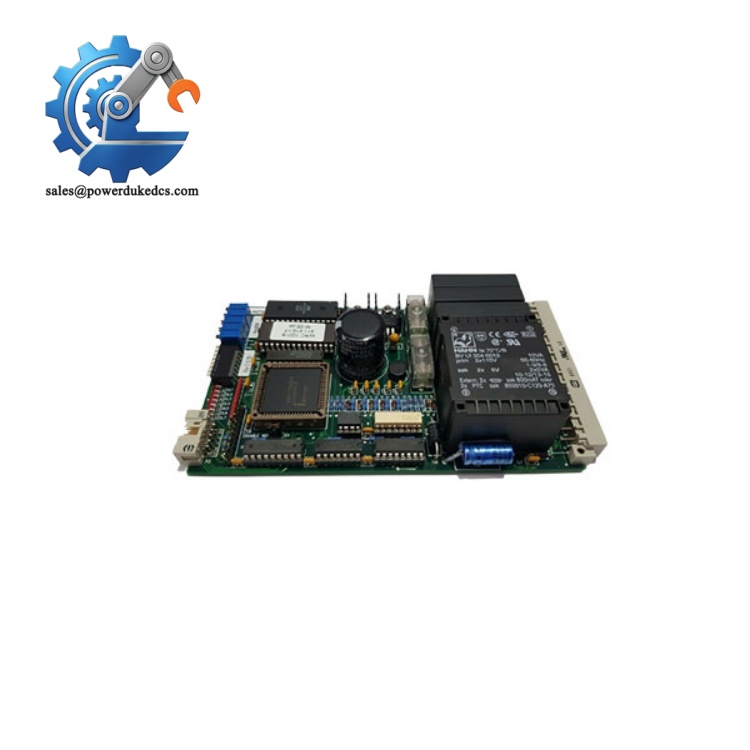

Reliance WR-D4007

Product Introduction

Reliance WR-D4007 is a plug-in rack power supply designed exclusively for Reliance PSC5000 and PSC7000 automation control racks. It converts AC mains input into stable 24 VDC regulated power for all CPU, I/O and communication modules inside the rack.

Built with built-in over-current and short-circuit protection, this unit ensures steady power delivery for continuous process control. Many legacy production lines still rely on this hardware; any power supply failure leads to full rack shutdown. No modern equivalent module serves as a direct drop-in replacement without cabinet and wiring modification.

Application Scenarios & Pain Points

Metal processing lines, paper mills, material handling systems and legacy pumping stations worldwide continue running Reliance PSC series control racks. If WR-D4007 fails, the entire control rack loses power, triggering production halt and equipment interlock trips. Original manufacturer channels cannot provide short lead-time replacements. System migration requires rewriting control logic and rack reconstruction, which brings long downtime risks.

Typical Application Scenarios:

Metal Rolling & Metal Processing Lines

Main rack power supply for speed control and material positioning automation systems. Unplanned power loss stops rolling mill operation.
Pulp & Paper Manufacturing Plants

Process control racks for paper drying, winding and thickness regulation equipment. Continuous production cannot tolerate extended outages.
Bulk Material Conveying Systems

Mining and port conveyor interlock control, where rack shutdown triggers emergency stop of all transport equipment.
Water & Wastewater Pumping Stations

Legacy pump control systems using Reliance PSC7000 racks for valve and pump sequence control.
Automotive Assembly Machinery

Older stamping and press automation equipment equipped with Reliance control hardware.

Field Case: Metal Processing Mill Emergency Repair

A steel processing plant encountered sudden shutdown after internal failure of the WR-D4007 power supply module. The whole PSC7000 control rack powered down, halting the rolling production line.

Contacting the OEM confirmed end-of-life status; alternative hardware migration would require minimum 10 days of modification and commissioning. The mill could not accept such long production interruption.

The maintenance team sourced surplus WR-D4007 from us. We completed full power load testing, input/output voltage verification and protection circuit bench validation before dispatch. After installation, the rack powered up normally, all control modules initialized without adjustment. The plant purchased an extra spare module to prevent future unplanned downtime.

Compatibility & Replacement Matrix

WR-D4007 → WR-D4007 : Direct replacement

Notes: Confirm rack backplane version; check AC input wiring before power-up.

Other Reliance power modules (WR-D series alternate models): Different output ratings and pin definitions, cannot direct swap.

Modern third-party power supplies: Cannot plug into the original rack backplane; requires wiring redesign and space rearrangement.

Quality Control Process

Inbound Inspection

Check serial number and front panel labeling. Visual PCB inspection for capacitor bulging, corrosion, burn marks or component rework.
ESD Controlled Operation

All testing performed on anti-static workbench with ESD wrist strap to protect internal power semiconductors.
Bench Functional Test

Install module into test rack. Complete power-on test, no-load voltage test, full load output testing, short-circuit protection verification. Formal test report generated upon passing.
Configuration Documentation

Capture hardware photos and record measured output voltage data for customer reference.
Continuity & Insulation Test

Detect internal short circuits and degraded power circuits.
Final QC & Packaging

QC inspector confirms all test items passed. Module sealed inside anti-static bag, wrapped with bubble film and packed into export carton, attached with QC Passed label. Test photos or videos can be provided on request.

Field Replacement Pitfall Guide

AC Input Voltage Mismatch

This unit supports only 85–132 VAC input. Applying 220/240 VAC directly will instantly destroy the power supply.

Advice: Measure field supply voltage before wiring. I have seen multiple units damaged due to incorrect mains connection.
Aging Backplane Contacts

Legacy racks often have oxidized gold-plated slot contacts. Clean contact surfaces before inserting the new module to avoid unstable power delivery.
Overload Risk

The maximum rated output is 5 A. Calculate total rack module power consumption. Adding extra I/O boards may exceed power supply capacity.
Capacitor Thermal Aging Risk

This is legacy hardware. Even surplus units have aging electrolytic capacitors. Preventive load testing is critical before installation.
Electrostatic Discharge Risk

Internal control circuits are sensitive to static. Wear ESD protection during handling.

Real lesson: One maintenance technician touched circuit boards without grounding, resulting in internal auxiliary circuit damage.
Post-installation Validation

After replacement, run continuous soak testing for minimum 6 hours. Monitor output voltage under normal operating load and confirm no abnormal temperature rise before returning to production.
