Vibro-Meter VM600 IOC16T | Galvanically Isolated Interface Module for Turbine & Compressor CMS

Product Core Brief

Model: VM600 IOC16T (200-565-000-013 / 200-565-101-013)
Brand: Vibro-Meter (Meggitt Sensing)
Series: VM600 Machinery Protection & Condition Monitoring System
Core Function: Collect field process signals and realise data interaction between monitoring cards and rack backplane
Type: Process Input/Output Interface Module
Key Specs: 16 configurable channels; 24-bit ADC sampling; 2500 Vrms galvanic isolation
Condition: New Surplus, non-refurbished

⚠️ Notice: Original production discontinued, available inventory limited. 200-565-000-013 and 200-565-101-013 are different hardware revisions; confirm revision before replacement.

Product Introduction

Unexpected trips on rotating equipment often come from unstable signal acquisition. The Vibro-Meter VM600 IOC16T serves as the core signal interface inside VM600 racks, responsible for transmitting sensor signals to main monitoring boards. It works alongside vibration measurement modules to build complete machinery protection systems.

Compared with older IOC series modules for VM600 racks, IOC16T upgrades isolation performance and signal linearity. It supports multiple signal types including vibration, temperature and speed pulses. The two part numbers represent separate hardware revisions. Field engineers must match the original module revision to avoid communication breakdown after swapping. This module has decades of operational records on steam turbines, gas turbines and large compressors in power and petrochemical plants.

Key Technical Specifications

Item	Parameter
Full Model Codes	200-565-000-013, 200-565-101-013
Channel Quantity	16 configurable process I/O channels
Sampling Resolution	24-bit ADC
Isolation Strength	2500 Vrms galvanic isolation per channel
Backplane Interface	VM600 internal VME bus
Supported Signals	Vibration, temperature, tachometer pulse, 4–20 mA analog
Operating Voltage	24 VDC, powered by VM600 rack power supply
Operating Temperature	-20 °C ~ +60 °C
Storage Temperature	-25 °C ~ +70 °C
Installation Method	Standard VM600 rack slot mounting
Protection Class	IP20, suitable for indoor control cabinet
Compatible System	VM600 machinery protection rack, matched with VibroSight software
Certifications	CE, UL, RoHS

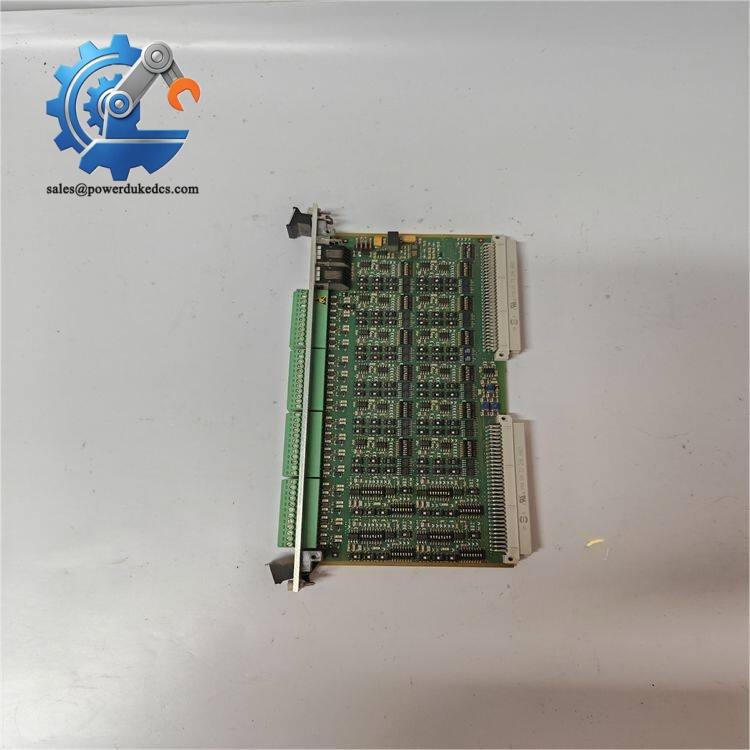

Vibro-Meter VM600 IOC16T

QC Testing SOP for VM600 IOC16T

Warehouse Incoming Inspection

Verify serial number and part number consistency against factory packing documents. Inspect circuit board for corrosion, scratch marks and rework traces. Check front connectors and terminal accessories for completeness.
Live Bench Test

The test platform adopts original VM600 rack and matched monitoring modules. Complete power-on self-test; execute backplane communication handshake; simulate multi-type signal input for continuous 24-hour aging testing. We can supply test photos or video files upon customer request.
Electrical Performance Test

Complete insulation resistance test with Fluke 115 multimeter. Verify isolation index meets factory standard. Confirm stable signal sampling under normal working voltage range.
Firmware & Hardware Revision Recording

Read and record internal firmware version and hardware revision label. Keep the original factory configuration intact before delivery. If firmware adjustment is required, we confirm parameters with clients in advance.
Final Packaging Inspection

Place module into anti-static sealed bag, wrap with bubble film and pack into export carton. Attach QC passed label with inspection date.

Field Installation Pitfall Guide

❗ Hardware Revision Mismatch

200-565-000-013 and 200-565-101-013 cannot be swapped blindly. One maintenance case showed that direct replacement with unmatched revision triggered constant rack alarm and signal loss. Record the full part number printed on the original module before purchasing.

❗ Backplane Contact Failure

Dirty gold fingers will lead to intermittent communication faults. Do not wipe the circuit board contacts with rough paper. Use anti-static cleaning swabs when necessary. Power off the whole rack before plugging or pulling the module.

❗ ESD Damage Risk

Internal ADC chips are sensitive to static electricity. Wear anti-static wrist straps during disassembly and replacement. Equipment rooms with low humidity in winter have higher risk of static breakdown.

❗ Signal Wiring Classification

Separate vibration sensor cables and power cables inside cabinets. Wrong wiring layout introduces interference and causes signal jitter. Follow the official VM600 wiring specification for shield grounding.

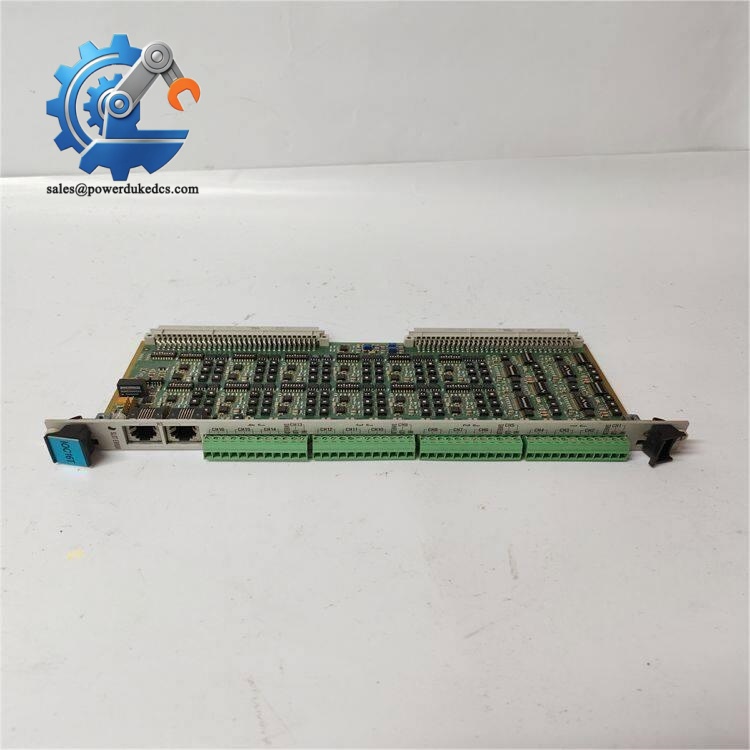

Vibro-Meter VM600 IOC16T

Quick Conclusions

VM600 IOC16T is dedicated signal interface module for Vibro-Meter VM600 machinery monitoring racks, widely used on turbines and compressors.
Two part numbers correspond to different hardware revisions. Cross-replacement without verification may cause system alarms.
All stocked modules pass continuous signal acquisition aging testing before shipment.
Original manufacturing stopped. Stock quantity fluctuates; confirm availability before placing formal order.
Not compatible with third-party vibration monitoring racks without dedicated adaptation settings.

FAQ

Can I directly use 200-565-101-013 to replace old 200-565-000-013?

Direct replacement is not guaranteed. Check the firmware version of your existing rack and confirm compatibility with us in advance.
Can you provide firmware upgrade service?

Yes. Submit your target version requirements after order confirmation.
What warranty term is offered?

Standard 12-month warranty calculated from delivery date.
Can test videos be provided before shipment?

We support power-on communication and signal simulation test recording for customer confirmation.
