Pacific Scientific SCE903A3-002-01 | OEM SCE900 Motion Controller, No Communication Option Card Installed

Product Core Brief

Model: SCE903A3-002-01
Brand: Pacific Scientific (Danaher / Kollmorgen)
Series: SCE900 Digital Servo Drive Family
Core Function: Single-axis closed-loop driver for resolver-based 3-phase brushless servo motors
Type: Digital Servo Drive / Servo Amplifier
Key Specs: 3.75 A continuous /7.5 A peak (25°C convection cooling) | Analog ±10V command interface | Resolver feedback
Condition Note: OEM discontinued production; available as bench-tested surplus & refurbished units, factory new production unavailable

Key Technical Specifications

Parameter	Specification
Full Part Number	SCE903A3-002-01
Product Family	SCE900 Series Digital Servo Drive
Supported Motor	3-phase brushless permanent magnet motor with resolver feedback
Continuous Output Current	3.75 A RMS (25°C, convection cooling)
Peak Output Current	7.5 A RMS
Input Power	90–264 VAC, Single Phase, 47–63 Hz
Control Loop	DSP-based current, velocity, position triple closed loop
Command Interface	Standard ±10V differential analog command; Step/Direction input
Feedback Type	Digital Resolver-to-Digital (DRDC) converter
Option Card Configuration	No communication option card installed (base unit)
Built-in Functions	Auto-tuning, electronic gearing, regenerative braking control
Protection Functions	Overcurrent, overvoltage, undervoltage, overheat, motor PTC thermal fault
Operating Temperature	0 °C ~ +50 °C
Enclosure Rating	IP20, cabinet mounting
Standard Firmware	Factory base servo software

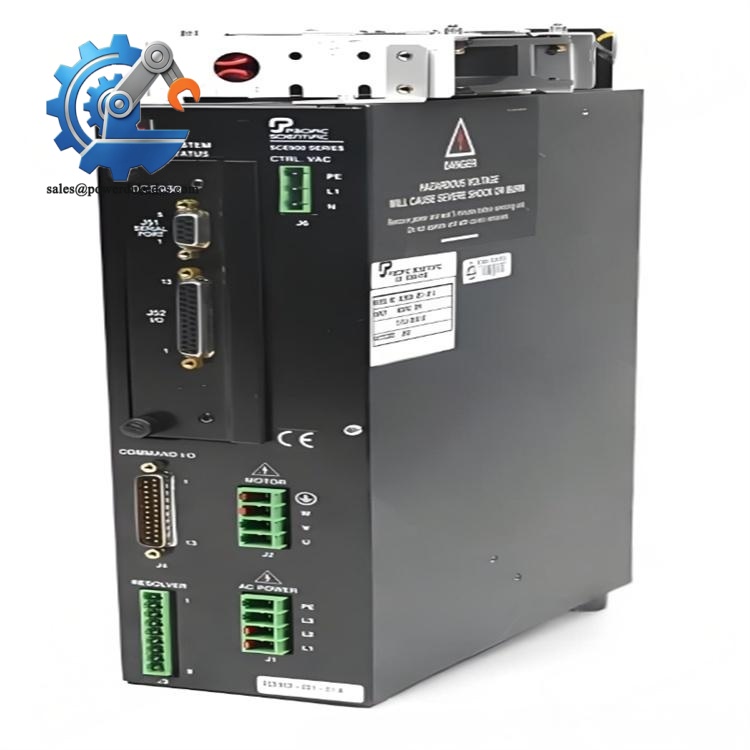

Pacific Scientific SCE903A3-002-01

Product Introduction

Pacific Scientific SCE903A3-002-01 is a single-axis DSP digital servo drive belonging to the SCE900 platform. It drives resolver-equipped brushless servo motors and executes high-precision torque, speed and position closed-loop motion control.

This base version comes without additional communication option cards and relies on analog or step/direction signals for motion commands. It supports automatic system tuning to shorten commissioning work. Widely adopted on legacy automated machinery, it is a critical maintenance spare for production lines that cannot afford full machine upgrade.

Application Scenarios & Pain Points

Unexpected servo drive failures trigger immediate machine shutdown. Many older automation machines still rely on SCE900 series drives, and long OEM lead times will cause extended production loss. Many factories ignore stocking spare drives until faults occur.

Typical Application Scenarios:

Automated Assembly Machinery – Multi-axis positioning, material handling and press positioning
CNC Special Machine Tools – Feeding axis, rotary indexing and auxiliary servo positioning
Textile Processing Equipment – Precision winding, tension control and fabric cutting axes
Packaging Machinery – Carton forming, filling and high-speed indexing conveying systems

Case Reference

An automotive component assembly factory in Jiangsu encountered sudden axis fault on its legacy assembly machine. Troubleshooting confirmed hardware failure of SCE903A3-002-01. Official manufacturer lead time exceeded 8 weeks. The procurement team sourced our pre-tested spare unit. After parameter recovery and power-on commissioning, the machine resumed normal operation within 24 hours. The plant later added two spare drives to their MRO inventory.

Compatibility & Replacement Matrix

SCE903A3-002-01 → SCE903A3-002-01 : Direct replacement; back up all motion parameters before replacement

SCE903A3-002-01 → SCE903AN-002-01 : Hardware pinout compatible; confirm firmware version consistency

SCE903A3-002-01 → SCE904 series drives : Not direct plug-and-play; higher current rating, parameter rework required

SCE903A3-002-01 → Third-party servo drives : Requires complete wiring modification, full mechanical and program adjustment

Quality Control Procedure (SOP)

Incoming Inspection

Serial number recording; visual inspection of PCB, power terminals, resolver connectors. Check for burn traces, capacitor bulging and cracked solder joints.
Bench Functional Live Test

Test platform equipped with servo motor and resolver simulator. Complete power cycle test, analog command response test, resolver feedback verification, fault alarm function test. Generate formal test report.
Electrical Parameter Testing

Continuity check of all terminals; insulation resistance test; power supply ripple measurement.
Circuit & Configuration Recording

Record hardware configuration; photograph connectors and board status for customer reference.
Final QC & Packing

QC engineer signs test report. Unit packed with anti-static shielding and bubble wrap. Test photos and reports can be provided upon request.

Field Installation Pitfall Guide

Missing Motion Parameter Backup

Fault risk: After drive replacement, all axis tuning data will be lost without backup, leading to unstable movement or servo alarms.

Tip: Export all parameters via software before removing the faulty drive. I have seen multiple machine downtimes caused by unrecovered parameters.
Resolver Wiring Misconnection

Risk: Wrong resolver wiring triggers position deviation, servo oscillation or resolver fault alarm.

Tip: Strictly follow wiring diagram; label each cable before disassembly.
ESD Damage

Risk: Static electricity damages internal DSP and resolver signal circuits.

Tip: Wear ESD wrist strap and operate on anti-static mat when opening the drive housing.
Improper Heat Dissipation

Risk: Insufficient cabinet ventilation causes overheating alarms under continuous heavy load.

Tip: Maintain cabinet air circulation; avoid stacking heat-generating devices tightly beside the servo drive.
Regenerative Energy Surge

Risk: Frequent fast deceleration without external braking resistor triggers DC bus overvoltage faults.

Tip: Check if original system uses external braking resistor; reuse matching resistance specifications during replacement.
