Description

MTL 8502-B1-DP | Genuine MTL PROFIBUS DP Slave Bus Interface Spare Part

Product Core Brief

Model: 8502-B1-DP
Brand: MTL Instruments (Eaton MTL)
Series: MTL8000 Intrinsically Safe I/O System
Core Function: PROFIBUS DP Bus Interface Module (BIM), gateway between backplane I/O and DP host
Type: Bus Interface Communication Module
Key Specs: PROFIBUS-DP Slave | Max 24 connected I/O modules | ATEX / IECEx hazardous area certified
Condition Note: Available as new surplus; refurbished units will be marked separately

⚠️ Original manufacturing discontinued, available inventory limited

Key Technical Specifications

Parameter	Specification
Full Part Number	8502-B1-DP
Device Role	PROFIBUS-DP Slave (EN 50170 compliant)
Supported Backplane Load	Up to 24 pieces of MTL8000 series I/O modules
Transmission Speed	9.6 kbps ~ 6 Mbps
Power Supply	Powered via MTL8000 backplane Railbus (12 V)
Typical Current Draw	420 mA; Max 520 mA
Isolation Rating	Galvanic isolation between PROFIBUS LAN, Railbus and power circuits
Protocol Functions	Cyclic I/O data exchange, extended diagnostics, HART variable transmission
Front Indicators	Power, Run, Fault, LAN Activity LED status indicators
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-40 °C ~ +85 °C
Humidity Range	5% – 95% RH, non-condensing
Hazardous Certification	ATEX, IECEx for Zone 1 intrinsically safe installations
Mechanical Mounting	Plug-in module for standard MTL8000 rack backplane
Enclosure Rating	IP20, indoor cabinet installation only

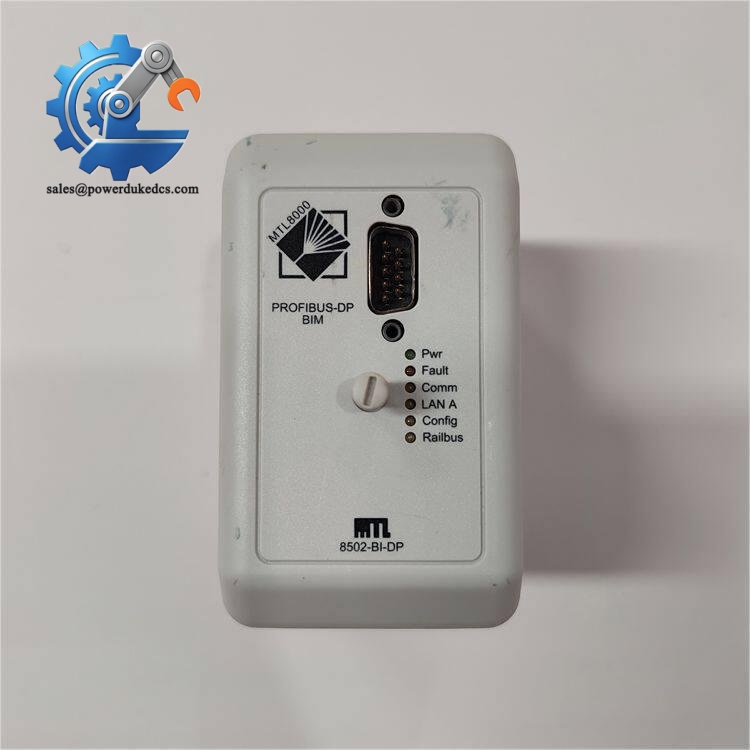

MTL 8502-B1-DP

Product Introduction

MTL 8502-B1-DP is the core Bus Interface Module designed exclusively for the MTL8000 intrinsically safe remote I/O system. It operates as a PROFIBUS-DP slave, acting as a communication bridge linking all MTL8000 I/O modules mounted on the rack backplane to a PROFIBUS DP master controller.

This module supports real-time cyclic data acquisition from analog and digital safety barriers, and transmits diagnostic information back to the host DCS or PLC. It is engineered for hazardous industrial environments, with full intrinsic safety certification. Built-in continuous self-diagnosis quickly detects bus faults, backplane communication errors and module abnormalities to reduce unplanned downtime. It is widely paired with Siemens S7, Yokogawa CENTUM and ABB DCS platforms for process automation.

Application Scenarios & Pain Points

Communication module failure on intrinsically safe remote I/O racks will disconnect all field transmitters and valves, triggering safety interlock actions on continuous production plants. Official OEM lead times often stretch multiple months, and extended waiting periods create process risks.

Typical application scenarios:

Petrochemical Complexes – Zone 1 Hazardous Area Remote I/O

Connect 4-20mA HART transmitters, flow and pressure sensors inside explosive classified zones to central DCS control rooms.
Onshore & Offshore Oil & Gas Facilities

Remote wellhead I/O cabinets require certified safety barrier systems; stable PROFIBUS communication is critical for production monitoring.
Chemical Batch Production Plants

Reactor safety instrument loops rely on MTL8000 I/O racks; reliable bus interface prevents loss of critical process signals.
LNG Storage & Terminal Control Systems

Low-temperature flammable medium sites mandate ATEX certified intrinsically safe I/O architecture.
Pharmaceutical Fine Chemical Factories

Classified production zones require isolated signal transmission to avoid ignition risks from field wiring.

Real Site Case

A coastal petrochemical plant encountered an 8502-B1-DP communication fault last year. The module repeatedly lost PROFIBUS DP synchronization, causing intermittent signal dropout from all field instruments connected to the rack. Official MTL delivery lead time reached 8 weeks. The maintenance team could not afford long-term degraded safety monitoring. They purchased stocked spare module from us. We completed full rack communication aging test on our MTL8000 test bench and shipped within 48 hours. Technicians replaced the module during monthly planned maintenance, and all instrument signals recovered without process interruption. The site later added two spare BIM modules to on-site MRO inventory.

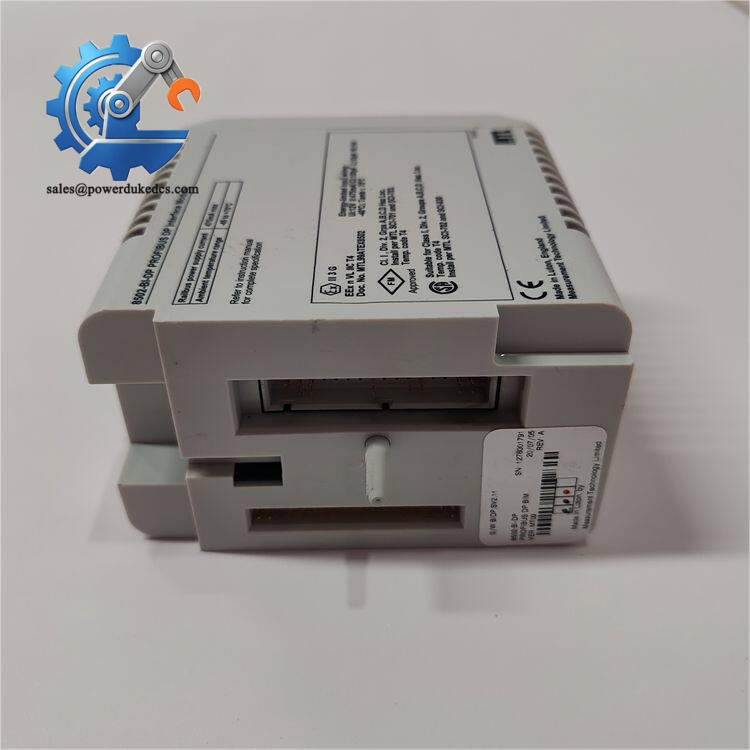

MTL 8502-B1-DP

Compatibility & Replacement Matrix

8502-B1-DP → 8502-BI-DP : Direct functional replacement. Verify firmware version and GSD file consistency before commissioning.

8502-B1-DP → 8503-B1-DP : Not interchangeable. 8503 series supports redundant PROFIBUS topology with different backplane logic.

8502-B1-DP → Other MTL bus modules (8510 series): Incompatible, designed for different fieldbus protocols.

8502-B1-DP → Non-MTL PROFIBUS adapters: Not plug-and-play; cannot connect directly to MTL8000 backplane.

Replacement reminder: Back up PROFIBUS configuration and download the matching GSD file to the DP master. Execute full channel signal verification after module swap.

Quality Control Process

Inbound Inspection

Verify serial number, original label integrity. Complete visual inspection to check PCB corrosion, connector damage or traces of prior repair. Confirm product certification marking.
Live Bench Testing

Insert module into complete MTL8000 test rack. Establish PROFIBUS DP connection with PLC master. Run continuous 24-hour aging test, validate LED indicators, cyclic data exchange and fault alarm functions. Generate formal test records.
Electrical Characteristic Test

Perform continuity and insulation testing with Fluke 115 multimeter. Simulate brief power fluctuation to verify stable communication recovery.
Firmware Record & Documentation

Read and record internal firmware revision. Capture photos of module label and front panel interface.
Final Packing

Seal module inside anti-static shielding bag, protected with bubble wrap and rigid export carton. Attach QC Passed label with inspection date. Test photos and videos can be provided upon client request.

Field Pitfall Guide

Mismatched GSD file or firmware revision

I supported a site where maintenance engineers installed a replacement 8502-B1-DP but used an outdated GSD file. The DP master could not establish data exchange, and troubleshooting consumed nearly one working day.

Tip: Always save the exact GSD version used for the original module before replacement.
Ignoring PROFIBUS bus termination rules

Missing or duplicated 120Ω bus terminator causes unstable communication, random signal loss. Only enable termination resistor at the two physical ends of the DP cable.
Skipping post-replacement full loop test

Many technicians only confirm module online status. Partial channel faults or HART pass-through abnormalities may not appear until process conditions change. Complete full instrument signal check after every swap.
Neglecting ESD protection during rack maintenance

Backplane and BIM circuits are sensitive to electrostatic discharge. Wear anti-static wrist strap before plugging or removing modules, especially in dry winter environments.
Mixing different generations of MTL8000 I/O modules on one rack

Older I/O hardware may have compatibility limits with newer 8502-B1-DP firmware. Confirm full rack component compatibility before ordering spare units.
