Description
Product Core Brief
- Model: REF615E_E HBFEAEAGABCCANC11E
- Brand: ABB
- Series: Relion® 615 Series
- Core Function: Executes full protection, control and supervision for medium voltage feeders
- Type: Feeder Protection and Control IED
- Key Specs: IEC 61850 Ed.2 compliant; supports GOOSE peer-to-peer communication; compact 4U cabinet size
- Condition: New Original, factory sealed, non-refurbished
Product Introduction
Unplanned feeder trips in medium voltage distribution networks trigger costly production downtime and grid instability. The ABB REF615E_E HBFEAEAGABCCANC11E solves this pain point with integrated protection and control capabilities tailored for industrial and utility power systems. It adapts to radial, looped and meshed networks, even sites with distributed generation access.
As a core member of the Relion 615 series, this IED delivers stable cycle response and precise fault judgment for daily grid operation. It supports full IEC 61850 Edition 2 protocols, enabling seamless peer-to-peer GOOSE communication between substation devices. Field data shows its mean time between failures exceeds 50,000 hours, ensuring long-term reliable operation in harsh industrial power distribution environments. This unit simplifies cabinet layout with its withdrawable modular design and cuts on-site maintenance workload significantly.
Key Technical Specifications
| Parameter Item | Technical Data |
|---|---|
| Product Series | ABB Relion® 615 Series |
| Application Scope | Medium voltage feeder overhead lines & cable feeders |
| Communication Standard | IEC 61850 Edition 2, GOOSE peer-to-peer communication |
| Hardware Dimension | 4U standard cabinet height, depth ≤ 160 mm (flush mounting) |
| Binary I/O Capacity | Max 18 binary inputs, 13 binary outputs |
| Analog Input Support | Up to 9 analog inputs for conventional transformers and sensors |
| Core Protection Functions | Overcurrent protection, earth fault protection, circuit breaker supervision |
| Monitoring Functions | Disturbance recording, event logging, fuse failure supervision |
| Display Type | Full graphic display / text display optional |
| MTBF | > 50,000 hours |
| Operating Temperature | -25°C to +55°C |
| Installation Type | DIN rail mounting, withdrawable modular structure |

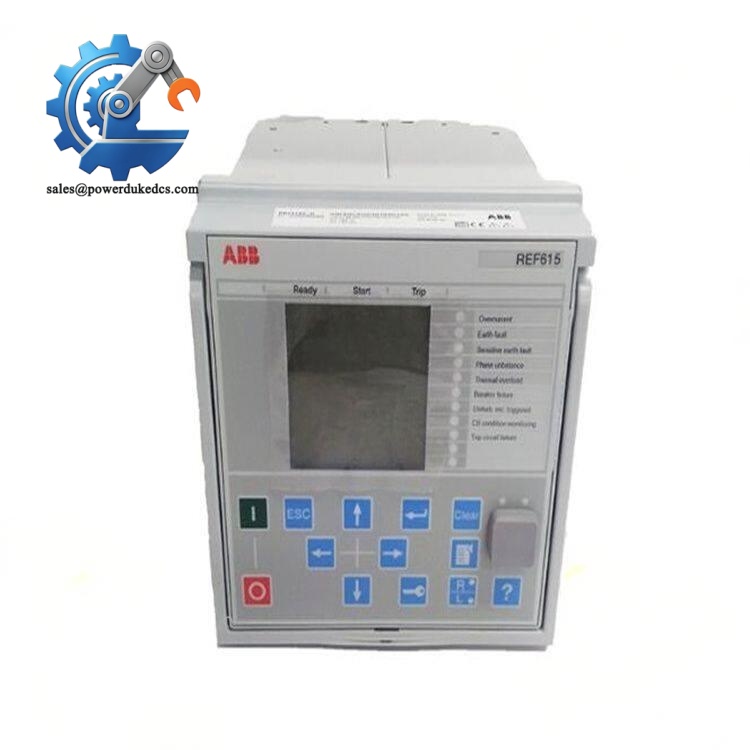

ABB REF615E_E HBFEAEAGABCCANC11E
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10 mins)
⚠️ Strict safety procedures apply before any operation.
Notify production teams of scheduled downtime and switch the entire power distribution system to safe standby status. Disconnect both main power and UPS power supplies. Wait 5 minutes to fully discharge internal capacitor residual electricity.
Prepare standard tools: ESD wrist strap, ESD mat, PH1 cross screwdriver, Fluke multimeter, marking labels and mobile phone for configuration recording.
Back up all running system programs to USB disk and cloud storage. Take clear photos of original module DIP switch positions, terminal wiring sequences and overall cabinet layout for configuration replication.
Stage 2: Old Module Removal (15 mins)
Release the front snap cover of the relay gently. Label each wire terminal number before loosening screws to avoid wiring confusion. Do not pull wires forcibly to prevent terminal pin damage.
Press the bottom DIN rail buckle with a flat screwdriver, then pull the module vertically outward to separate it from the backplane connector. Inspect backplane pins for bending or dust accumulation; clean dust with compressed air if needed.
Save all configuration stickers on the old module before removal. Never damage the cabinet guide rail structure during disassembly.
Stage 3: New Module Installation (15 mins)
Complete full ESD protection before unpacking the new ABB REF615E_E module. Verify the full model code matches the replacement requirement.
Replicate original configurations strictly via pre-taken photos. Adjust node address, baud rate and bus termination resistor settings to consistent parameters. Remember 120Ω termination resistors only apply to network bus end nodes.
Align the module with the backplane anti-misplug structure, press vertically until the buckle clicks and locks firmly. Restore wiring one by one and fasten terminal screws with 0.5 N·m standard torque.
Self-check before power-on: confirm DIP switch settings, full wiring connection, locked module buckle and no residual tools inside the cabinet.
Stage 4: Power-On & Functional Testing (30 mins)
Measure input voltage to confirm stable 24V DC ±10% power supply and no short circuit between power and ground terminals.
Power on the control cabinet first. Observe LED status indicators: steady green RUN light means normal startup; flashing red ERR light indicates abnormal system matching.
Connect ABB official configuration software to scan network devices. Verify the new module firmware version and keep consistent with the original system baseline. Download backup programs and switch the device to RUN mode after compilation completion.
Simulate feeder switching actions and test full protection logic response. Confirm stable communication linkage with SCADA and HMI systems. Maintain 30 minutes of continuous stable operation with zero alarms before finishing replacement work.

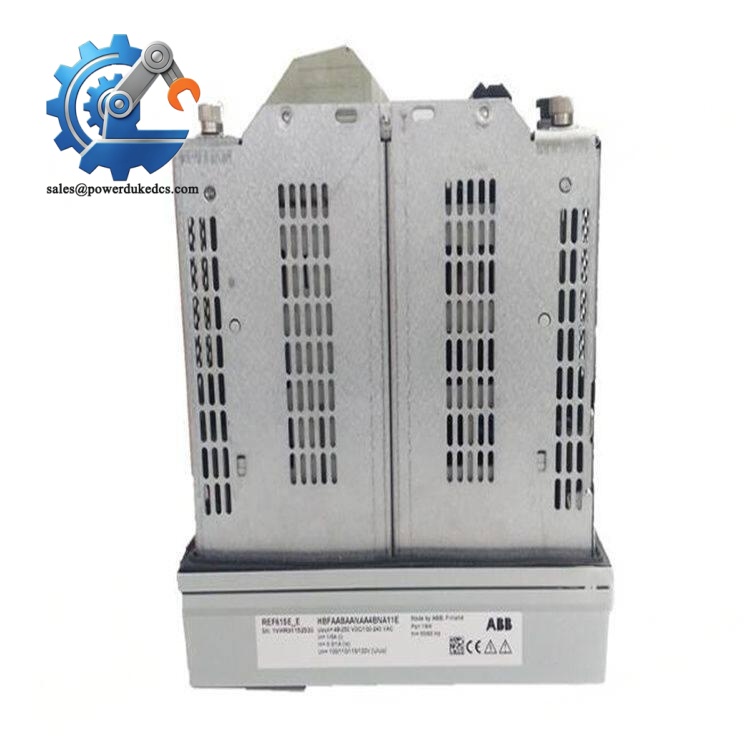

ABB REF615E_E HBFEAEAGABCCANC11E
Frequently Asked Questions (FAQ)
1. Is the ABB REF615E_E plug-and-play for old Relion 615 systems?
Basically compatible for direct replacement. Well, technically it requires firmware version matching. Mismatched firmware versions will trigger IEC 61850 communication timeout errors. We recommend providing your original device firmware version before delivery for pre-verification.
2. What network scenarios can this relay adapt to?
It fits most medium voltage distribution scenarios. This unit works for radial networks, looped networks and meshed networks, and supports grid access with distributed photovoltaic and wind power generation equipment.
3. Does this module support hot-swap operation?
No hot-swap support. The relay connects directly to the system backplane and internal power loop. Live plugging and unplugging will cause instantaneous power interruption and even burn backplane pins. Full power cutoff is mandatory for replacement.
4. What is the warranty policy for this ABB REF615E_E unit?
We provide 12 months official warranty support. All units undergo full functional testing before delivery. We can supply complete test reports and inspection videos for verification.
5. What is the main difference between REF615E_E and standard REF615?
The E-E version optimizes earth fault protection sensitivity and enhances anti-interference performance for complex industrial power environments. It expands analog input adaptability for multi-type sensor signal collection compared with standard models.
6. Can I upgrade the device firmware on site?
On-site firmware upgrading is allowed. But incorrect upgrade operations will erase original configuration data. We suggest backing up all parameters in advance or contacting our technical team for remote guidance.
