Name: Valmet D202593 | Genuine Valmet Distributed Control...
SKU: Valmet D202593
Price: 4616.00 USD
Availability: InStock

Description

Valmet D202593 | Genuine Valmet Distributed Control Interface Module

Product Core Brief

Model: D202593
Brand: Valmet
Series: Valmet DNA Automation System
Core Function: Realize data exchange between main controller and field I/O via Profibus DP bus
Type: Fieldbus Communication Module
Key Specs: Max transmission rate 12 Mbaud; Supports up to 24 I/O slaves; Operating range -20°C ~ +60°C
Condition: New Surplus, non-refurbished

⚠️ Notice: Original production discontinued, limited inventory available

Product Introduction

Unplanned shutdowns in pulp and paper mills lead to massive production losses. The Valmet D202593 serves as a vital communication gateway to avoid such risks for Valmet DNA distributed control platforms. It establishes stable Profibus DP links to connect central controllers and field equipment.

Compared with older generation communication adapters for Valmet systems, D202593 delivers higher bus bandwidth. It supports automatic baud rate detection and allows up to 24 field I/O modules on one bus segment. The compact DIN rail mounting layout simplifies cabinet reconstruction during on-site module replacement. This unit has decades of verified operation experience in papermaking, fiber processing and energy recovery plants.

Key Technical Specifications

Item	Parameter
Communication Protocol	Profibus DP
Maximum Baud Rate	12 Mbaud
Supported Field Slaves	Maximum 24 I/O modules
Operating Voltage	24 VDC
Operating Temperature	-20°C ~ +60°C
Storage Temperature	-25°C ~ +85°C
Mechanical Installation	Standard DIN rail mount
Dimensions	85 mm × 30 mm × 25 mm
Net Weight	150 g
Protection Grade	IP20 (installation inside control cabinet)
Compatible System	Valmet DNA DCS Platform

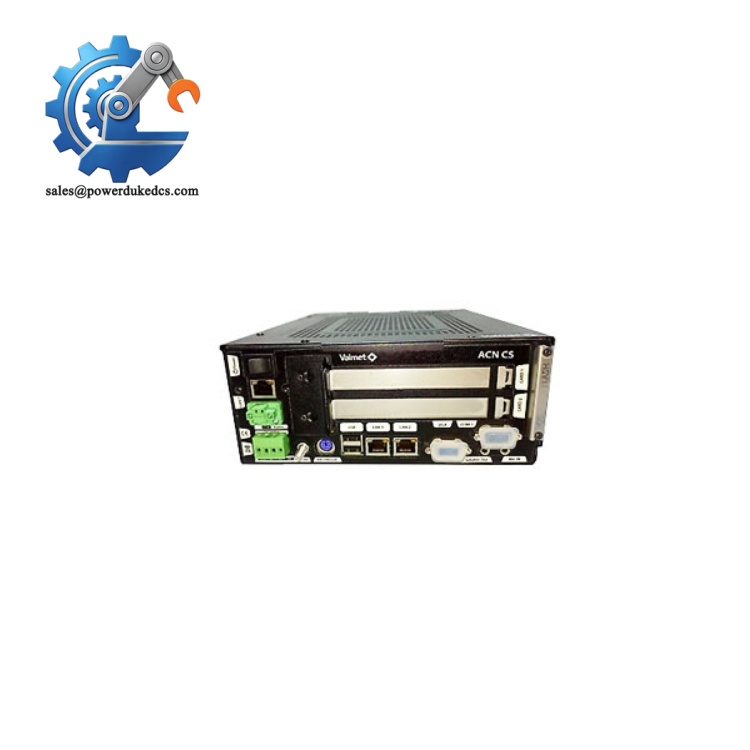

Valmet D202593

QC Testing SOP for Valmet D202593

Warehouse Incoming Inspection

Check serial number consistency against factory packing documents. Inspect housing for scratches, corrosion and aging. Verify complete accessories including mounting clips and terminal connectors.
Live Bench Test

Test rack adopts original Valmet DNA hardware. Complete power-on self-test; execute Profibus DP handshake test with simulated slave modules; run continuous 24-hour aging test and record communication stability. We can provide test photos or videos upon client request.
Electrical Performance Test

Carry out insulation resistance testing with Fluke 115 multimeter. Confirm stable input voltage acceptance within allowable deviation range.
Firmware Recording

Read and record built-in firmware version. Backup original configuration parameters. If firmware upgrade is required before delivery, we will confirm version requirements in advance.
Final Packaging Inspection

Place module into anti-static sealed bag, wrap with bubble film and pack into carton. Attach QC passed label with inspection date.

Field Installation Pitfall Guide

❗ Firmware Version Mismatch

Many maintenance engineers ignore firmware compatibility. We met one case where newly replaced D202593 failed to build bus communication. After troubleshooting, the firmware version differed from the original module. Confirm the existing module firmware version before ordering. We can adjust firmware version as requested.

❗ Profibus Terminating Resistor Misoperation

Only install 120 Ω terminating resistors at the two extreme ends of the bus. Adding resistors on intermediate nodes will trigger intermittent communication dropout. Take clear photos of original wiring layout before disassembly.

❗ ESD Damage Risk

Printed circuit boards inside the module are sensitive to static electricity. Wear anti-static wrist straps during installation. Dry winter environments see more static-induced hardware failures.

❗ Bus Cable Wiring Standard

Use dedicated Profibus shielded cable. Arrange single-end shielding grounding inside control cabinets. Dual-end grounding easily introduces interference in paper mill workshop environments.

Quick Conclusions

D202593 is a dedicated Profibus DP communication module for Valmet DNA DCS, widely used in pulp and paper factories.
Original manufacturing has stopped. Stock quantity is limited; lead time depends on available inventory.
Confirm firmware version of existing module before purchase to prevent communication faults after replacement.
All modules pass continuous communication aging testing before shipment. Test records can be provided.
Not suitable for systems outside Valmet DNA without extra protocol conversion hardware.

FAQ

Can D202593 work with third-party PLC platforms directly?

It cannot connect to non-Valmet systems directly. Additional protocol converters are needed for cross-brand communication.
Is firmware upgrade service available?

Yes. Send us your target firmware version requirement after placing an order.
How long is the warranty period?

We offer a standard 12-month warranty starting from the delivery date.
Can I get on-site test videos before shipment?

We support shooting live power-on and communication test videos for client confirmation.
