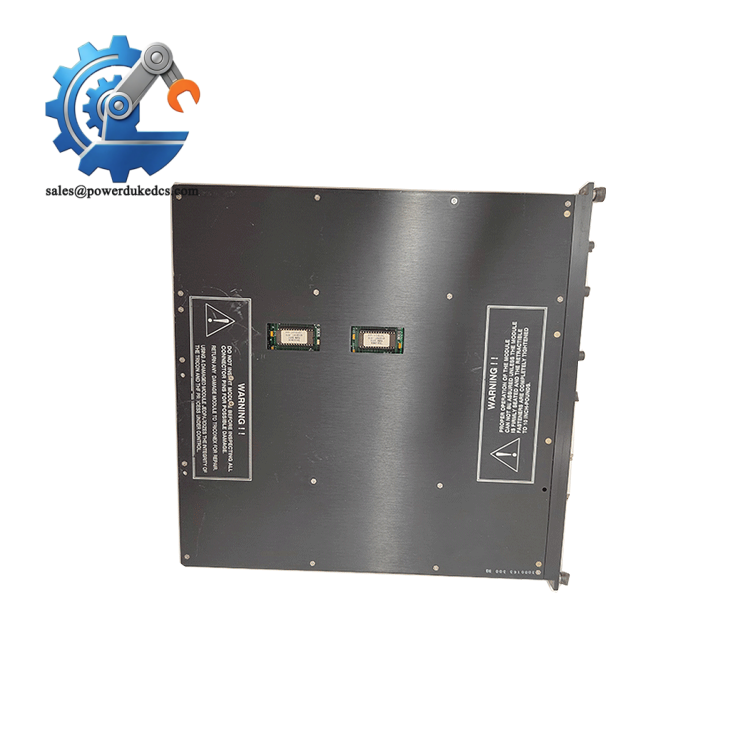

TRICONEX 4200 | Genuine Triconex Safety Control Spare Part, Long-distance I/O Extension

Product Core Brief

Model: 4200 (Full designation: RXM4200 Remote Extender Module)
Brand: TRICONEX (Schneider Electric)
Series: Tricon TMR Safety Control Platform
Core Function: TMR fiber optic remote extender, extends I/O chassis via fiber on Tricon safety bus
Type: Fiber Optic Communication Remote Extender Module
Key Specs: Triple Modular Redundant | ST fiber connectors | Max 12km single-mode transmission | SIL3 capable
Condition Note: Available as new surplus; refurbished units will be marked separately

⚠️ Original series production discontinued, remaining inventory limited

Key Technical Specifications

Parameter	Specification
Full Part Number	4200 (RXM4200)
System Architecture	Triple Modular Redundancy (TMR), consistent with Tricon platform
Optical Interface	Dual ST fiber ports, support single-mode / multi-mode fiber
Transmission Distance	Up to 12 km (single-mode fiber); up to 2 km (multi-mode fiber)
Bus Protocol	Proprietary Tricon redundant I/O safety bus
Topology Support	Master chassis connects up to 3 remote I/O slave chassis
Power Supply	24 VDC backplane power input
Onboard Diagnostics	Link status monitoring, channel fault detection, front panel LED indicators
Safety Compliance	Designed for SIL3 safety loops (IEC 61508, IEC 61511)
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-40 °C ~ +85 °C
Relative Humidity	5% – 95% RH, non-condensing
Mechanical Form	Standard Tricon rack plug-in module
EMC Performance	High immunity against electromagnetic interference for hazardous plant areas

Product Introduction

TRICONEX 4200 (RXM4200) is a TMR fiber optic remote extender designed exclusively for the Tricon safety control system. It acts as a fiber bus repeater to establish fault-tolerant communication between the main Tricon controller chassis and geographically separated remote I/O racks.

This module maintains full triple redundant signal transmission to satisfy safety system requirements. Fiber media eliminates ground loop interference and enables long-distance layout of field I/O cabinets. It supports remote installation of digital and analog I/O modules for ESD, fire & gas protection systems. Configuration and diagnostics are fully integrated within TriStation engineering software for unified system maintenance.

Application Scenarios & Pain Points

Remote extender module failure will disconnect all I/O signals on the remote chassis, disabling safety interlock functions. Since TRICONEX 4200 is end-of-life hardware, official factory lead times often extend multiple months, bringing severe safety risks for continuous process plants.

Typical application scenarios:

Onshore & Offshore Oil & Gas Facilities – ESD & F&G Systems

Remote wellhead, platform and compressor station I/O cabinets need long-distance isolation from main control room; fiber connection avoids electrical interference.
Petrochemical Refineries – Large Tank Farm Safety Loops

Tank level, pressure and fire detection signals are deployed over wide areas. Remote I/O racks connected via 4200 reduce expensive field cable routing.
LNG Terminals – Low-temperature Plant Safety Instrumented Systems

Strict separation requirements between control room and cryogenic process zones, fiber transmission meets isolation specifications.
Thermal Power Plants – Boiler & Turbine Safety Protection

Distributed burner management and emergency trip I/O cabinets use fiber extension to shorten field wiring routes.
Chemical Manufacturing Plants – High-risk Reaction Unit Safety Control

Hazardous classified zones require galvanic isolation between control equipment; fiber links eliminate spark risks from copper cables.

Real Site Case

A coastal petrochemical refinery suffered TRICONEX 4200 intermittent fiber synchronization faults last year. Periodic loss of remote I/O communication triggered safety system partial degradation alarms. Official Schneider lead time for discontinued spare hardware reached 10 weeks. The site could not operate with incomplete safety redundancy for an extended period. The maintenance team purchased stocked spare module from us. We completed Tricon rack communication simulation and continuous aging testing before delivery. Engineers performed replacement during scheduled turnaround, remote chassis communication recovered fully. The facility later ordered two spare 4200 modules for permanent MRO inventory.

Compatibility & Replacement Matrix

4200 (RXM4200) → RXM4200 hardware revisions: Direct drop-in replacement. Verify TriStation software version before commissioning.

4200 → 4200N variant: Hardware pinout differs; cannot be directly interchanged, requires project re-verification.

4200 → Tricon communication modules such as 4300, 4351: Incompatible; different communication function and bus logic.

4200 → Third-party fiber converters: Not supported. Generic fiber media converters lack TMR voting and safety bus protocol, cannot substitute safety-grade extender.

Replacement reminder: Record fiber mode setting (single/multi-mode) and remote chassis address before swapping. Execute full I/O channel safety loop test after installation per site functional safety procedures.

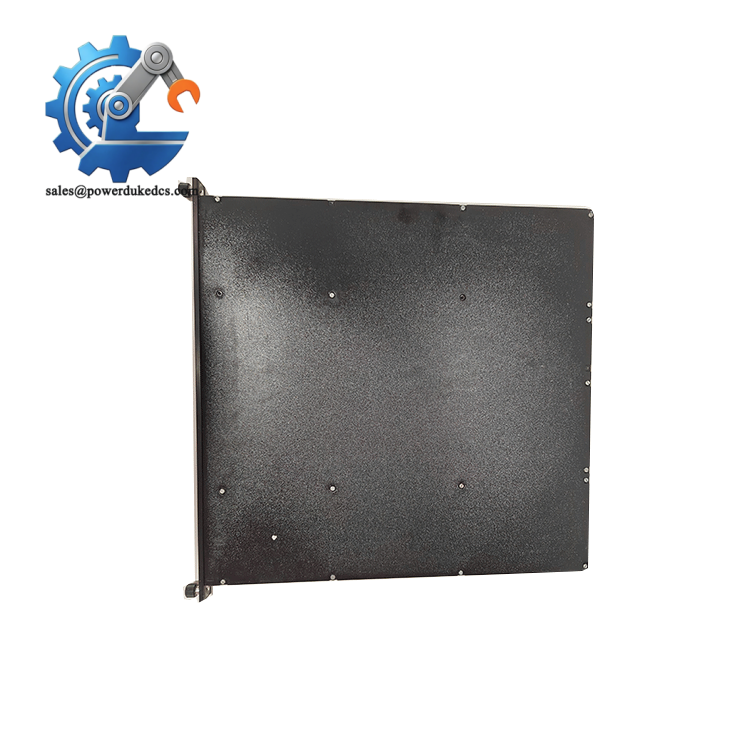

TRICONEX 4200

Quality Control Process

Inbound Inspection

Verify clear part marking TRICONEX 4200 / RXM4200. Visual inspection of front panel LED, ST fiber connectors and gold backplane edge contacts. Check PCB for corrosion, crack or disassembly traces, record serial number for traceability.
Live Bench Testing

Insert module into complete Tricon test rack. Establish redundant fiber link with matching remote chassis. Run continuous 24-hour communication aging test. Verify LED status, fault alarm response and cyclic I/O data transmission. Save test logs.
Electrical Characteristic Test

Conduct continuity and power input stability testing using Fluke 115 multimeter. Simulate power cycling to confirm automatic link recovery after power interruption.
Firmware & Configuration Documentation

Read and record onboard firmware revision. Capture front panel and fiber port photos for customer reference.
Final Packing

Seal module inside anti-static shielding bag, protected with bubble cushioning and rigid export carton. Attach QC Passed label with inspection date. Test screenshots and records can be shared upon request.

Field Pitfall Guide

Mismatched single-mode / multi-mode fiber settings

I supported a site where technicians installed a replacement 4200 without checking fiber mode configuration. The module could not establish stable link, and troubleshooting consumed more than one shift.

Tip: Always document fiber type and transceiver setting of the original unit before replacement.
Ignoring minimum bend radius of fiber cables

Over-bent fiber leads to gradual signal attenuation, causing intermittent communication dropouts that are hard to reproduce during normal inspection.
Skipping post-replacement full safety loop validation

Many engineers only confirm the remote chassis goes online. Hidden channel faults will only surface during process abnormal conditions. Complete full signal verification after every module swap.
Improper ESD protection during rack maintenance

Backplane circuits and onboard optical transceivers are sensitive to static discharge. Hidden ESD damage leads to random link failures weeks after installation. Always wear anti-static wrist strap.
Mixing different generations of Tricon chassis hardware

Older main chassis backplanes have limited compatibility with later revision 4200 modules. Confirm overall system hardware compatibility before ordering spare parts.
